Mercury 200 OptiMax Jet Drive Service Manual

Powerhead
Page 4A-32 90-8M0050731 MAY 2011

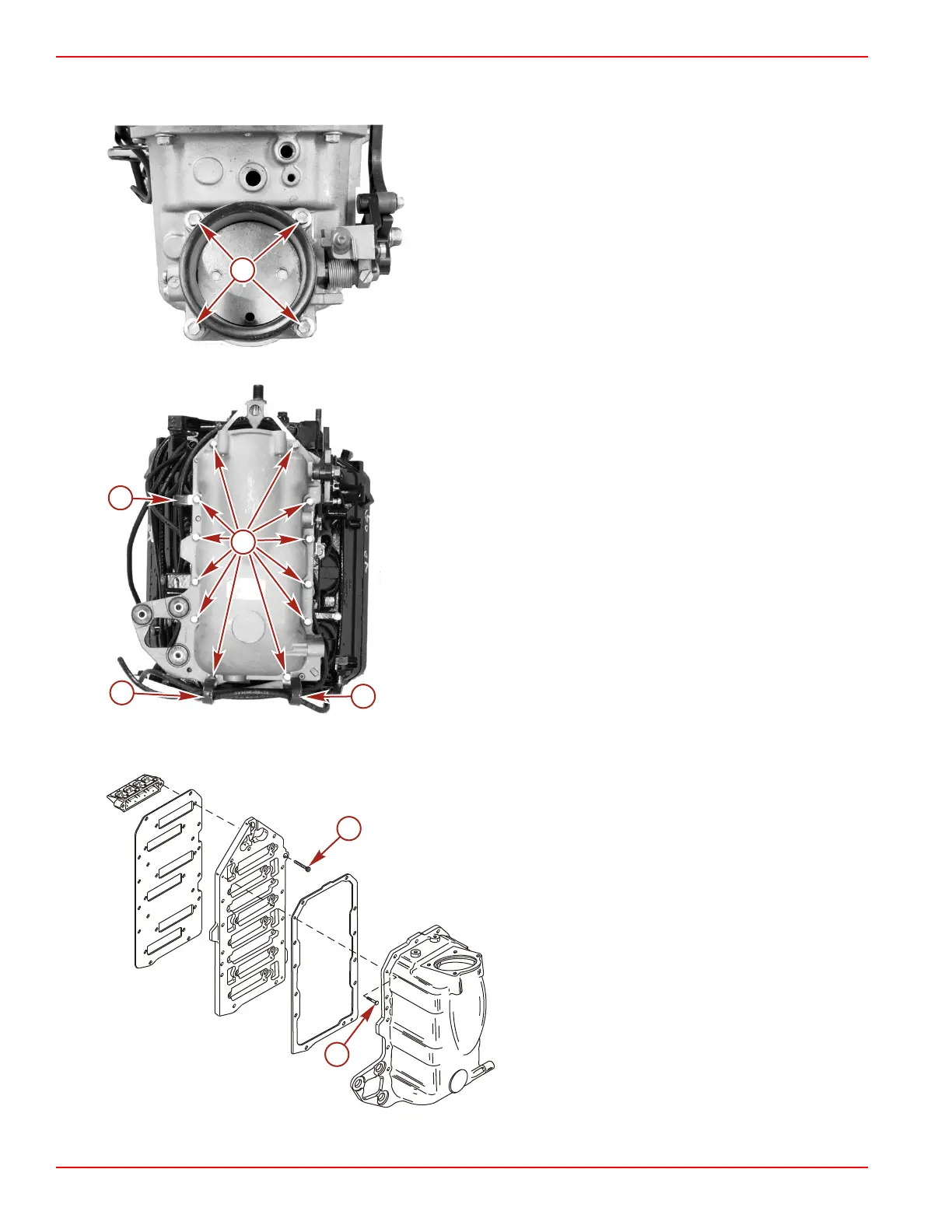

Throttle Body and Air Plenum Removal
1. Remove the four screws securing the throttle body to the plenum.
a - Screw (4)
2. Remove the 12 screws securing the air plenum to the cylinder block assembly.
a - Clamp (3)
b - Screw (12)
3. Remove the two screws securing the air plenum to the reed plate assembly.
4. Remove the 12 screws securing the reed blocks to the reed plate assembly.
a - Screw (0.250‑20 x 0.88 in.) (12)
b - Screw (M4 x 16) (2)
a
33719
a
a
a
b
33720
a
b
16044
