Direct Fuel Injection
Page 3B-12
90-8M0050731 MAY 2011

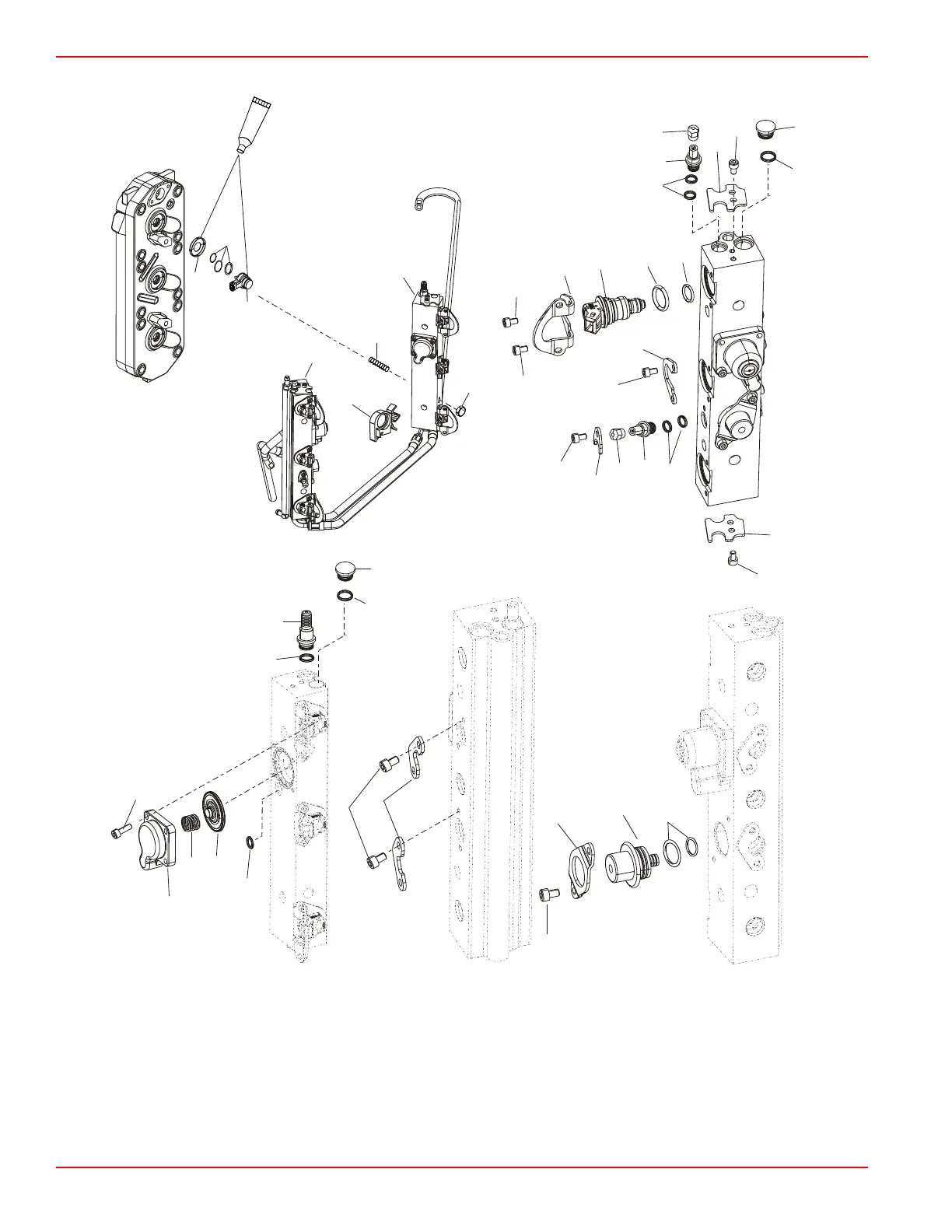

Fuel Rail Components (S/N 0T178500 and Above)
8335
1
10
6
6
18
16
15
17
19
24
23
7
3
3
25
4
4
4
4
4
4
4
4
5
14
22
1
1
31
32
8
13
10
12
9
7
5
6
6
20
21
1
27
29
30
2
28
26
174
176
