General Information
Page 1C-8 90-8M0050731 MAY 2011

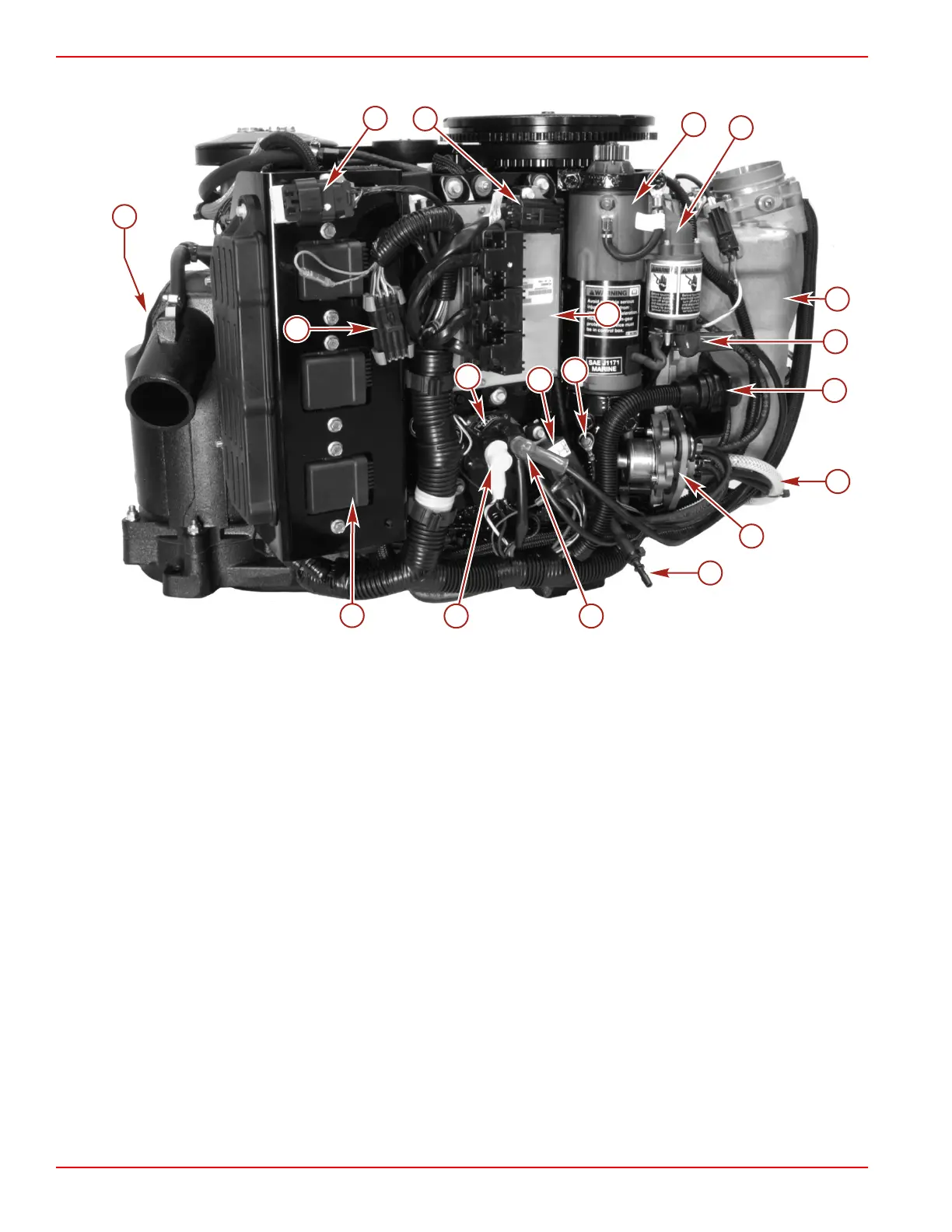

200 OptiMax SportJet Powerhead Starboard View
1 - SmartCraft connector
2 - CDS connector
3 - Starter motor
4 - Starter motor solenoid
5 - Air handler assembly
6 - Positive 12 volt cable
7 - Oil pump inlet hose
8 - Oil pump
9 - Fuel inlet hose
10 - Engine control module (ECM)
11 - Negative battery cable
12 - Main power relay
13 - Start solenoid
14 - Positive 12 volt starter cable
15 - Positive battery cable
16 - Ignition coil
17 - Oil/fuel/paddle wheel sensor connector
18 - Expansion chamber
45358
1
2
3
4
5
6
6
7
8
9
14
15
16
11
10
17
18
12
13
