Jet Installation
Page 1D-24 90-8M0050731 MAY 2011

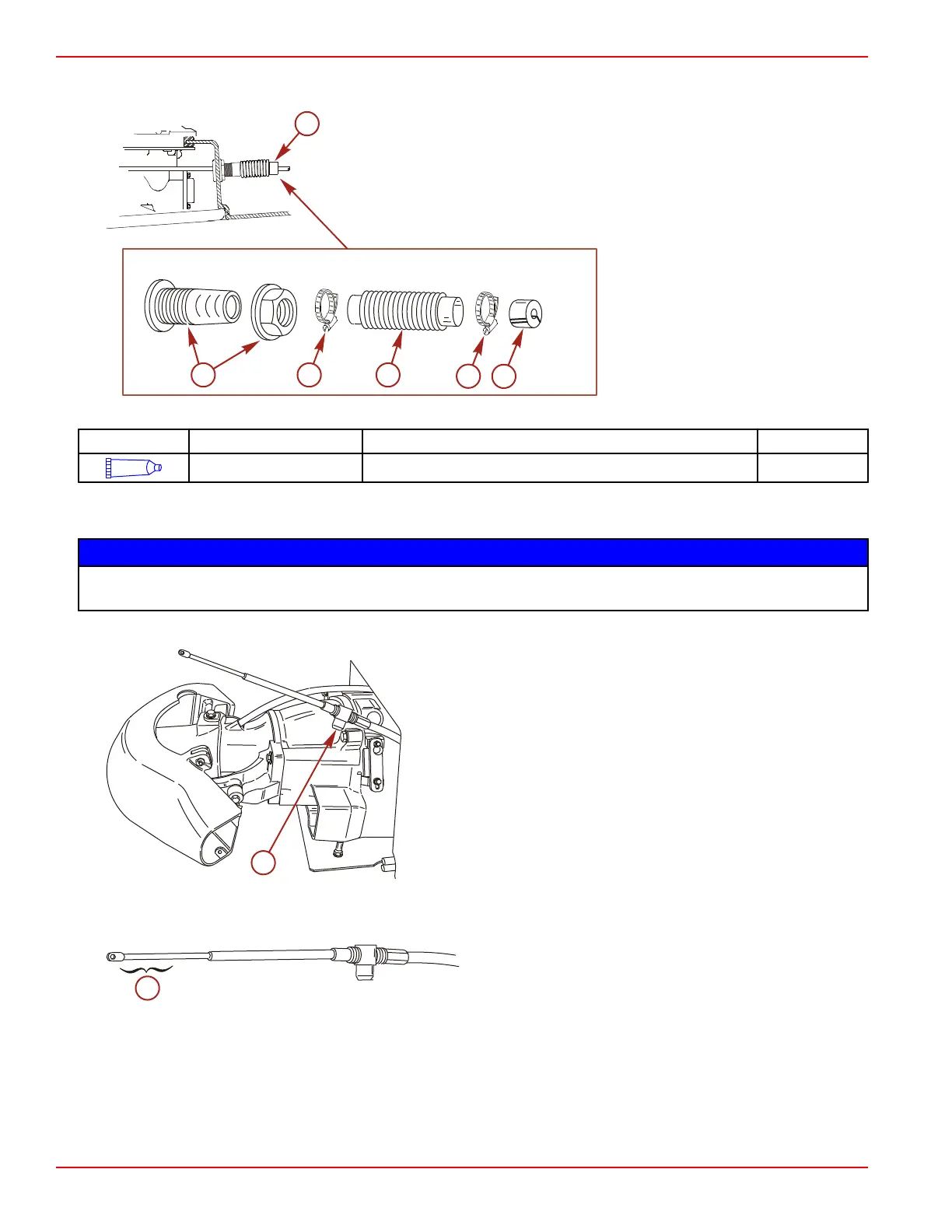

14. Secure the bellows to the through‑the‑hull fitting with a clamp. Slide the slit adapter over the cable. Apply Perfect Seal to the
slit and push the slit adapter into the bellows. Secure with a clamp.
a - Steering cable, through‑the‑hull
fitting, and bellows assembly
b - Through‑the‑hull fitting and nut
c - Clamp
d - Bellows
e - Slit adapter
Tube Ref No. Description Where Used Part No.
19
Perfect Seal End threads and the cable conduit end 92-34227Q02
Shift Cable Adjustment
NOTICE
Pre‑load in forward or reverse position can damage the stop, the shift cable, or the control box components. Adjust the shift
cable to prevent the reverse gate from loading against the forward or reverse stop.
1. Thread the cable barrel onto the shift cable.
a - Cable barrel
2. Use a degreaser to clean off all oil film from the area on the shift cable indicated following.
NOTE: Removing the oil film from the shift cable is necessary to prevent the bellows from sliding on the cable.
a -
Remove oil film from this area
3. Slide the bellows over the shift cable end.
5564
a
c
c
e
d
b
a
5565
a
44613
