Flywheel

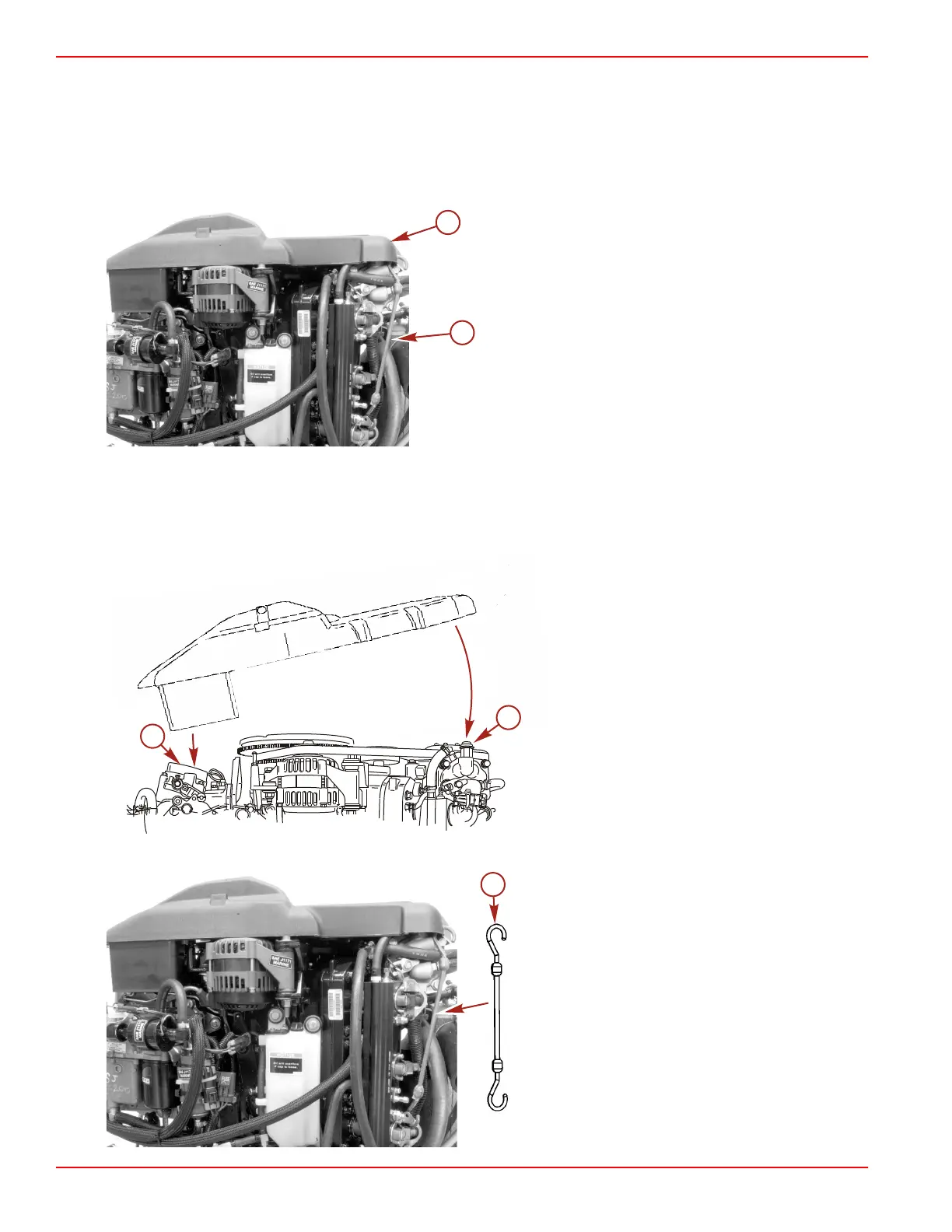

Flywheel Cover Removal and Installation
Removal
1. Detach the retaining strap.
2. Remove the cover by lifting off from the back of the engine.
a - Flywheel cover
b - Retaining strap
Installation
1. Lower the cover opening onto the air plenum intake flange. Tilt the cover side to side until the cover slides down onto the
intake flange.
2. Push the cover down onto the alignment pins and onto the air intake tube for the air compressor.
a - Air plenum intake flange
b - Air intake tube for the air compressor
3. Attach the retaining strap to the cover.
a - Retaining strap
