Powerhead
Page 4A-64 90-8M0050731 MAY 2011

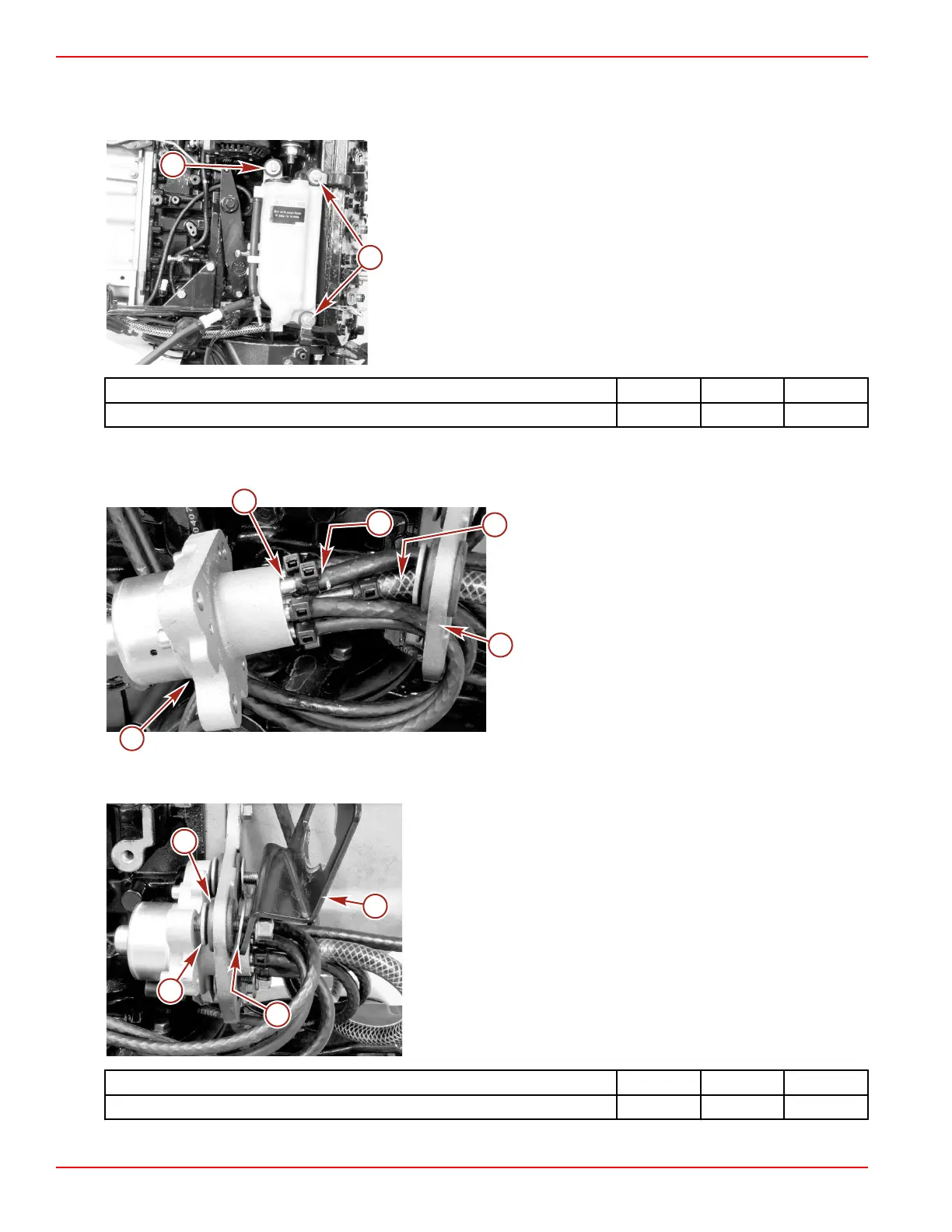

Oil Hoses and Reservoir Installation
1. Install the oil reservoir onto the cylinder block. Secure the reservoir with three 0.312‑18 x 1.25 in. screws, washers, and two
clamps. Tighten the screws to the specified torque.
a - Screw and washer securing oil reservoir
b - Screw and washer securing clamp and oil reservoir
Description Nm lb‑in. lb‑ft
Screw (0.312‑18 x 1.25 in.) (3) 20 177 15
NOTE: Attach the air compressor oil hose to the extended fitting on the oil pump.
2. Install the oil hoses onto the oil pump and secure with cable ties.
a - Oil hose for the air compressor
b - Oil delivery hose
c - Plenum
d - Oil pump
e - Extended fitting
3. Install the oil pump onto the plenum. Secure the oil pump with three M8 x 30 screws, washers, and the 14 pin connector
mounting bracket. Tighten the screws to the specified torque.
a - Bushing
b - Grommet
c - Bracket
d - Washer
Description Nm lb‑in. lb‑ft
Screw (M8 x 30) 17 150
a
b
33954
a
b
c
d
e
37189
a
b
c
d
33780
