Charging and Starting System
90-8M0050731 MAY 2011 Page 2B-31

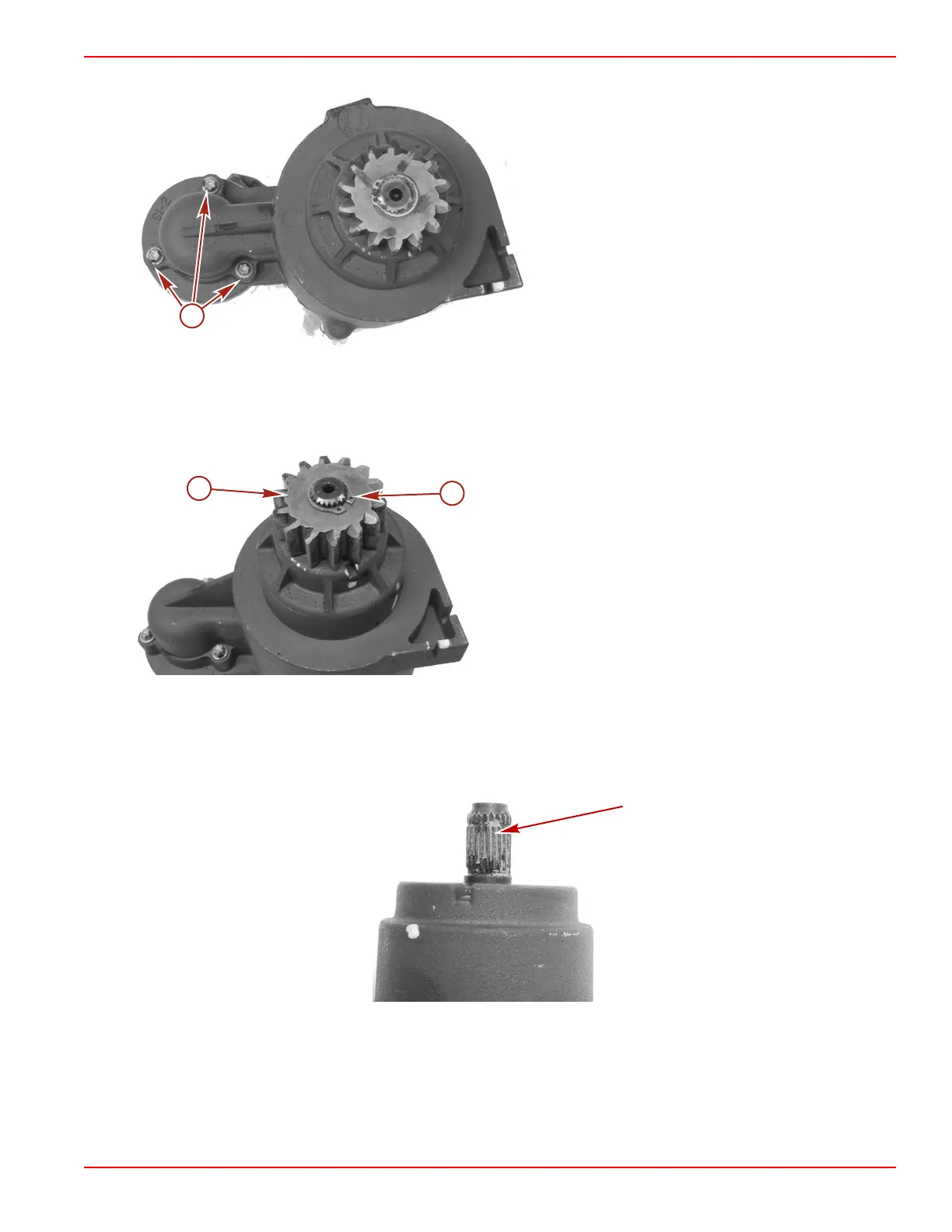

3. Remove the three screws securing the solenoid to the starter. Remove the solenoid from the starter.
a - Screws
Pinion Gear Removal
1. Remove and discard the snap ring securing the pinion gear to the starter shaft.
2. Remove the pinion gear from the starter shaft.
NOTE: The removal of the pinion gear may require the use of a small gear puller.
a - Pinion gear
b - Snap ring
Starter Assembly (Solenoid Driven Bendix)
Pinion Gear Installation
1. Verify the starter shaft splines are clear of debris. Use a razor blade to clear debris from the root area of the starter shaft
splines.
