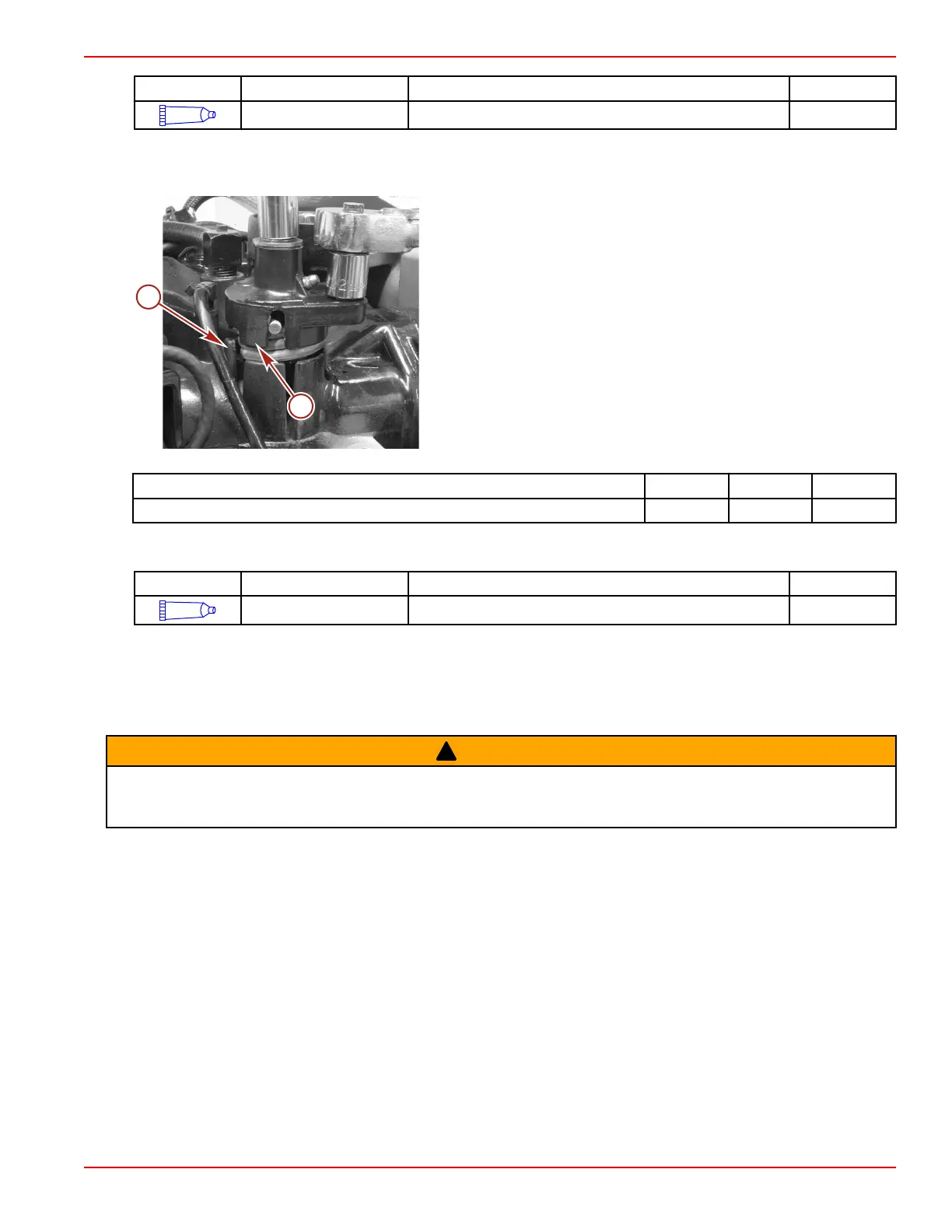

Charging and Starting System
90-8M0050731 MAY 2011 Page 2B-23
Tube Ref No. Description Where Used Part No.
95
2-4-C with Teflon Belt tensioner 92-802859A 1
6. Install the belt tensioner assembly onto the stud and spring. Retain the belt tensioner assembly with a washer and nut.
7. Use a breaker bar to compress the belt tensioner spring. Verify the belt tensioner assembly stop is clear of the cylinder block
stop. Tighten the nut to the specified torque.
a - Cylinder block stop
b - Belt tensioner stop
Description Nm lb‑in. lb‑ft
Nut (M10) 20 180 15
8. Lubricate the belt tensioner assembly with 2‑4‑C with Teflon through the grease fitting.
Tube Ref No. Description Where Used Part No.
95
2-4-C with Teflon Belt tensioner 92-802859A 1
Starter System
Starter Removal and Installation
Starter Removal
!
WARNING
Performing service or maintenance without first disconnecting the battery can cause product damage, personal injury, or death
due to fire, explosion, electrical shock, or unexpected engine starting. Always disconnect the battery cables from the battery
before maintaining, servicing, installing, or removing engine or drive components.
1. Disconnect the battery cables from the battery.
2. Disconnect the wires from the starter solenoid.
a
b
32084
