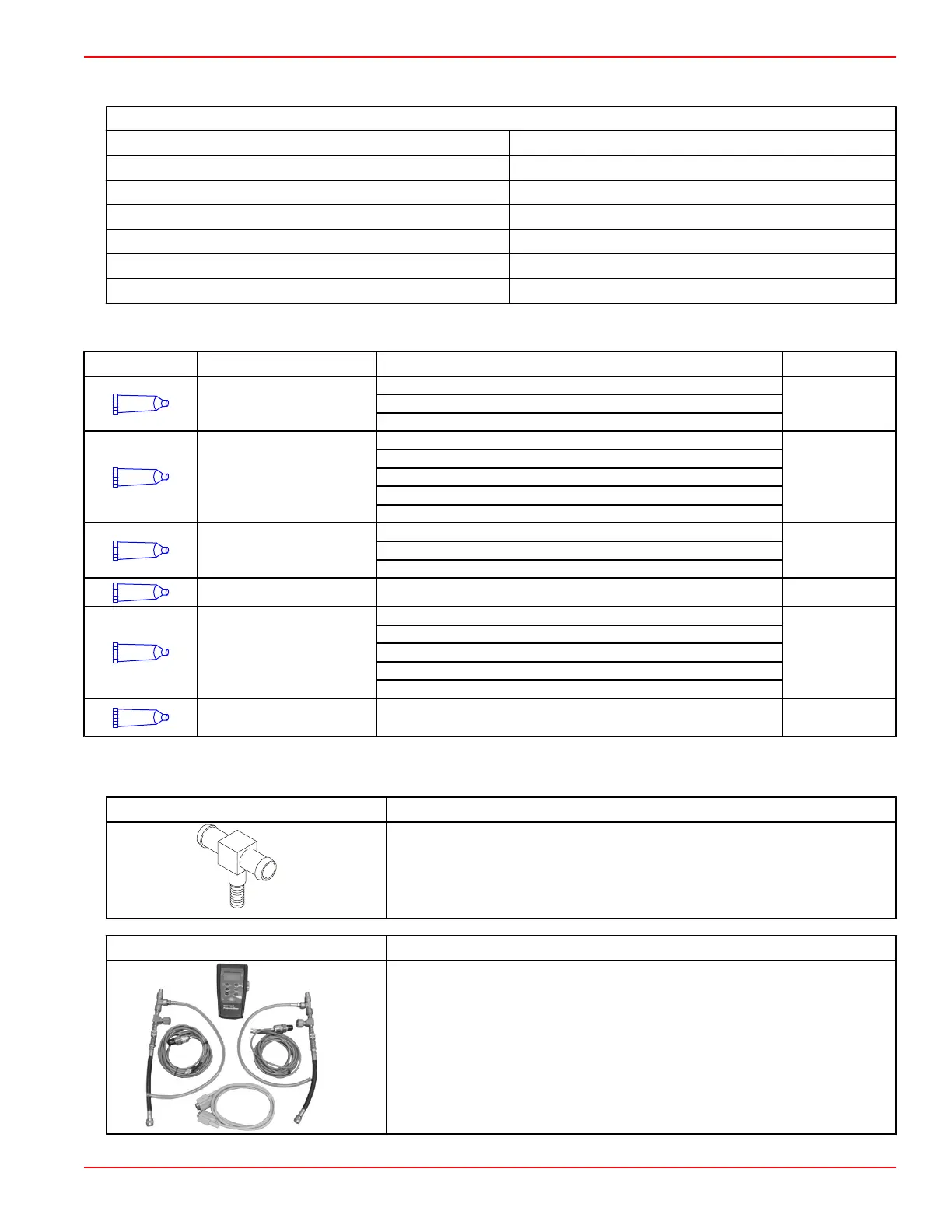

Direct Fuel Injection
90-8M0050731 MAY 2011 Page 3B-3
Fuel Rail Specifications
Fuel System Specifications
Fuel pressure 751.5 ± 14 kPa (109 ± 2 psi)
Air pressure 655 ± 14 kPa (95 ± 2 psi)
Tracker valve spring pressure 103.5 kPa (15 psi)
Fuel injector ohm resistance 1.8 ± 0.1 Ω
Direct injector ohm resistance 1.3 ± 0.3 Ω
Direct injector color Gray
Fuel rail water cooling None
Lubricants, Sealants, Adhesives
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker
Air compressor end cap screws
Air compressor end cap screw threads
Air compressor pulley screw threads
92-809819
14
2-cycle Premium Outboard
Oil
Air pressure regulator O-rings
Air hose and fuel hose fitting O-rings
Air compressor cylinder bore
Air compressor end cap O-rings
O-rings on the fuel rail air compressor hose fitting
92-858021K01
34
Special Lubricant 101
Fuel pump body seal and fuel pump outlet seal
Fuel pump body seal
Water separator fuel filter seal
92-802865Q02
66
Loctite 242 Threadlocker VST mounting screw threads, VST ground wire screw threads 92-809821
95
2-4-C with Teflon
Fuel injector O-rings and screw threads
Tracker diaphragm, O-ring, and screw threads
Air pressure regulator screw threads
Fuel pressure regulator diaphragm and O-ring
Fuel pressure regulator screw threads
92-802859A 1
110
4-Stroke 10W-30 Outboard
Oil
Direct injector and injector washer 92-858045K01
Special Tools
Schrader Valve Tee 22‑849606
Aids in checking fuel pressure when using a fuel pressure gauge with a screw on
Schrader valve connector
Digital Pressure Meter 91‑892651A01
Connects to the fuel system/manifold and can be used in conjunction with
Computer Diagnostic System (CDS)
