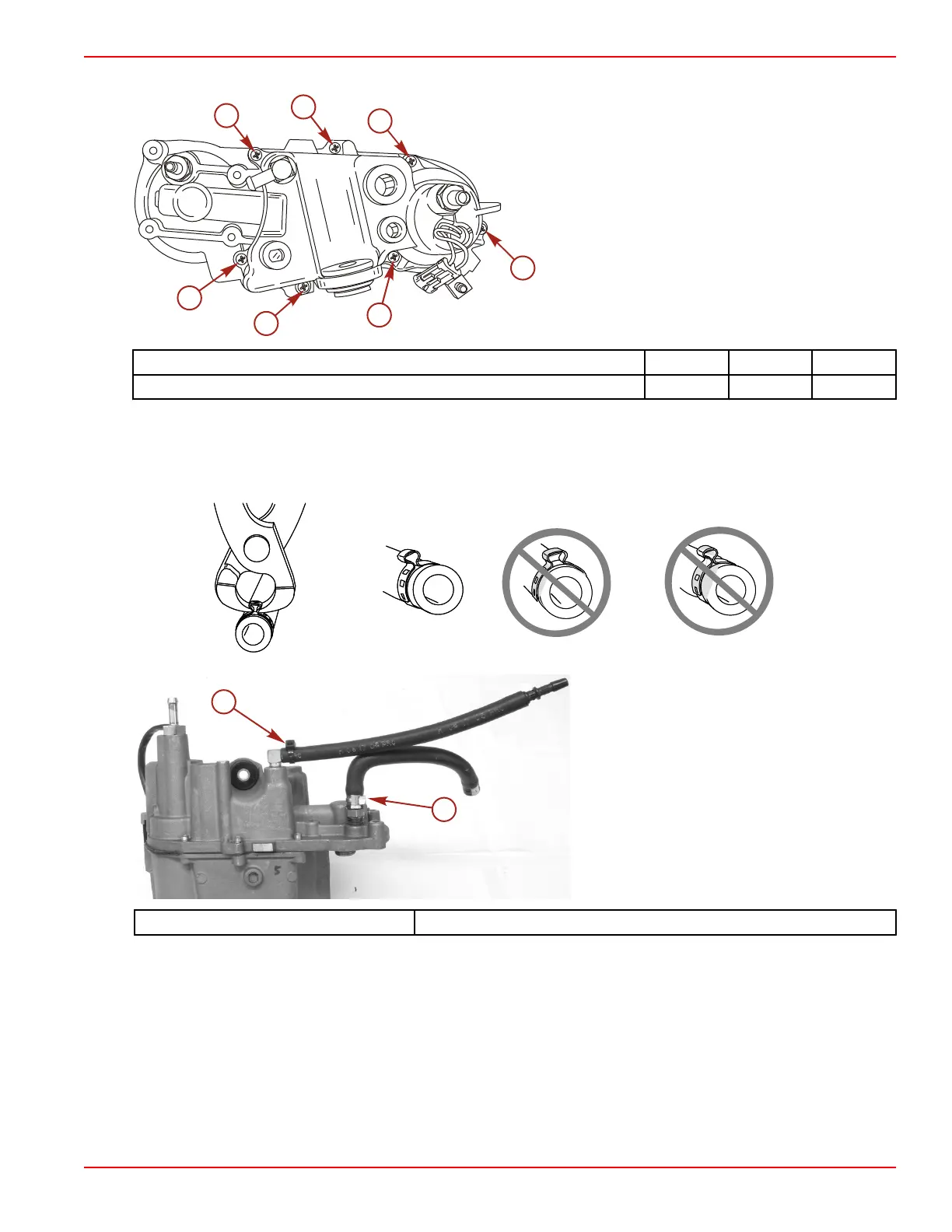

8. Install the VST cover onto the VST tank and secure with seven screws. Tighten the screws to the specified torque.
a - Screw (7)
Description Nm lb‑in. lb‑ft
Screw (8‑32 x 0.750) (7) 3.5 31
9. Install the vent hose and secure the hose with a cable tie.
10. Install a 18.3 mm hose clamp onto the lift pump hose.
11. Install the lift pump hose onto the VST cover. Secure the hose with a 18.3 mm hose clamp using a hose clamp tool.
IMPORTANT: Use tool 91‑803146T or Snap‑On equivalent YA3080 to crimp the full circle hose clamp. Using a different tool
could result in a crimp that is too loose or too tight. Do not use a screw type hose clamp as it may damage the hose.
3924
a - Cable tie
b - 18.3 mm hose clamp
Hose Clamp Tool Kit 91‑803146A04
