Direct Fuel Injection
Page 3B-46 90-8M0050731 MAY 2011

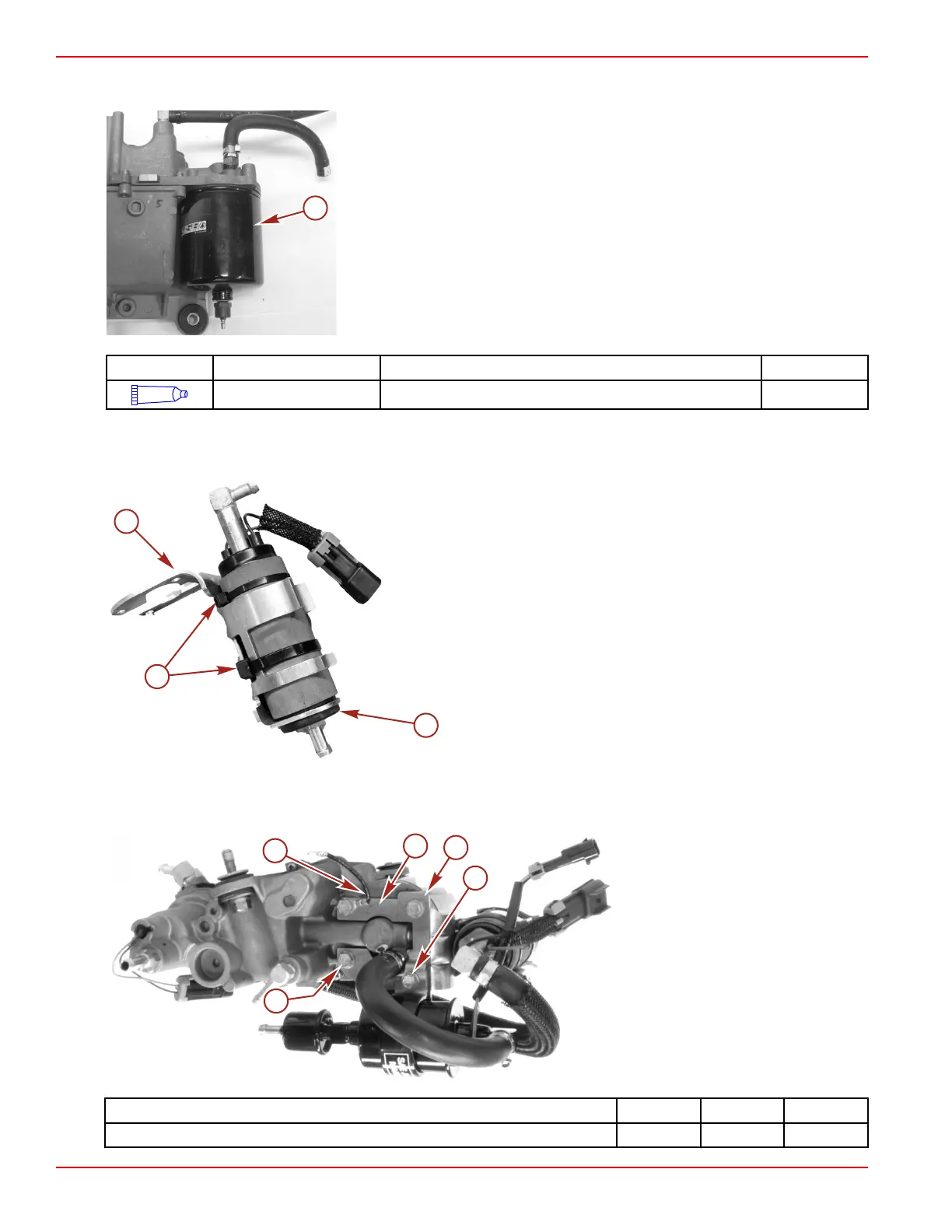

12. Lubricate the water separator fuel filter seal with Special Lubricant 101. Install the water separator fuel filter. Tighten the water
separator fuel filter securely.
a - Water separator fuel filter
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Water separator fuel filter seal 92-802865Q02
13. Install the grommet onto the fuel filter bracket.
14. Install the low‑pressure electric fuel pump onto the fuel pump bracket. Secure the pump with two cable ties.
IMPORTANT: If the low‑pressure electric fuel pump does not have a sleeve or grommet, refer to Service Bulletin 98‑8.
a - low‑pressure electric fuel pump bracket
b - Cable ties
c - Grommet
15. Install the VST ground wire onto the screw, as shown.
16. Install the low‑pressure electric fuel pump bracket and lift pump bracket onto the VST. Secure the brackets with four screws.
Tighten the screws to the specified torque.
a - Ground cable
b - Low‑pressure electric fuel pump
bracket
c - Lift pump bracket
d - Screw (M6 x 35) (1)
e - Screw (M6 x 16) (3)
Description Nm lb‑in. lb‑ft
Screw (M6 x 16) (3), (M6 x35) 11.5 102
