Mercury 200 OptiMax Jet Drive

Direct Fuel Injection
Page 3B-42 90-8M0050731 MAY 2011

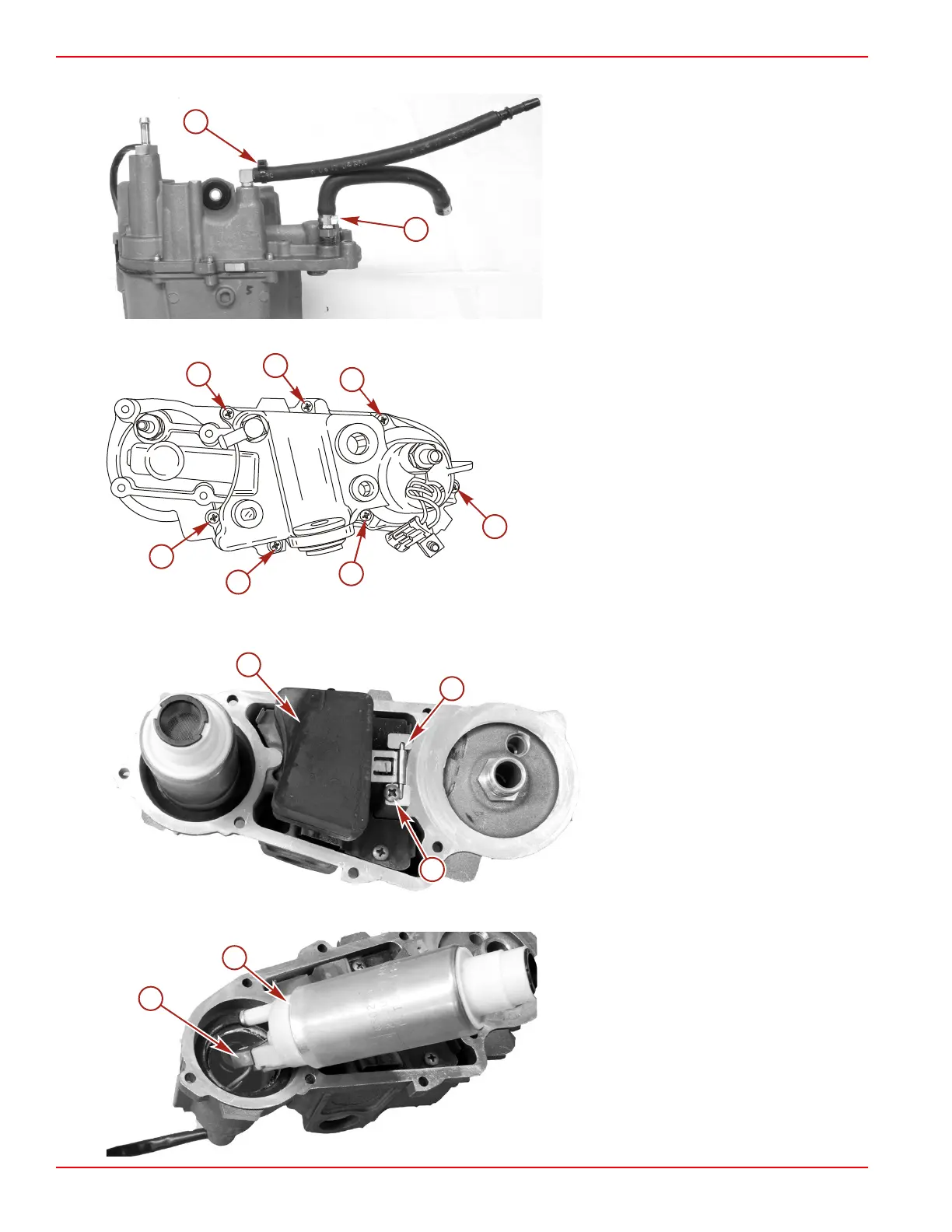

6. Remove the metal hose clamp securing the pulse pump fuel hose to the fitting.
a - Cable tie
b - Metal hose clamp
7. Remove the seven screws securing the VST cover to the VST tank. Remove the cover.
a - Screw (7)
8. Loosen the screw securing the float pin. Remove the float, float pin, and needle.
NOTE: It is not necessary to remove the screw when removing the float, float pin, and needle.
a - Float
b - Float pin
c - Screw
9. Carefully remove the fuel pump from the VST cover. Disconnect the fuel pump electrical harness.
a -
Fuel pump electrical harness connector
b - Fuel pump
a
b
32668
a
a
a
a
a
a
a
16050
a
b
c
32685
a
b
32686
