Mercury 200 OptiMax Jet Drive

Direct Fuel Injection
90-8M0050731 MAY 2011 Page 3B-41

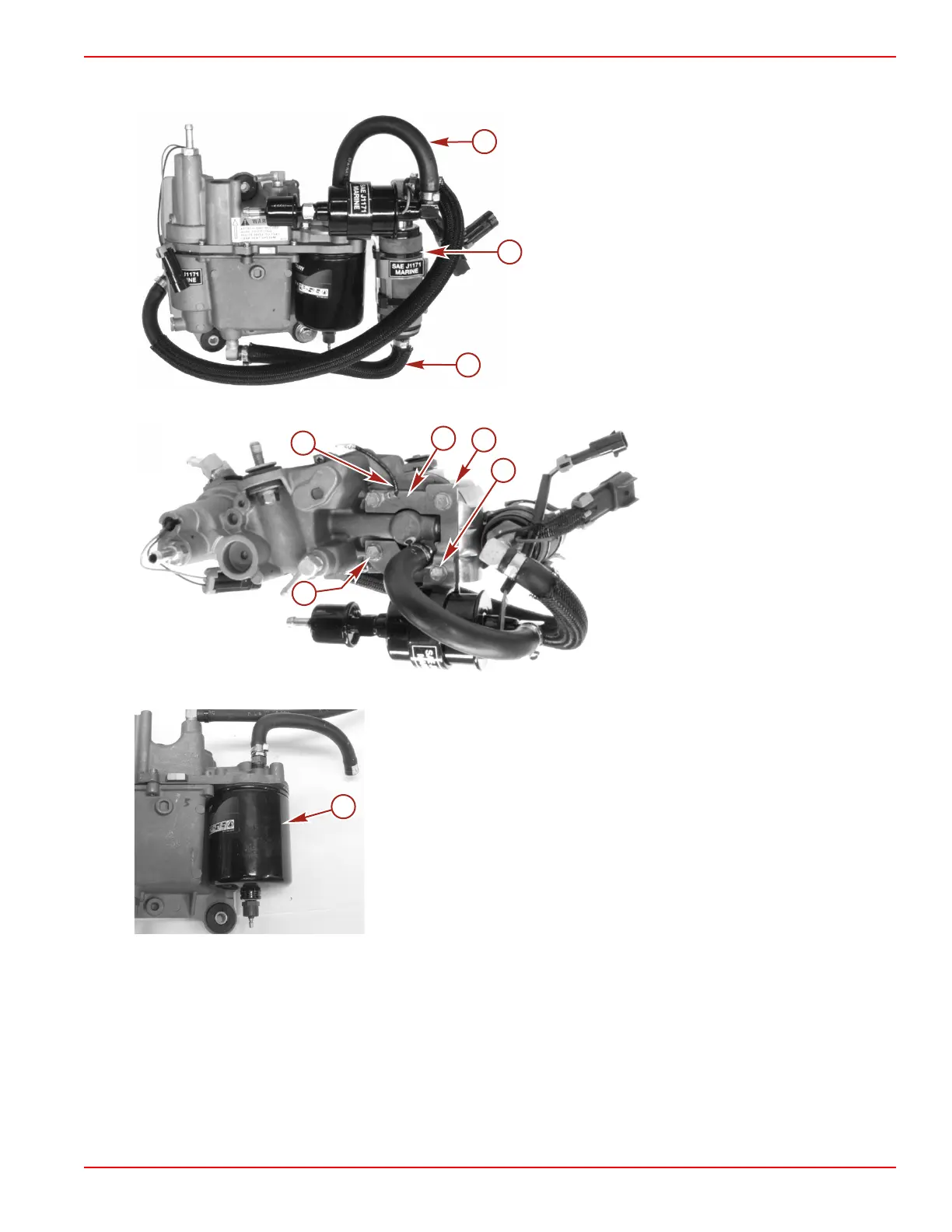

2. Remove the two metal hose clamps securing the low‑pressure electric fuel pump outlet hose to the fittings. Remove the hose
from the fittings.
a - Lift pump to water separating filter fuel hose
b - Cable tie
c - Low‑pressure electric fuel pump outlet hose
3. Remove the four screws securing the low‑pressure electric fuel pump and lift pump brackets to the VST. Remove the brackets.
a - Ground cable
b - Low‑pressure electric fuel pump
bracket
c - Lift pump bracket
d - Screw (M6 x 35) (1)
e - Screw (M6 x 16) (3)
4. Remove the water separator fuel filter.
a - Water separator fuel filter
5. Cut the cable tie securing the vent hose to the fitting.
45836
a
c
b
45835
a
b
c
e
d
a
32666
