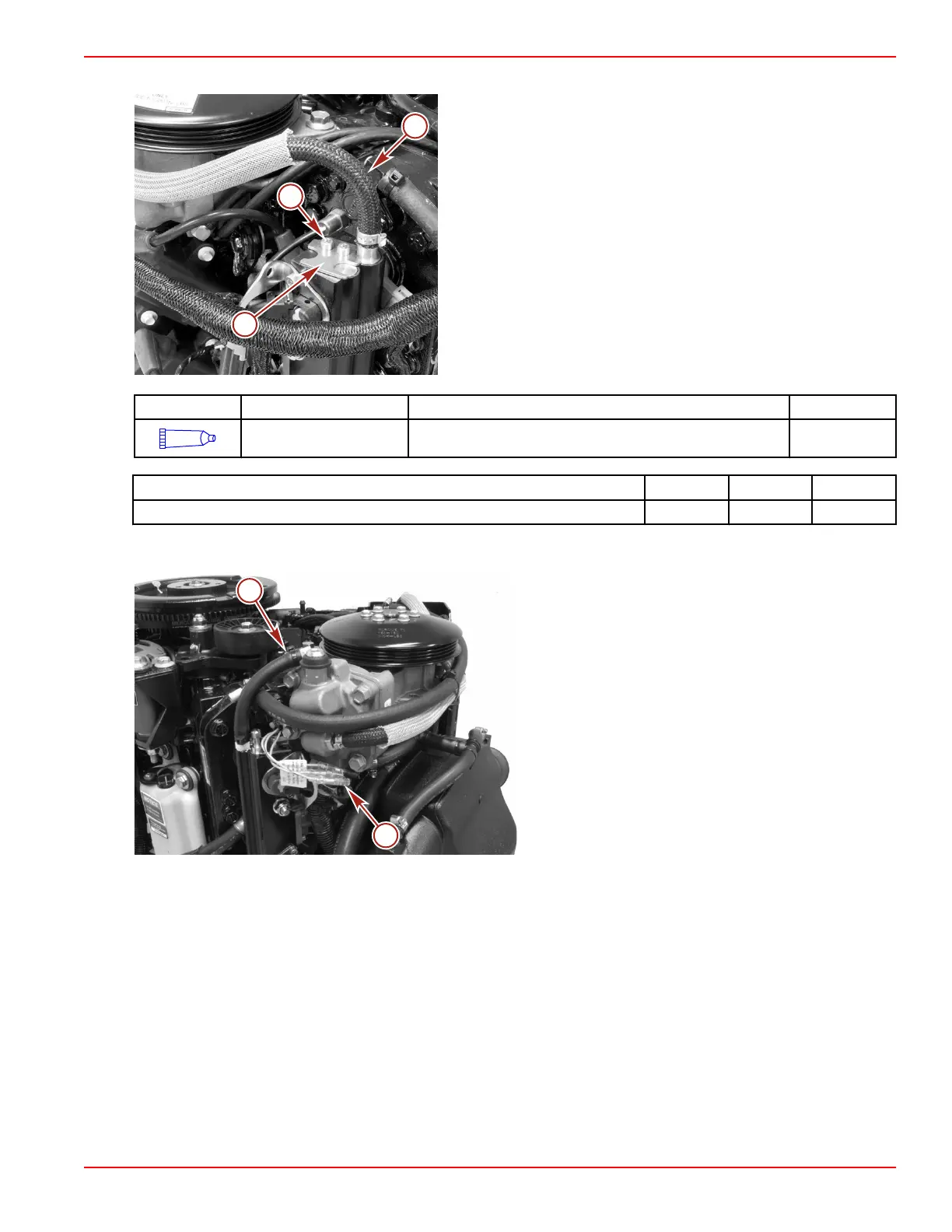

11. Install the fitting into the fuel rail and secure with a retainer and two screws. Tighten the screws to the specified torque.
a - Retainer
b - Screw (2)
c - Air compressor hose
Tube Ref No. Description Where Used Part No.
14
2-cycle Premium
Outboard Oil
O-rings on the fuel rail air compressor hose fitting 92-858021K01
Description Nm lb‑in. lb‑ft
Screw 8 71
12. Secure the water inlet hose to the air compressor with a cable tie.
13. Connect the air compressor temperature sensor bullet connectors to the wire harness connector.
a - Water inlet hose
b - Bullet connectors
