Powerhead
90-8M0050731 MAY 2011 Page 4A-69

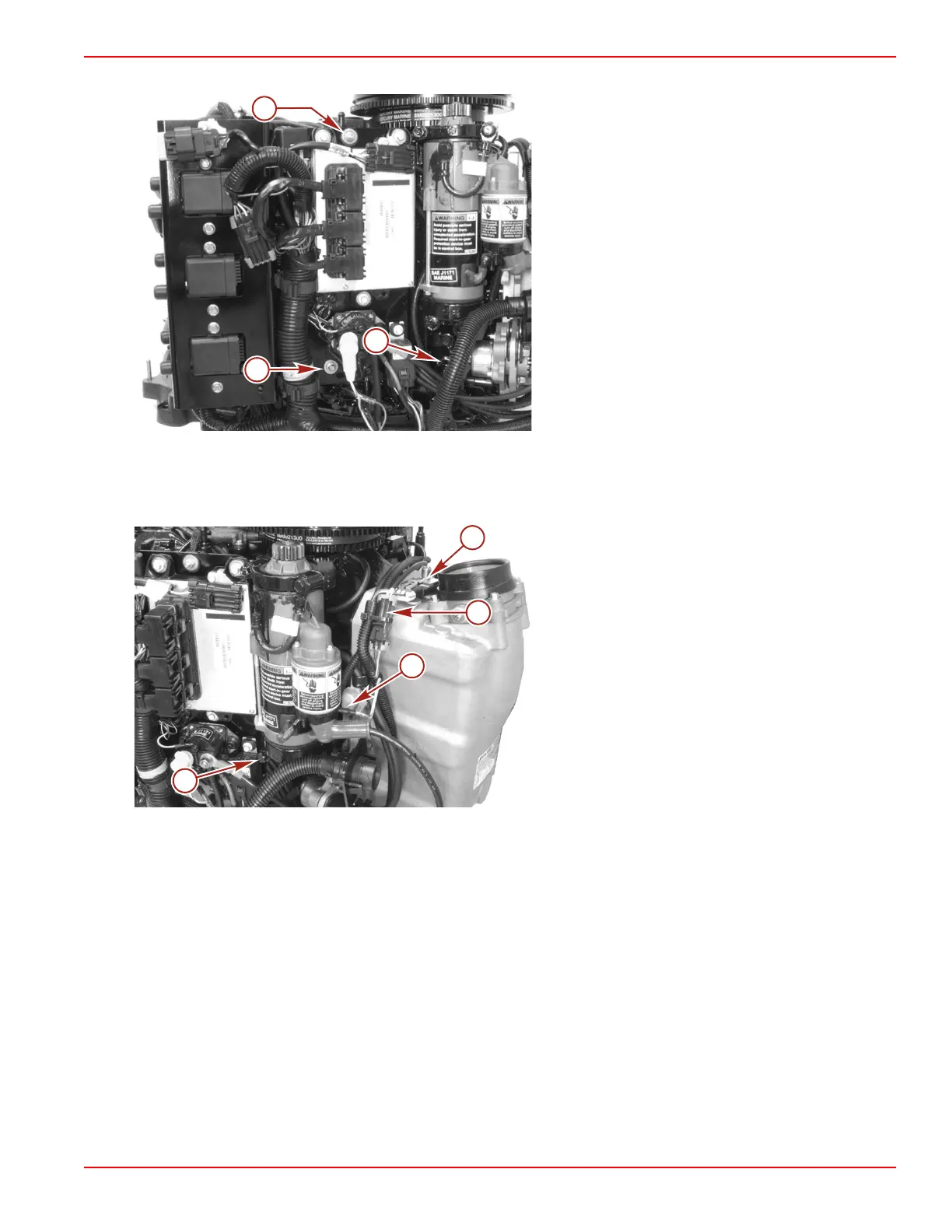

7. Connect the oil pump connector.
a - Nut and washer
b - Screw
c - Oil pump connector
8. Connect the harness ground lead below the starter motor.
9. Connect the red and yellow/red leads to the starter solenoid.
10. Connect the MAP sensor connector.
11. Connect the air temperature sensor connector.
a - MAP sensor connector
b - Air temperature sensor connector
c - Yellow/red wire
d - Harness ground lead
12. Connect the crankshaft position sensor connector.
13. Connect the water pressure sensor harness and sensor retainer.
14. Install two nuts securing the aft portion of the electrical plate.
