Mercury 200 OptiMax Jet Drive Service Manual

Timing, Synchronizing, and Adjusting
90-8M0050731 MAY 2011 Page 2C-3
3. Tighten the jam nut on the throttle stop screw.
4. Verify the roller can be lifted off the cam at full throttle to prevent the linkage from binding. Adjust the throttle stop screw, if
necessary.

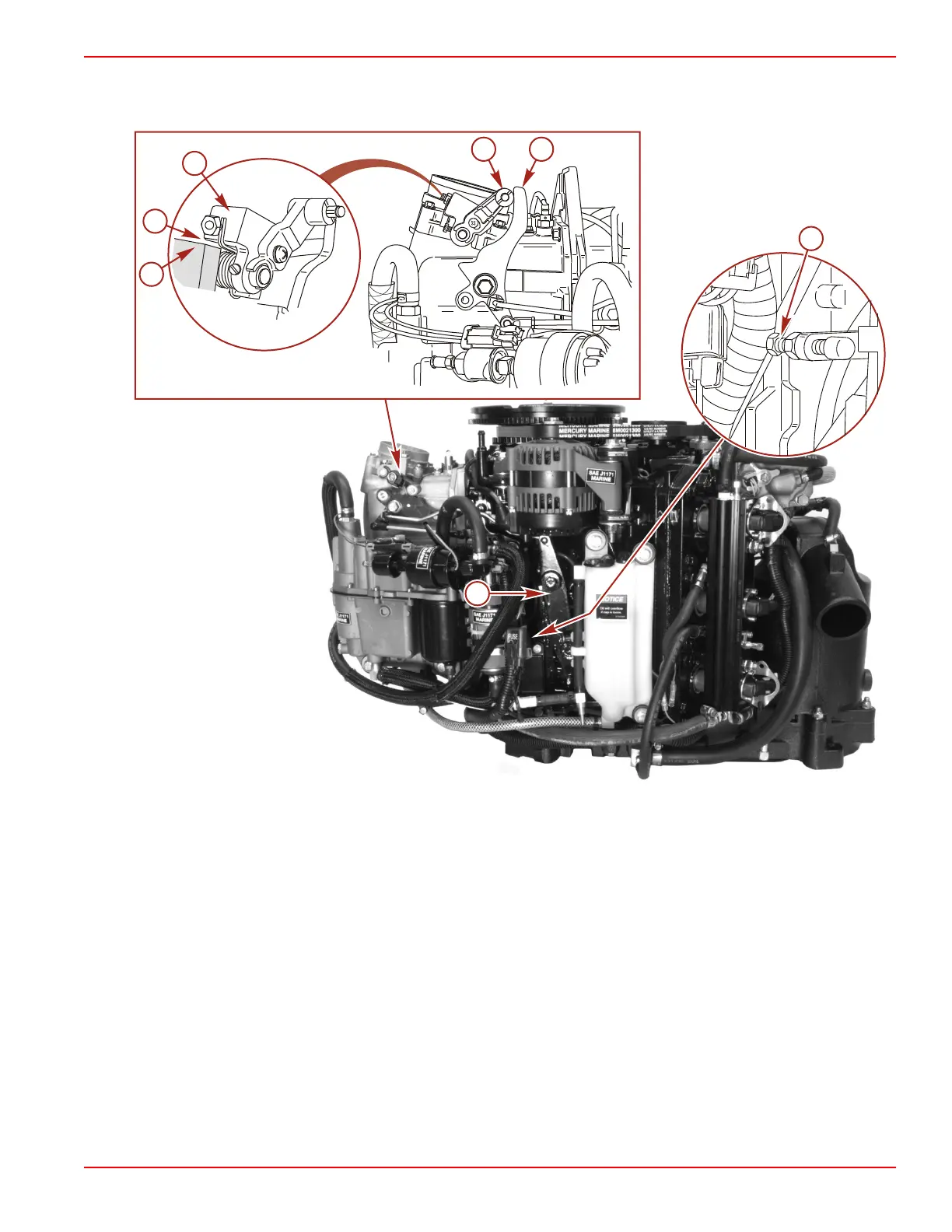

a - Throttle shaft arm
b - 0.508 mm (0.020 in.) clearance
c - Stop on attenuator box
d - Roller
e - Throttle cam
f - Throttle stop screw
g - Throttle arm
45433
b
f
g
c
a
d
e
