Fuel Pump
Page 3A-10 90-8M0050731 MAY 2011
4. Connect the vapor separator fuel hose to the fuel pump. Secure the hose with an 18.3 mm hose clamp.

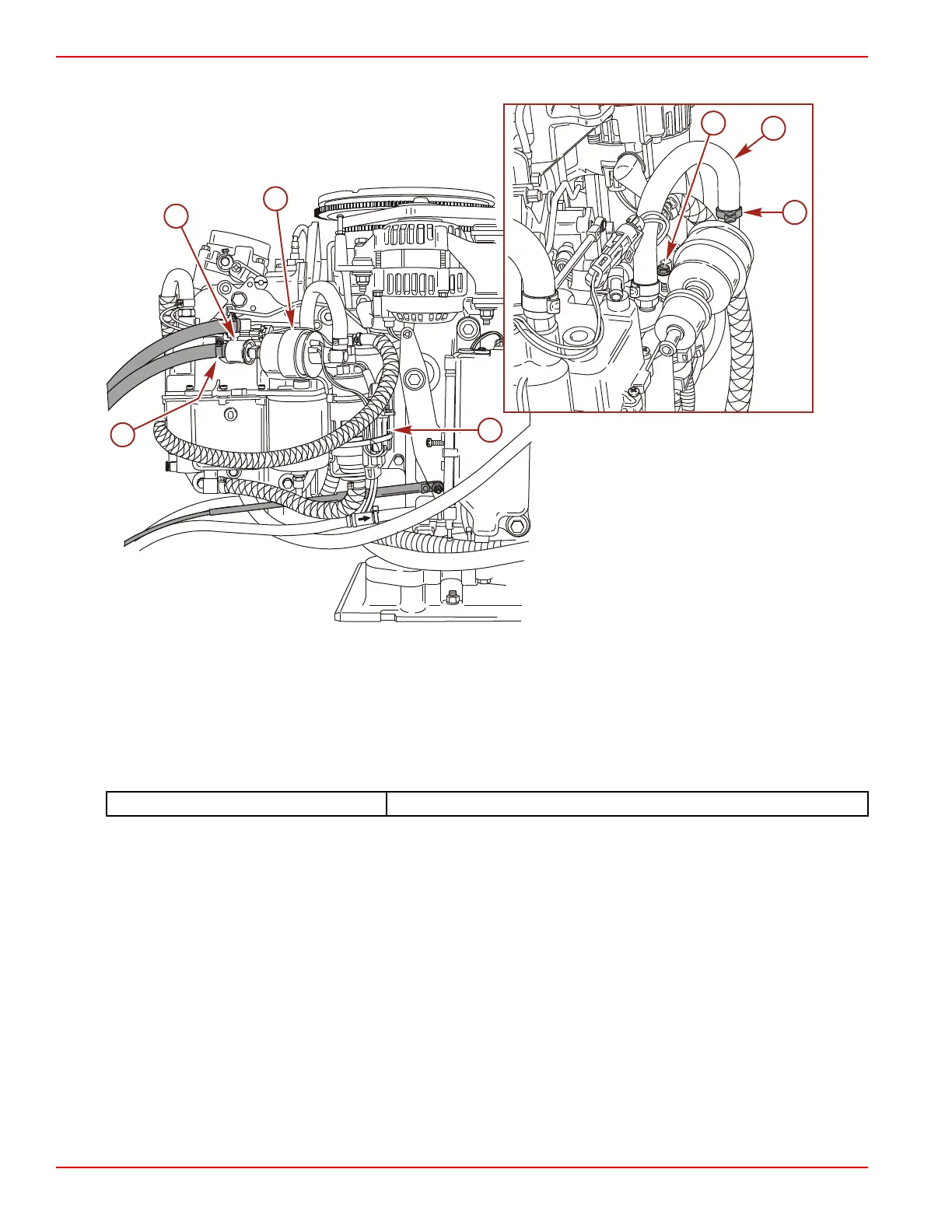

a - Fuel lift pump clamp
b - Filter
c - Hose clamp
d - Harness connector
e - Screw (M6 x 35)
f - Hose to VST
g - Hose clamp (18.3 mm)
Hose Clamp Tool Kit 91‑803146A04
5. Run the engine and check for leaks.
a
b
d
c
g
f
e
45447
