Direct Fuel Injection
Page 3B-70 90-8M0050731 MAY 2011
Tube Ref No. Description Where Used Part No.
14
2-cycle Premium
Outboard Oil
Air hose and fuel hose fitting O-rings 92-858021K01
Description Nm lb‑in. lb‑ft
Screws 8 71

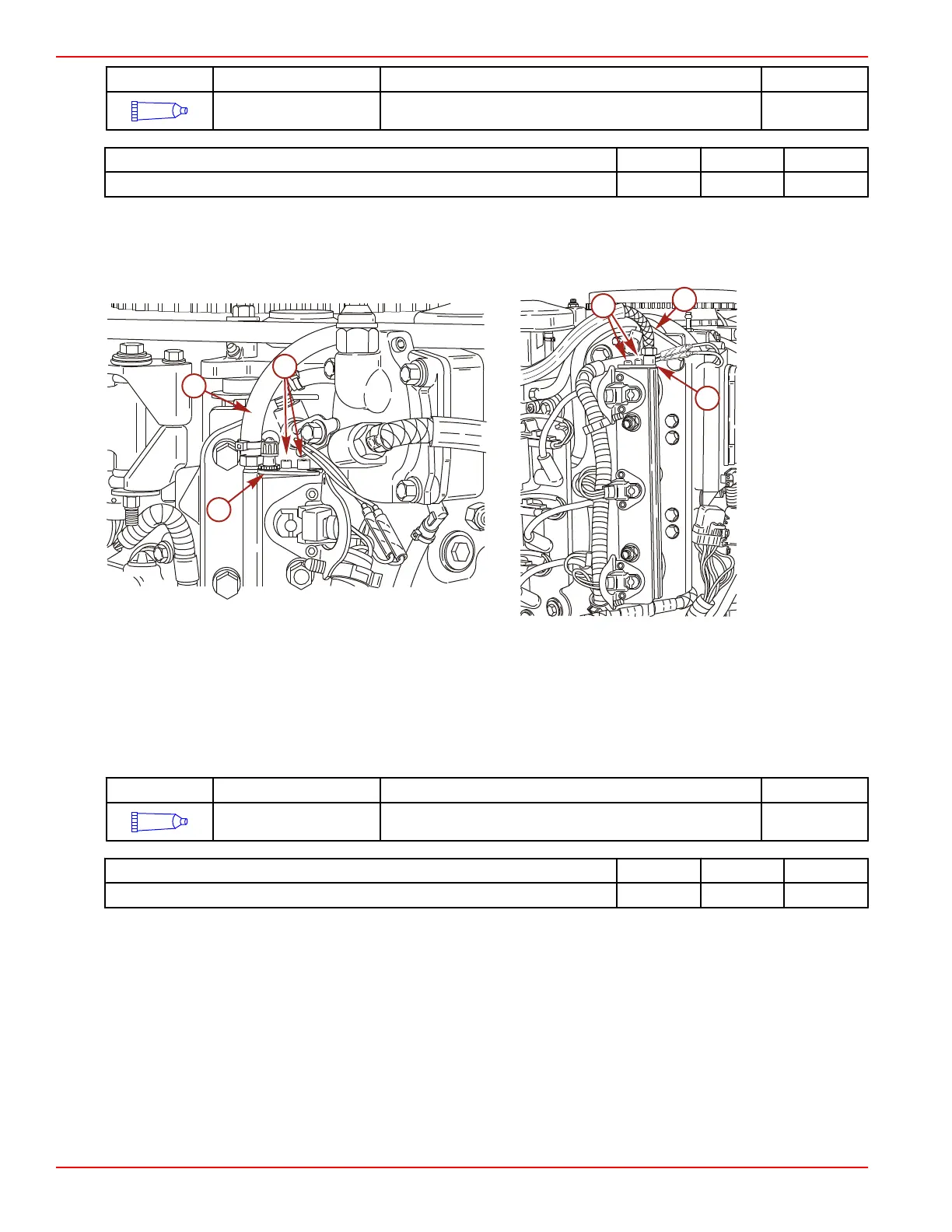

10. Install new O‑rings onto the fuel rail air hose and fuel hose fittings.
11. Lubricate the O‑rings with oil and install onto the fuel rail.
12. Secure the fittings to the fuel rail with a retainer and two screws. Tighten the screws to the specified torque.
13. Install the compressor water inlet hose to the fuel rail and secure with a cable tie.
a - Water inlet hose to compressor
b - Fuel hose retainer
c - Screw (2)
d - Air hose
e - Air hose retainer
f - Screw (2)
Tube Ref No. Description Where Used Part No.
14
2-cycle Premium
Outboard Oil
Air hose and fuel hose fitting O-rings 92-858021K01
Description Nm lb‑in. lb‑ft
Screws 8 71
14. Connect the engine harness connectors to the fuel injector and direct injector connectors.
