Powerhead
90-8M0050731 MAY 2011 Page 4A-25

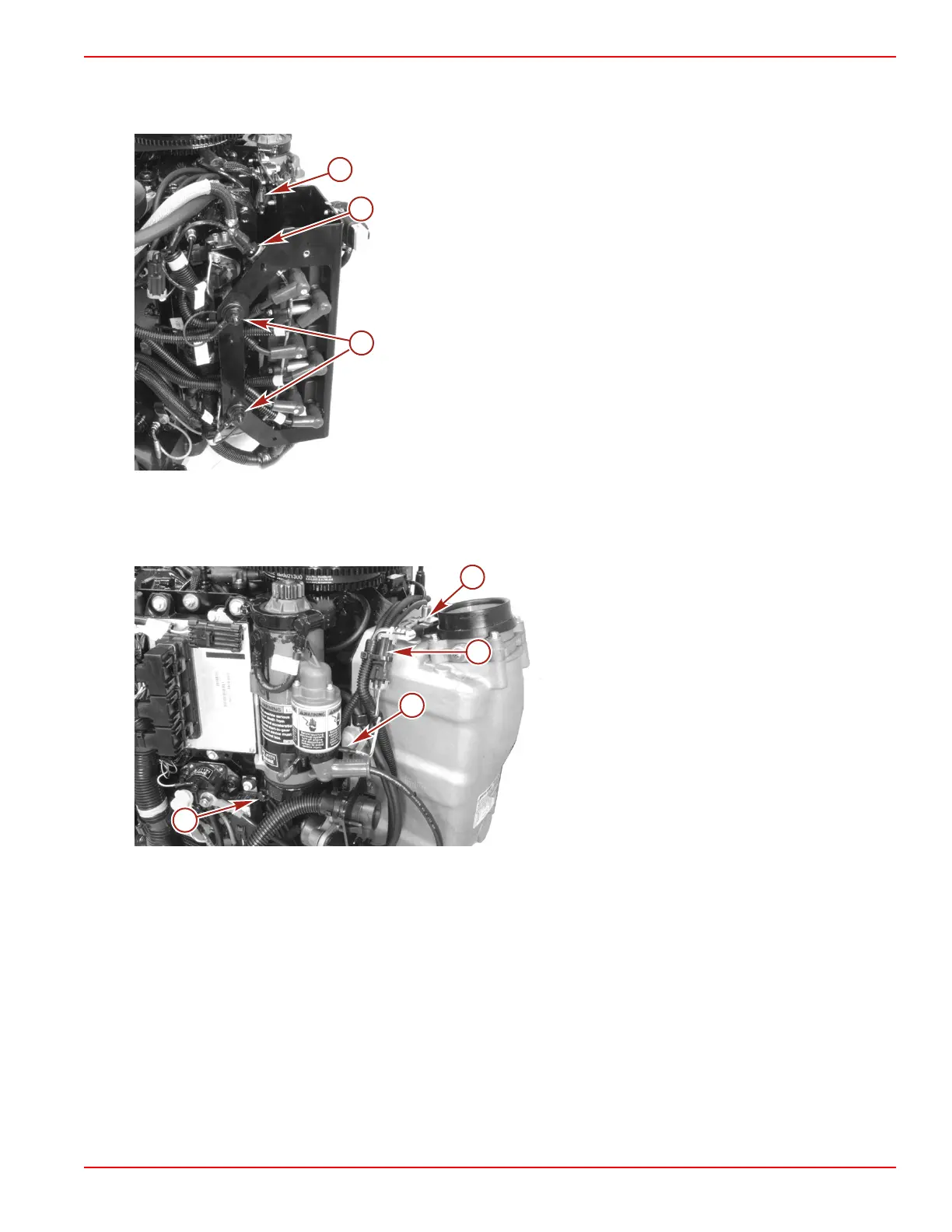

7. Remove two nuts securing the aft portion of the electrical plate.
8. Disconnect the water pressure sensor harness and sensor retainer.
9. Disconnect the crankshaft position sensor connector.
a - Crankshaft position sensor connector
b - Water pressure sensor
c - Nut (M8)
10. Disconnect the air temperature sensor connector.
11. Disconnect the MAP sensor connector.
12. Disconnect the yellow/red lead from the starter solenoid.
13. Disconnect the harness ground lead below the starter motor.
a - MAP sensor connector
b - Air temperature sensor connector
c - Yellow/red wire
d - Harness ground lead
14. Disconnect the oil pump connector.
