Mercury 200 OptiMax Jet Drive Service Manual

Powerhead
Page 4A-28 90-8M0050731 MAY 2011

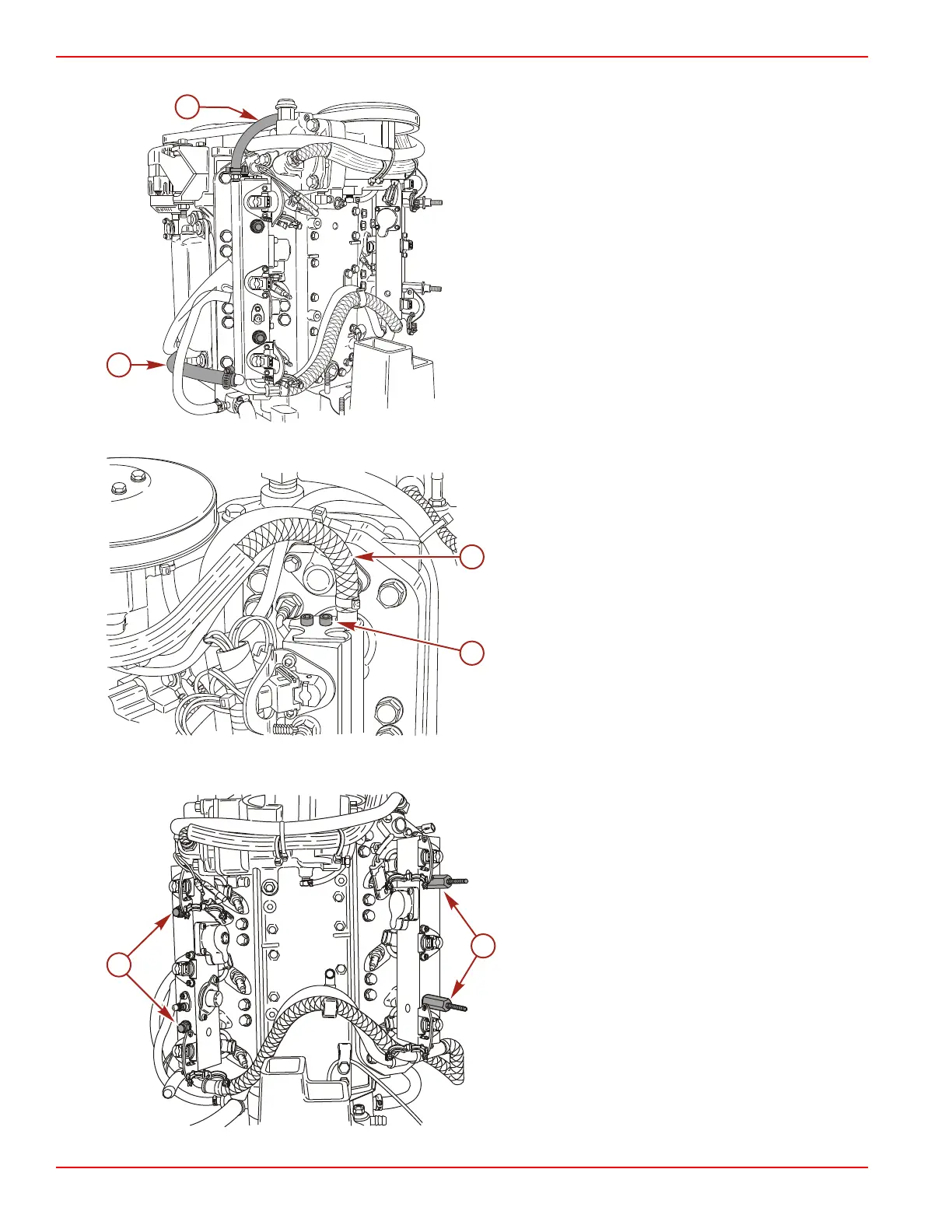

4. Remove the incoming coolant hose from the port fuel rail.
a - Air compressor coolant hose
b - Incoming coolant hose
5. Remove two screws securing the compressor air hose and remove the hose from the starboard fuel rail.
a - Air hose
b - Screw (2)
6. Remove two nuts and coil plate spacers securing the fuel rails.
7. Remove both fuel rails as an assembly.
a - Nuts
b - Coil plate spacers
45572
a
b
45573
a
b
45574
a
b
