Powerhead
Page 4A-30 90-8M0050731 MAY 2011
NOTE: Do not remove the air compressor hose from the fitting on the fuel rail. Removing the hose from the fitting on the fuel
rail will damage the air compressor hose.

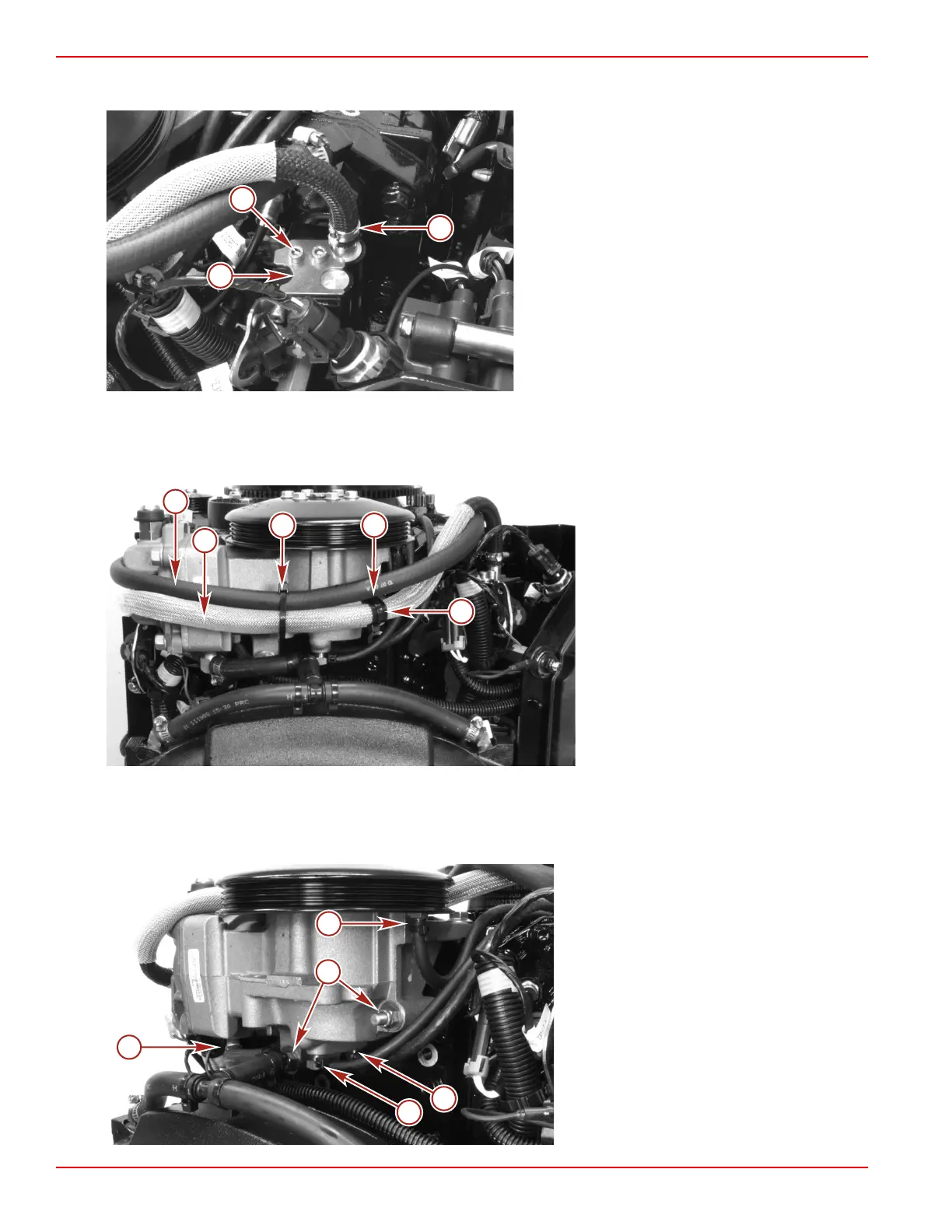

a - Retainer
b - Screw (2)
c - Air compressor hose with fitting
7. Remove the cable ties securing the water hose and air hose to the compressor.
8. Remove the air compressor fitting with the hose from the air compressor.
NOTE: Do not remove the air compressor hose from the fitting on the air compressor. Removing the hose from the fitting will
damage the air compressor hose.
a - Water hose
b - Air compressor to fuel rail hose
c - Cable tie
d - Plastic J‑clamp
9. Remove the two nuts and washers securing the air compressor to the cylinder block.
10. Remove the water hose to the expansion chamber.
11. Remove the oil hoses from the air compressor.
NOTE: Mark or identify the three oil hoses when removing to aid in the installation.
a - Water hose to expansion chamber
b - Nut and washer (M8)
c - Air compressor oil inlet hose
d - Oil hose to top main bearing
e - Oil hose to #5 reed block
To Next Page
