Mercury 200 OptiMax Jet Drive Service Manual

Powerhead
Page 4A-34 90-8M0050731 MAY 2011

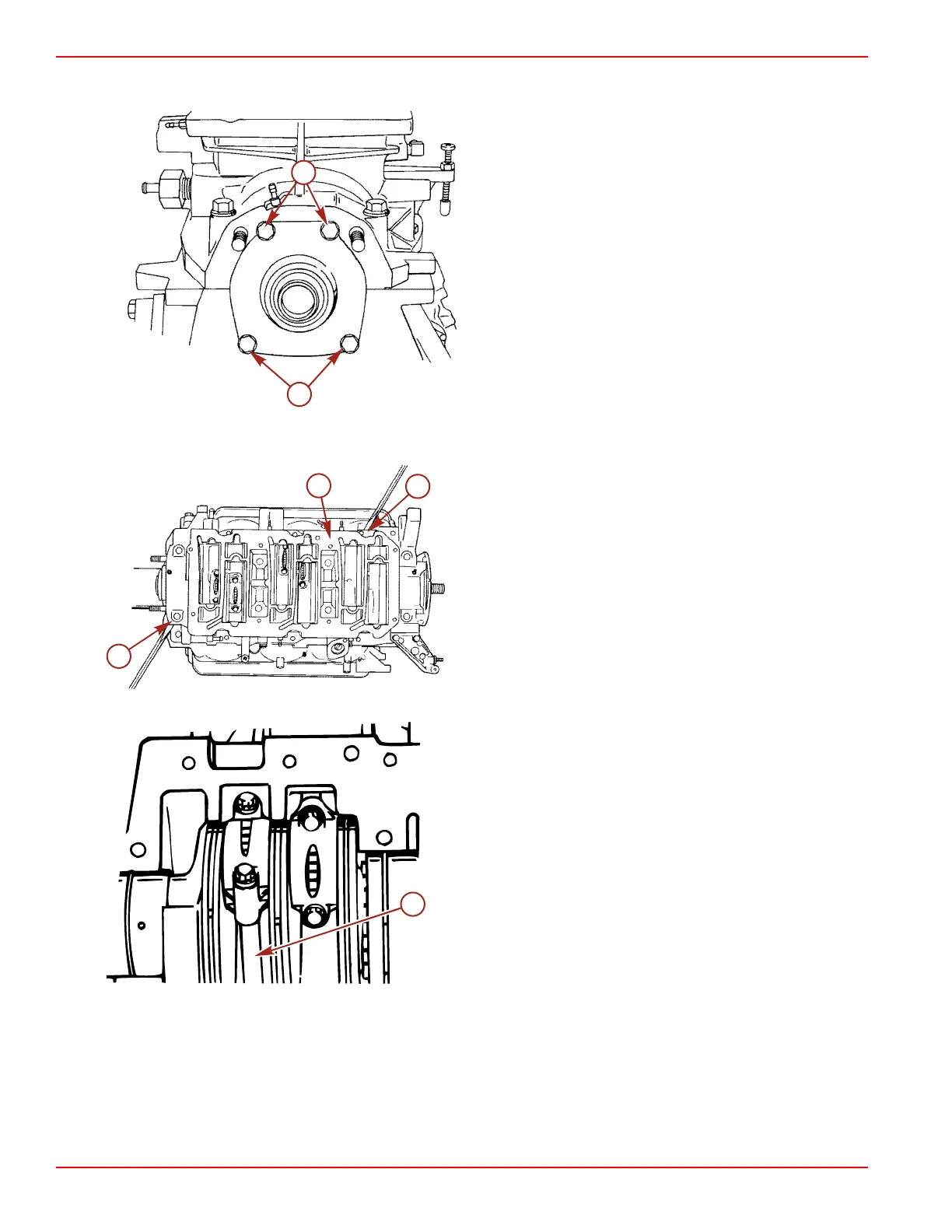

5. Remove the four screws securing the lower end cap. Do not remove the end cap at this time.
a - Screws (4)
6. Remove the screws that secure the crankcase cover to the cylinder block.
7. Pry the crankcase cover off the cylinder block with pry bars at the locations shown.
a - Pry locations
b - Crankcase cover
8. Use paint or indelible ink to identify each connecting rod location.
a - Cylinder number
9. Remove the connecting rod cap screws and the connecting rod cap.
a
17017
a
a
b
a
17018
a
1
8627
