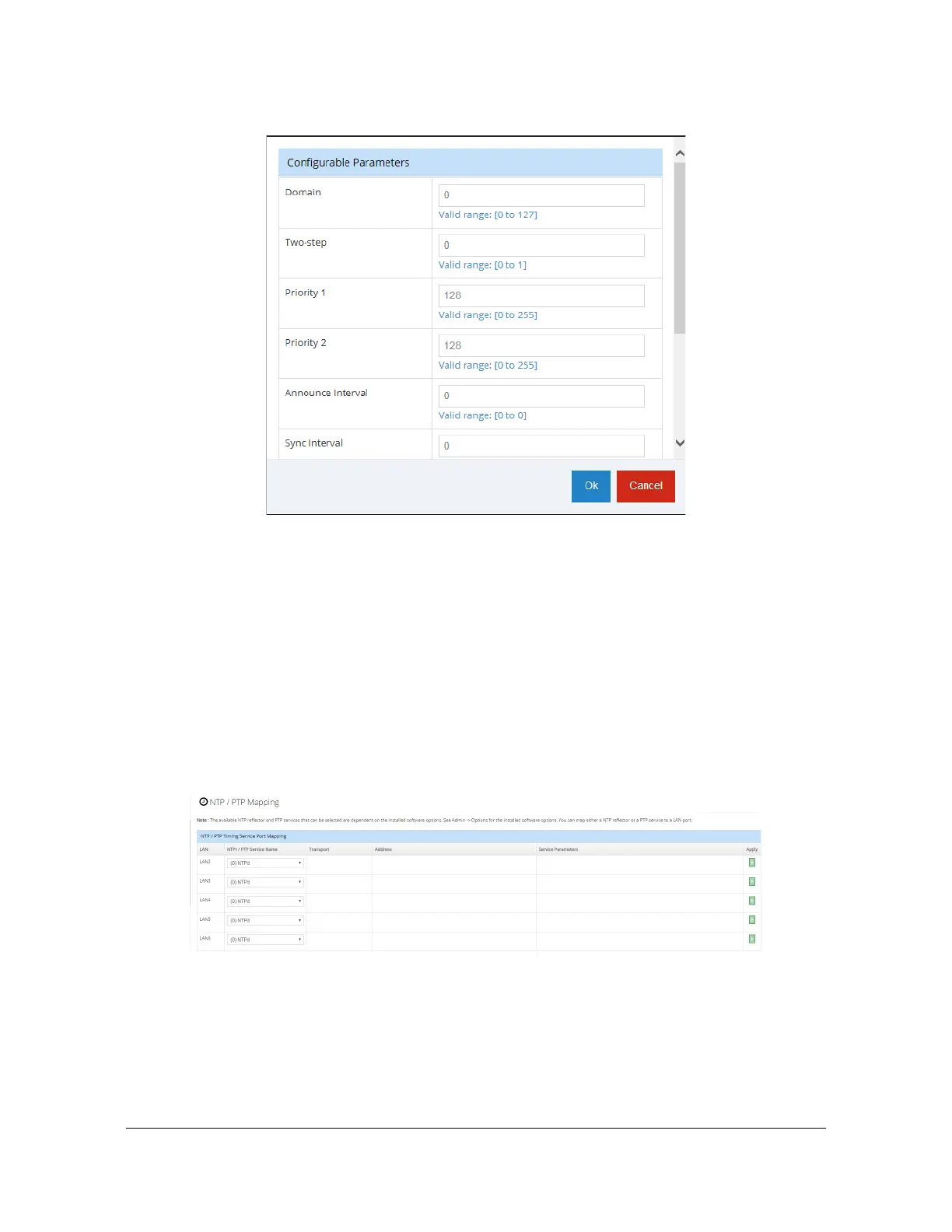

Figure 4-24. PTP Configuration Parameters
NTP / PTP Mapping Window
Use this window to map either a NTP reflector or a PTP service to a LAN port. See
Figure 4-25. A license is required for all timing services, other than NTPd. NTP
reflector requires security license. PTP input requires PTP input license. PTP
master requires PTP master license.
The NTP Reflector and PTP capability is supported on the LAN2, LAN3, LAN4,
LAN5, and LAN6 ports, but it is not supported on LAN1.
Figure 4-25. NTP / PTP Mapping Window
NTPr / PTP Status Window
Use this window to view status of ports with NTP reflector or PTP service. See
Figure 4-26. See Figure 4-27 for an expanded view of the NTPr/PTP Status for a
port.
