098-00720-000 Revision D1 – February, 2018 SyncServer 600 Series User’s Guide 31
Chapter 1 Overview
Physical Description

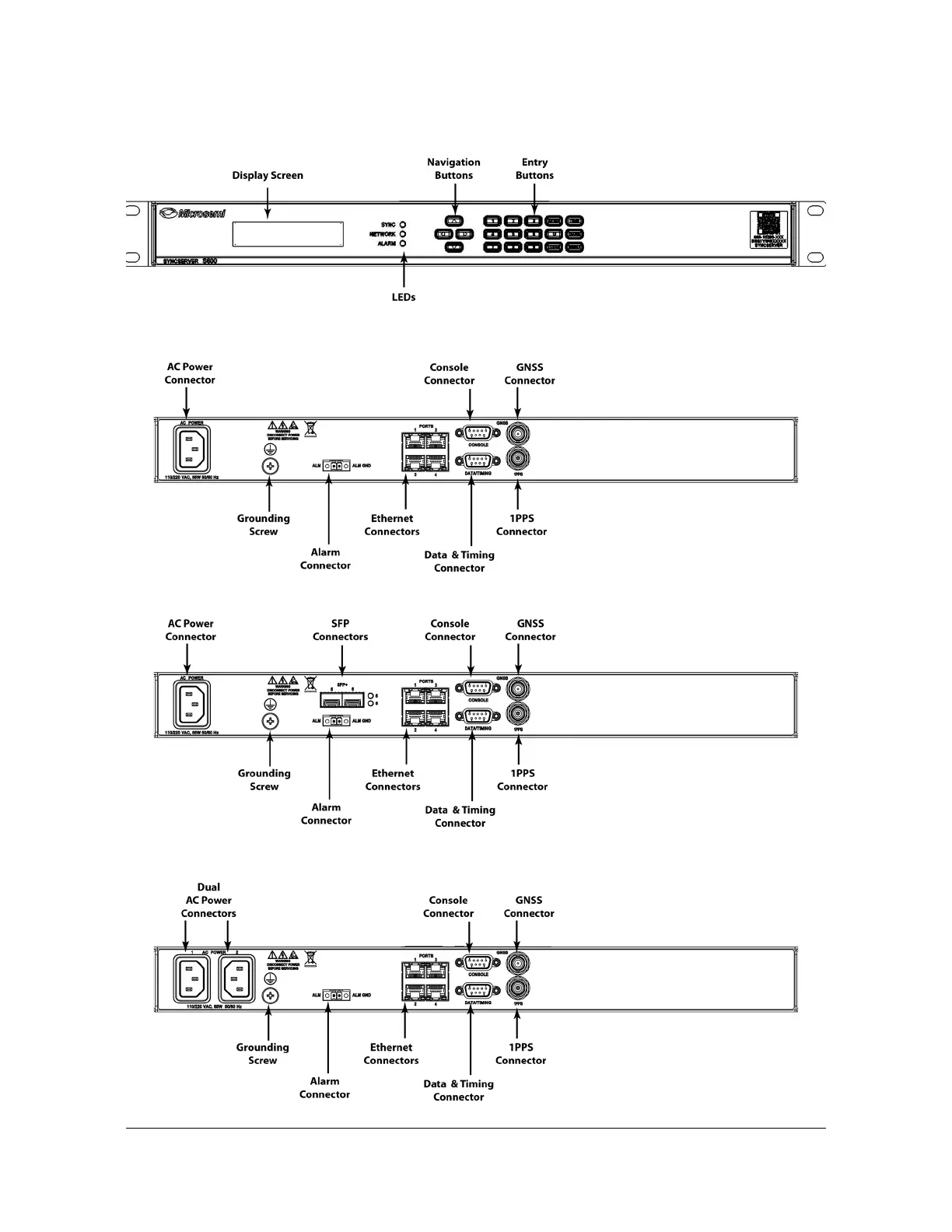

Figure 1-1. SyncServer S600 Front Panel
Figure 1-2. SyncServer S600 Rear Panel - Single AC Version
Figure 1-3. SyncServer S650 Rear Panel - Single AC Version with 10 GbE
Figure 1-4. SyncServer S600 Rear Panel - Dual AC Version
