Chapter 6 Provisioning
Provisioning Outputs
Using the setup from Figure 6-23 where we have mapped a PTP Master onto LAN4,
select LAN4 to observe its status. As can be seen in Figure 6-26 the specific service
in use is identified (fully configured on Figure 6-18) along with general status,
including details about content being transmitted in the PTP Announce messages.
A reduced set of status can be seen at Dashboard > Timing Services Status as
shown in Figure 6-27.
When the mapped service is NTPr, the status provided is similar to what is seen for
NTPd (see Figure 6-25). Using the example from Figure 6-26, where an NTPr
service is mapped to LAN2, the status examples are shown in Figure 6-28 and
Figure 6-29.

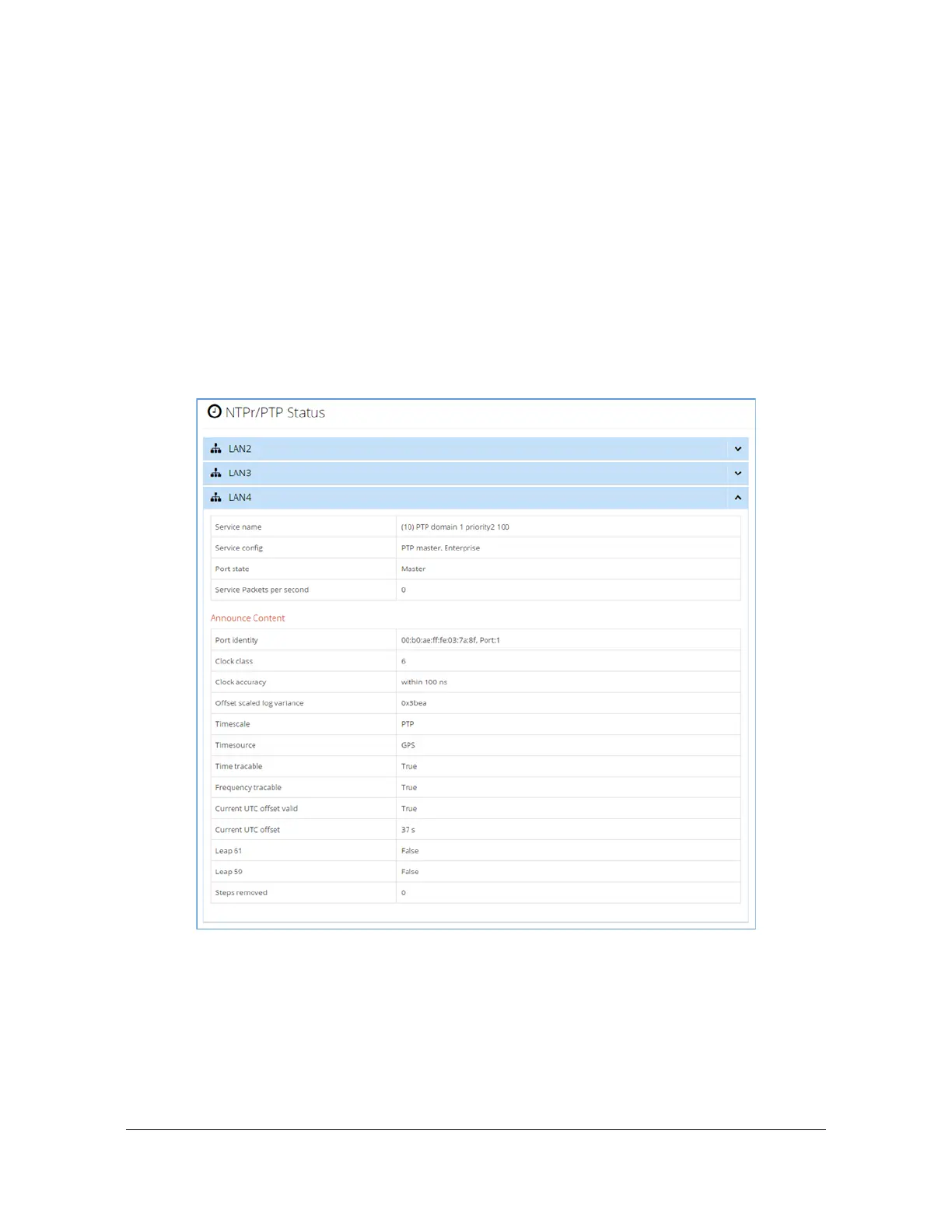

Figure 6-26. Example status on Network Timing > NTPr/PTP Status form (PTP Master)
