Microsemi SyncServer S600 - Syncserver S650 Rear Panel - Single AC Version with 10 Gbe; Syncserver S650 Front Panel; Syncserver S650 Rear Panel - Dual AC Version

098-00720-000 Revision D1 – February, 2018 SyncServer 600 Series User’s Guide 33
Chapter 1 Overview
Physical Description

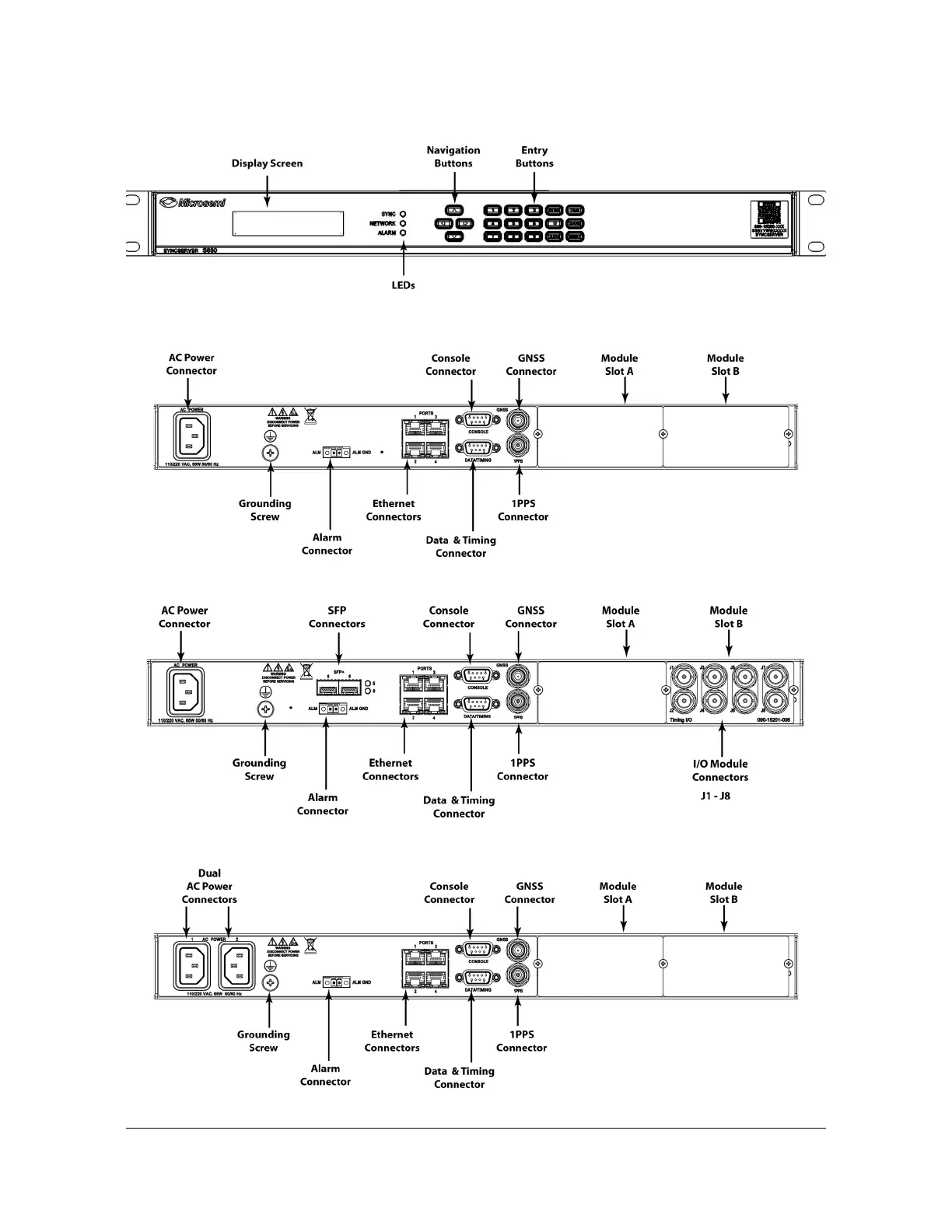

Figure 1-8. SyncServer S650 Front Panel
Figure 1-9. SyncServer S650 Rear Panel - Single AC Version
Figure 1-10. SyncServer S650 Rear Panel - Single AC Version with 10 GbE
Figure 1-11. SyncServer S650 Rear Panel - Dual AC Version
