32 SyncServer 600 Series User’s Guide 098-00720-000 Revision D1 – February, 2018
Chapter 1 Overview
Physical Description

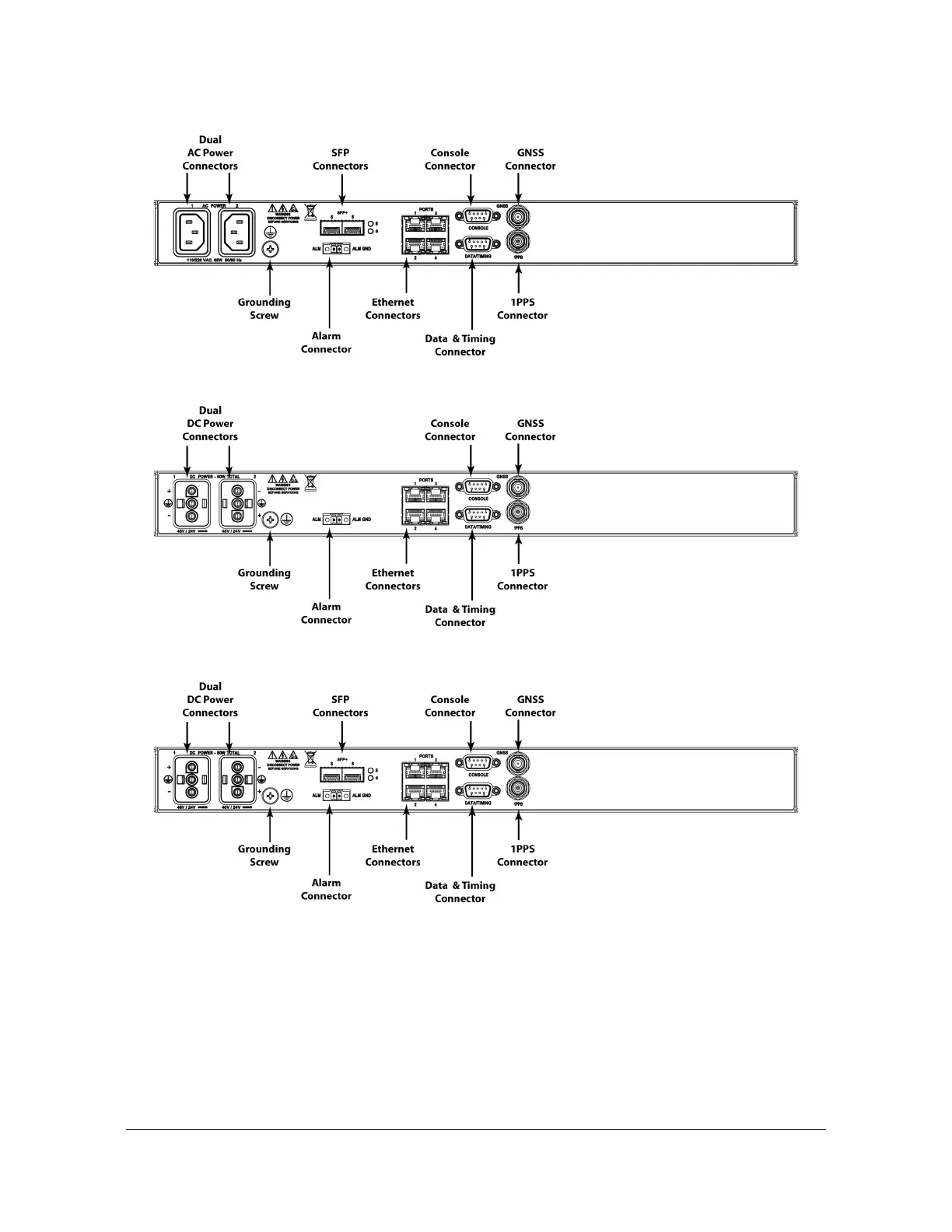

Figure 1-5. SyncServer S600 Rear Panel - Dual AC Version with 10 GbE
Figure 1-6. SyncServer S600 Rear Panel - Dual DC Version
Figure 1-7. SyncServer S600 Rear Panel - Dual DC Version with 10GbE
