Chapter 7 Maintenance, Troubleshooting & Part Numbers
SyncServer S6x0 Part Numbers

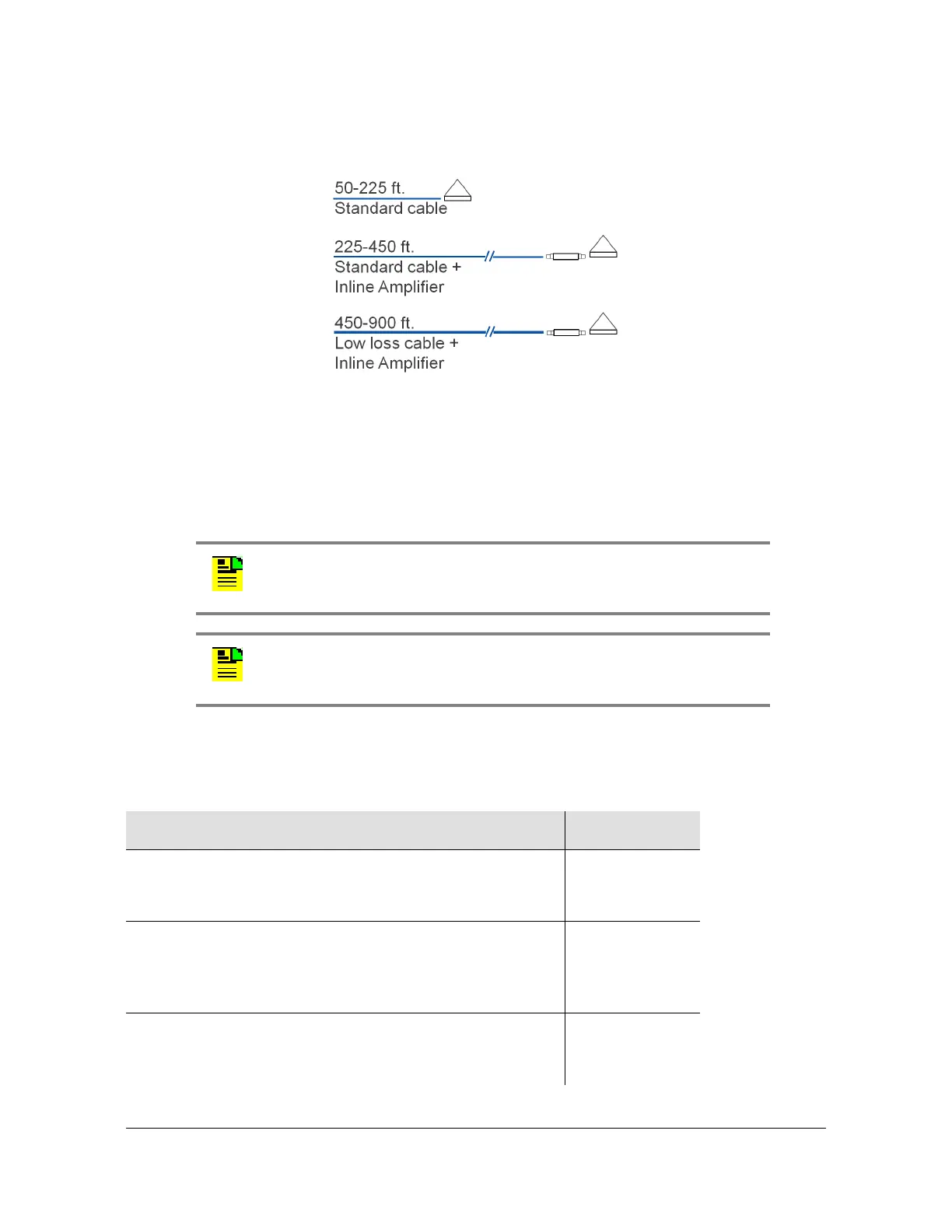

Figure 7-1. Antenna Kits for Long Cable Runs
The antenna kit (part number 093-15202-001) includes a short SyncServer adapter
cable (part number 060-00039-000) with BNC(m)-N(f) connectors. All primary
antenna cables use N(m) connectors on either end. A single cable must be used
between the adapter cable and the next accessory (lightning arrestor, inline
amplifier, or antenna). Lightning arrestors include a 25 ft. cable to connect to the
next accessory (inline amplifier or antenna).
.
Note: Lightning Arrest Kit includes 25 ft. cable. Total length includes
the additional cable that is part of the Lightning Arrestor if selected.
Note: To receive GLONASS or BeiDou signals, the antenna system
should be made of GLONASS and/or BeiDou compatible
components.
Table 7-7. GNSS Antenna Kits & Accessories
Antenna Kit Part Number
Kit:
Total length: 50 ft,
Cable: 50 ft; antenna kit (093-15202-001)
990-15202-050
Kit:
Total length: 75 ft,
Cable: 50 ft; lightning arrestor (112-43400-00-3);
Cable: 25 ft; antenna kit (093-15202-001)
990-15202-075
Kit:
Total length: 100 ft,
Cable: 100 ft; antenna kit (093-15202-001)
990-15202-100
