098-00720-000 Revision D1 – February, 2018 SyncServer 600 Series User’s Guide 37
Chapter 1 Overview
Physical Description

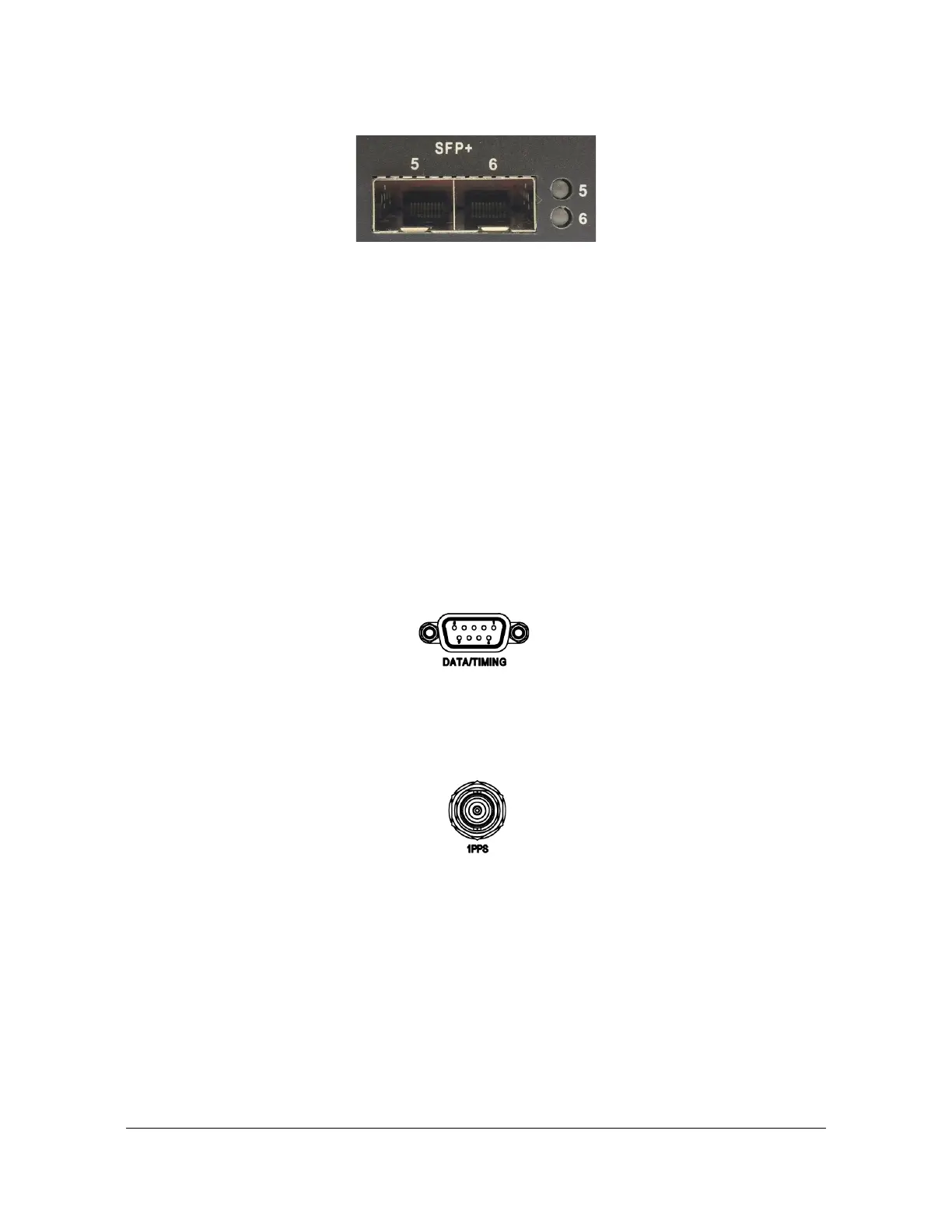

Figure 1-21. 10 GbE Input/Output Connections
Output Connections
Serial Data/Timing Output Connection
The serial data/timing port connection is made through a DB-9 female connector on
the rear panel of the SyncServer S6x0, as shown in Figure 1-22. When connecting
to this port, use a shielded serial direct connect cable.
The dedicated Data/Timing port is provided to output NMEA-0183 or NENA PSAP
strings. If NENA is selected, the serial Console port also supports the two-way
timing aspects of the standard. In addition, the F8 and F9 Microsemi legacy time
strings are available.
With the optional time interval measurement option, this port can alternatively be
used to send timestamps and measurements.
Figure 1-22. Serial Data/Timing Connection
1PPS Output Connection
The SyncServer S6x0 provides a BNC female connector (Figure 1-23):
Figure 1-23. 1PPS Output Connection
