Dynamics and EQ 323
PRO Series Live Audio Systems
Owner’s Manual

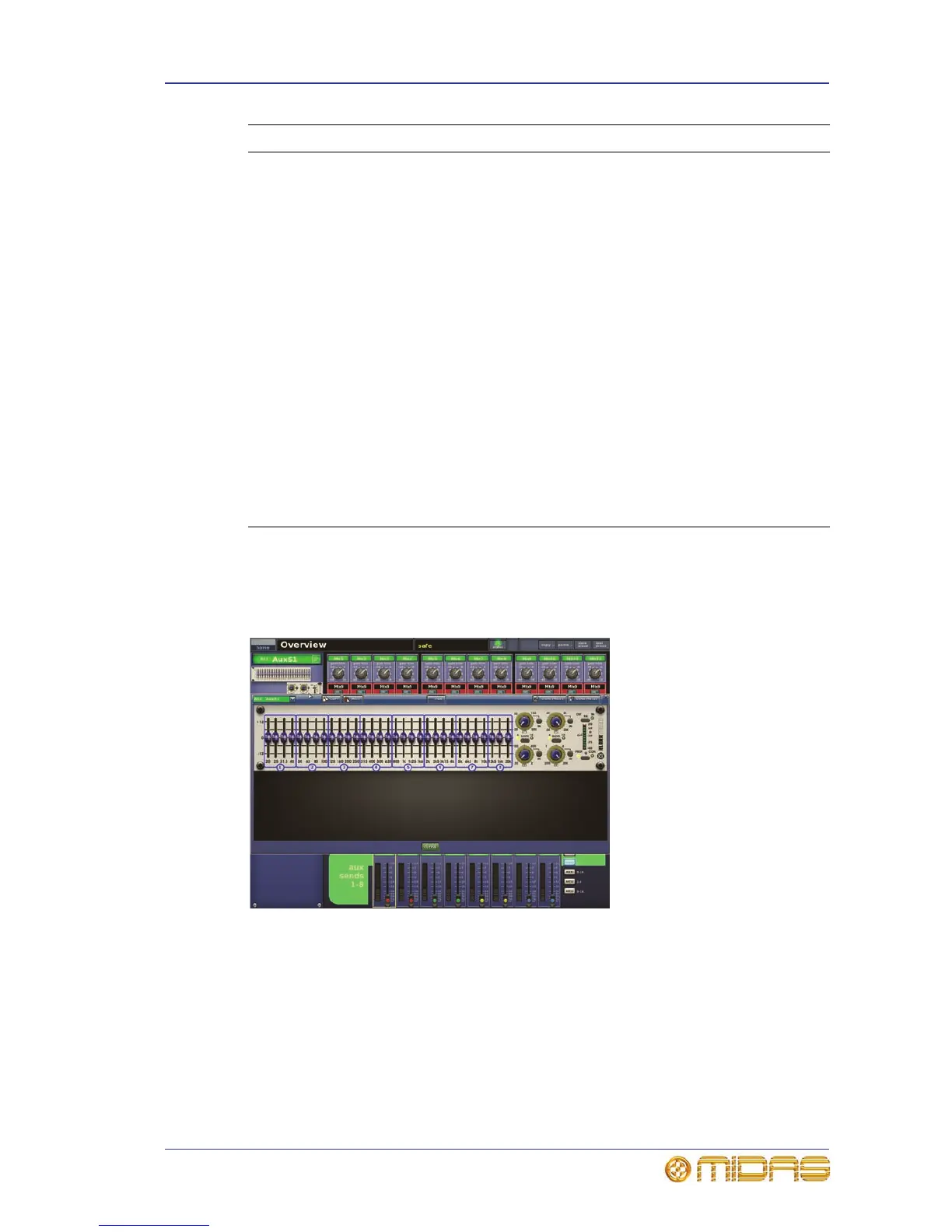

GEQ
The GEQ is similar to the ones found in the Graphic EQs screen and can also be
operated using the assignable controls. For information, see Chapter 15 "Graphic
Equaliser (GEQ)" on page 157.
>> To open the GEQ window
1 Select the output. Its ‘overview’ display will appear in the channel strip.
2 In the GUI channel strip, open the EQ processing area (see “To select a
processing area” on page 63).
3 gain control knob Adjusts signal gain in the range -16dB to +16dB. On
the graph in the EQ processing area (GUI channel
strip), causes the envelope to move up/down,
inverting as it passes the origin.
4 width control knob Adjusts the signal bandwidth in the range 0.1 Oct to
3.0 Oct. On the graph in the EQ processing area (GUI
channel strip), causes the base of the envelope to
widen. (Not available for shelving modes.)
5 freq control knob Adjusts signal frequency. The range is band-
dependent (see “Main input channel functions” on
page 364). On the graph in the EQ processing area
(GUI channel strip), causes the envelope to move
left/right.
6 SHAPE button Changes the shelving mode on treble and bass bands.
For a description of each mode, see “Description of
the output channel EQ modes” on page 347.
7 Shelving symbol Diagrammatic representation of the shelving
envelope.
8 Graph EQ envelope graph (see “EQ graph” on page 325).
When “OFF” is displayed, EQ is switched off.
Item Control Function
