MIMAKI CF2 Series User Manual

4-10
SETTING THE CUTTER STROKE [MODE SET] > [Z STROKE]
For data on a pattern that needs frequent lifting/lowering of the tangential cutter and the marking roller, the lifting
amount of the tool should be shortened. This will reduce the total period of time required for cutting.
Set values
7 mm: The tool goes up 7 mm above the surface of a work.
4 mm: The tool goes up 4 mm above the surface of a work.
1. Press the key several times until the LCD indicates
page 3 of the LOCAL MENU.
2. Select the [MODE SET].
3. Select one of the following as a setting for the [Z
STROKE].
7mm, 4mm
.
4. Enter the input values.
Press the key to enter the input values. If you do not enter the
input data,press the key.

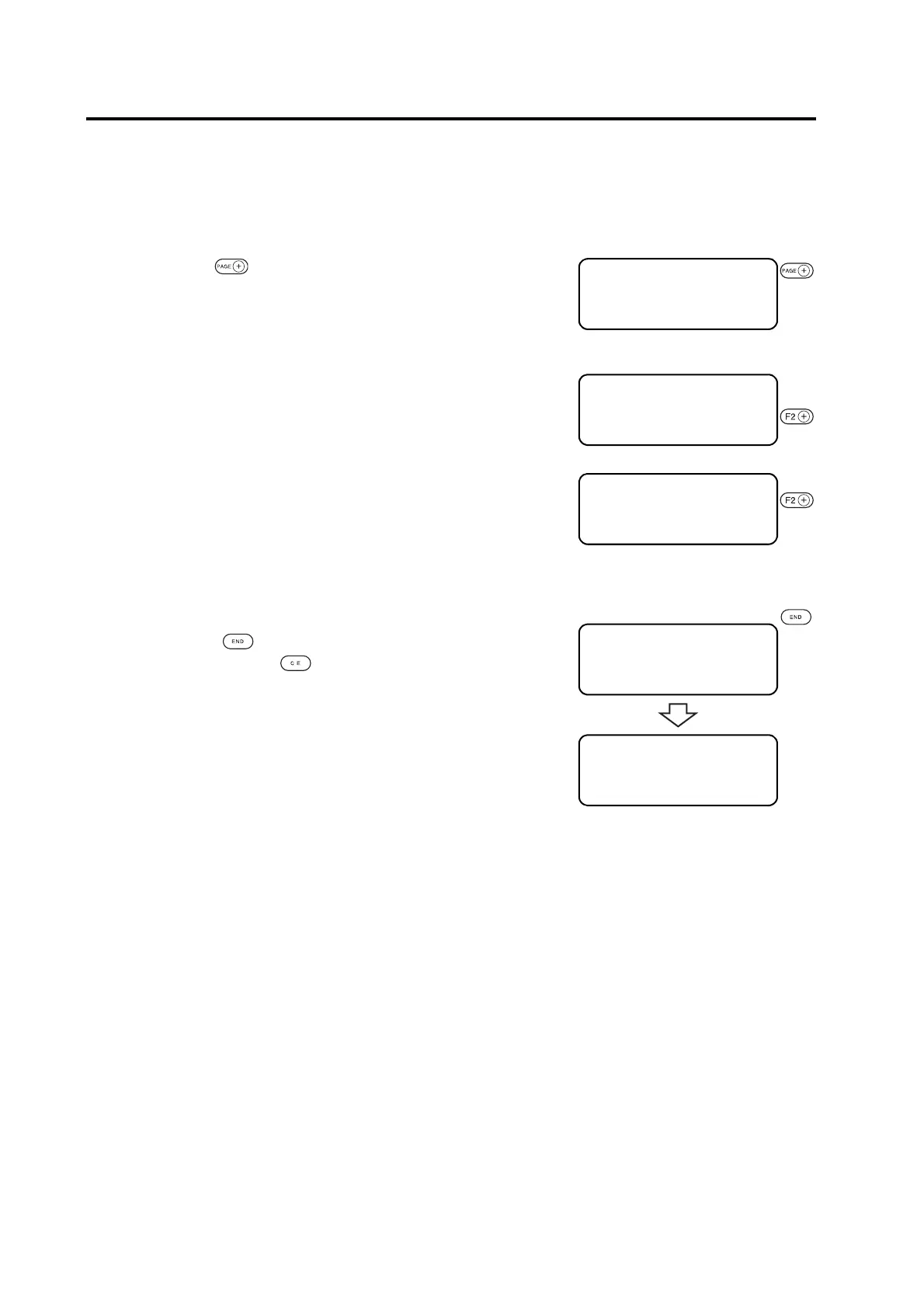

［LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
［LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
< MODE SET > １ ／ ６
Z STROKE ＊ ７ ｍｍ ＞
MULTI–PASS ――― ＞
RESERVE
< MODE SET > １ ／ ６
Z STROKE 4 ｍｍ ＞
MULTI–PASS ――― ＞
RESERVE
［LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
