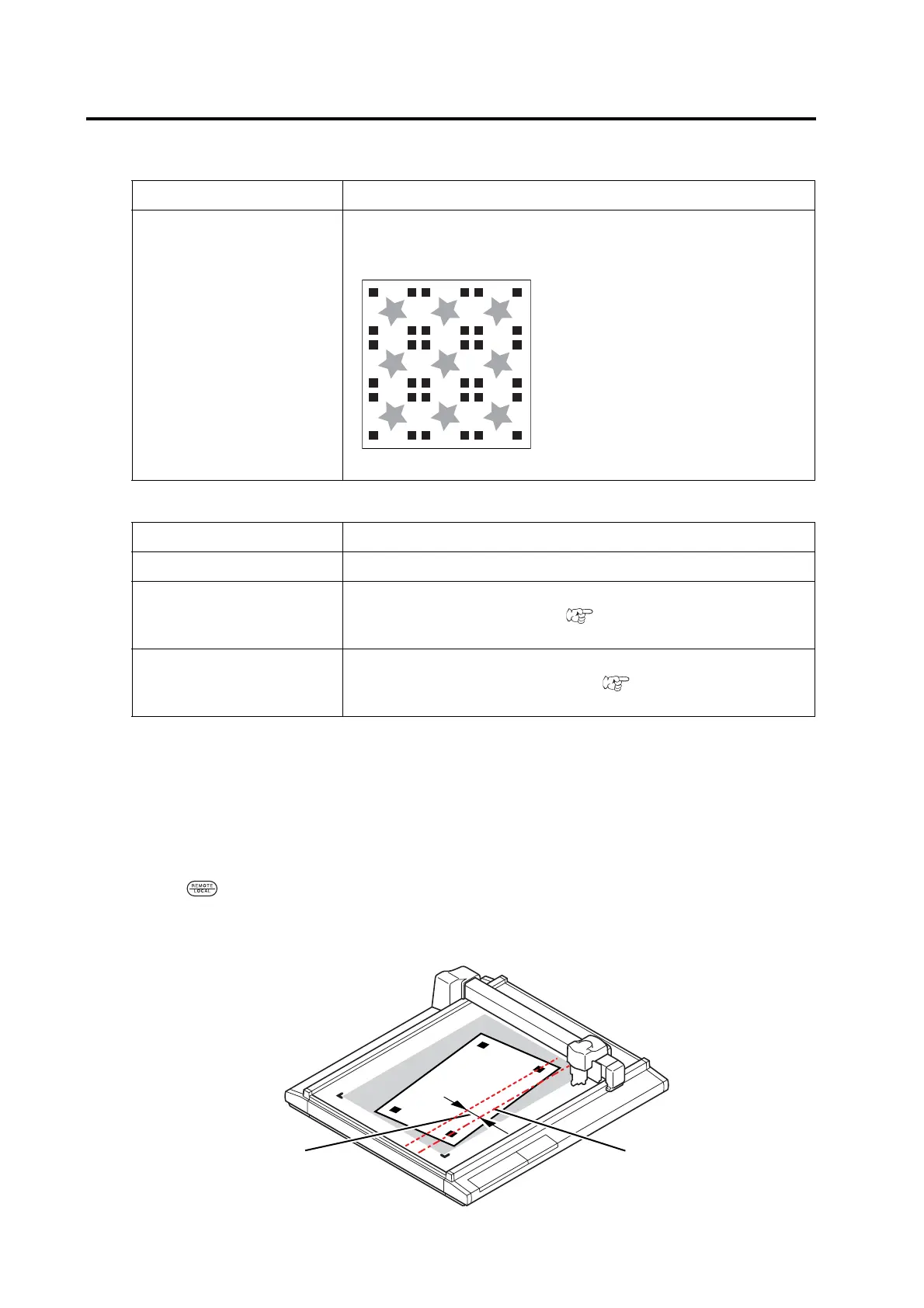

5-12
X copy Ycopy :
SCALE : Select “OFF” when using FineCut.
Settings for detect marks
Make sure that work is not curled.
When using a cuttting software having no mark function, use a work which has neither stains nor
images in the area of TP1 - TP3 and TP1-TP2.
Check sheet skew with a light pointer
Press the key on the jog mode, the light pointer will light up.
Move the carriage between TP1 and TP3 with a jog key to check the sheet skew against the line of the light
pointer. Correct the sheet skew by aligning with the line.
Setting Description
1 to 99 Effective when the same pattern is multi-printed at regular intervals.
Cuts automatically the preset number of sheets while detecting register marks
consecutively based on the first data.
Setting Description
OFF The plotter will not perform scale compensation when detect the register mark.
AFTER With this setting, enter the data X Y size after executing the register mark detec-
tion and perform scale compensation.( P. 5-13)
If Mark detect is set to “1pt”, scale compensation is not executed.
BEFORE With this setting, enter the data X Y size before executing the register mark
detection and perform scale compensation . ( P. 5-13)
If Mark detect is set to “1pt”, scale compensation is not executed.
When the number of copies can be set on the
application software, like on the supplied
FineCut, set the value to [1]
Sheet skew
Moving line of the
light pointer
To Next Page
