SETTING THE NUMBER CUT FUNCTION [MODE SET] > [MULTI-PASS]
The same data can be cut as many as five times by changing the pressure values. This allows the device to efficiently
cut a work that cannot be thoroughly cut out by performing cutting once.
However, the number cut function is disabled in unit B.
A period of time required to judge a separating point between pieces of data can also be specified.
The device starts the multi-pass unless the device receives next piece of data within the specified period of time.
Set values
Period of time required for judgment: Off, 5, 15, 30, 45, 60 Sec
PRESS 1: Off, 500 to 5000 g (in increments of 50 g)
PRESS 2: Off, 500 to 5000 g (in increments of 50 g)
PRESS 3: Off, 500 to 5000 g (in increments of 50 g)
PRESS 4: Off, 500 to 5000 g (in increments of 50 g)
PRESS 5: Off, 500 to 5000 g (in increments of 50 g)
* In the RC model, 1000 g to 5000 g. In the RT model, 300 g to 1500 g.
If the PRESS 1 to PRESS 5 are set to “off,” the device will not perform the multi-pass.
1. Press the key several times until the LCD indicates
page 3 of the LOCAL MENU.
2. Select the [MODE SET].
3. Select the [MULTI-PASS].
4. Establish the [JUDGMENT TIME].
Off, 5, 15, 30, 45, 60 (s)
5. Specify cutting pressure values for the first and second
cutting operations.
6. Press the key several times to invoke the 2nd page
of the [MULTIPASS].

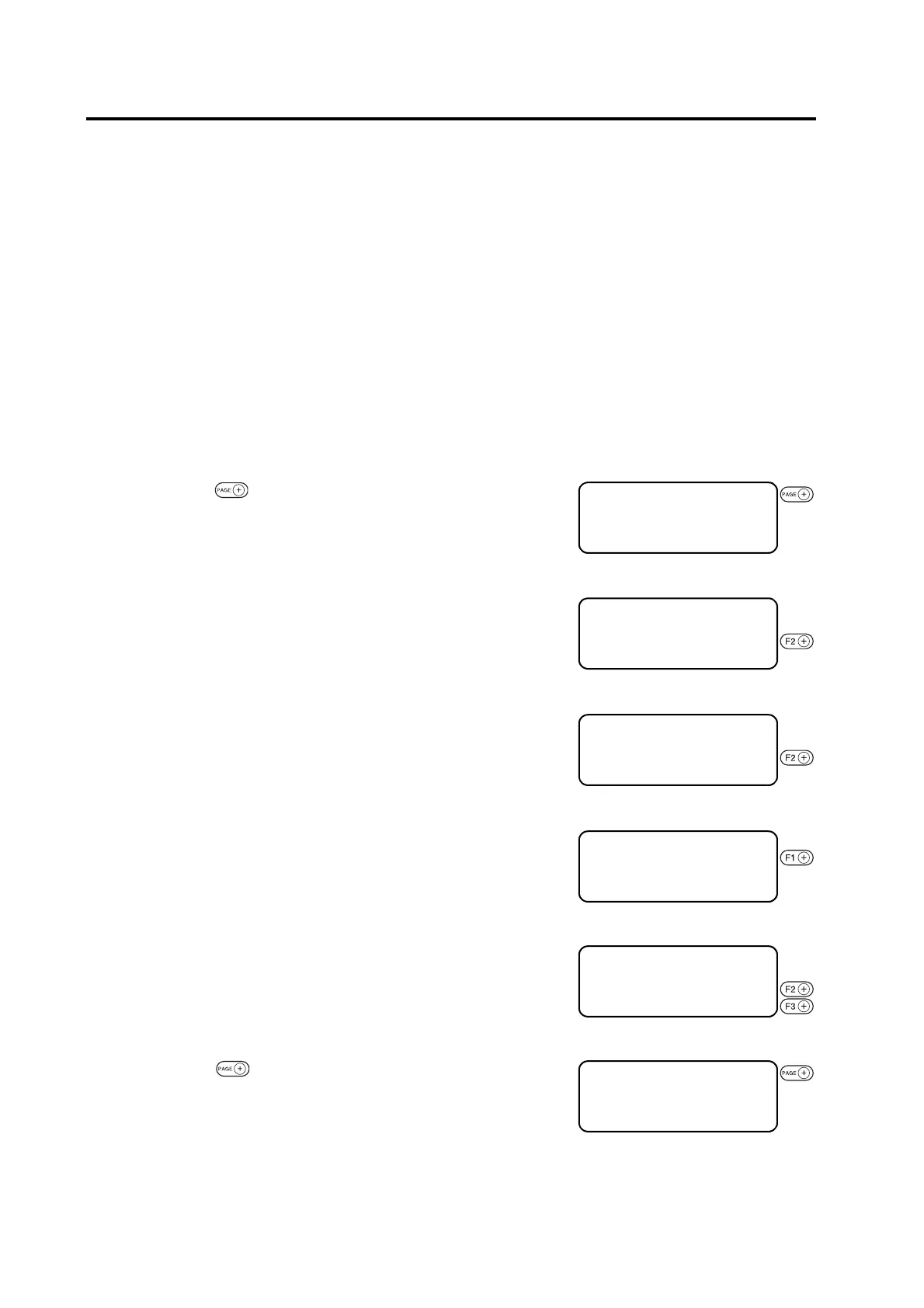

[LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
[LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
< MODE SET > １ ／ ６
Z STROKE ＊ ７ ｍｍ ＞
MULTI–PASS ――― ＞
RESERVE
< MULTI–PASS > １ ／ ２
JUDGMNT TIME １ ５ ＞
PRESS 1 ∗ OFF ＞
PRESS 2 ∗ OFF ＞
< MULTI–PASS > １ ／ ２
JUDGMNT TIME １ ５ ＞
PRESS 1 ５００ ｇ ＞
PRESS 2 ５００ ｇ ＞
< MULTI–PASS > １ ／ ２
JUDGMNT TIME １ ５ ＞
PRESS 1 ５００ ｇ ＞
PRESS 2 ５００ ｇ ＞
