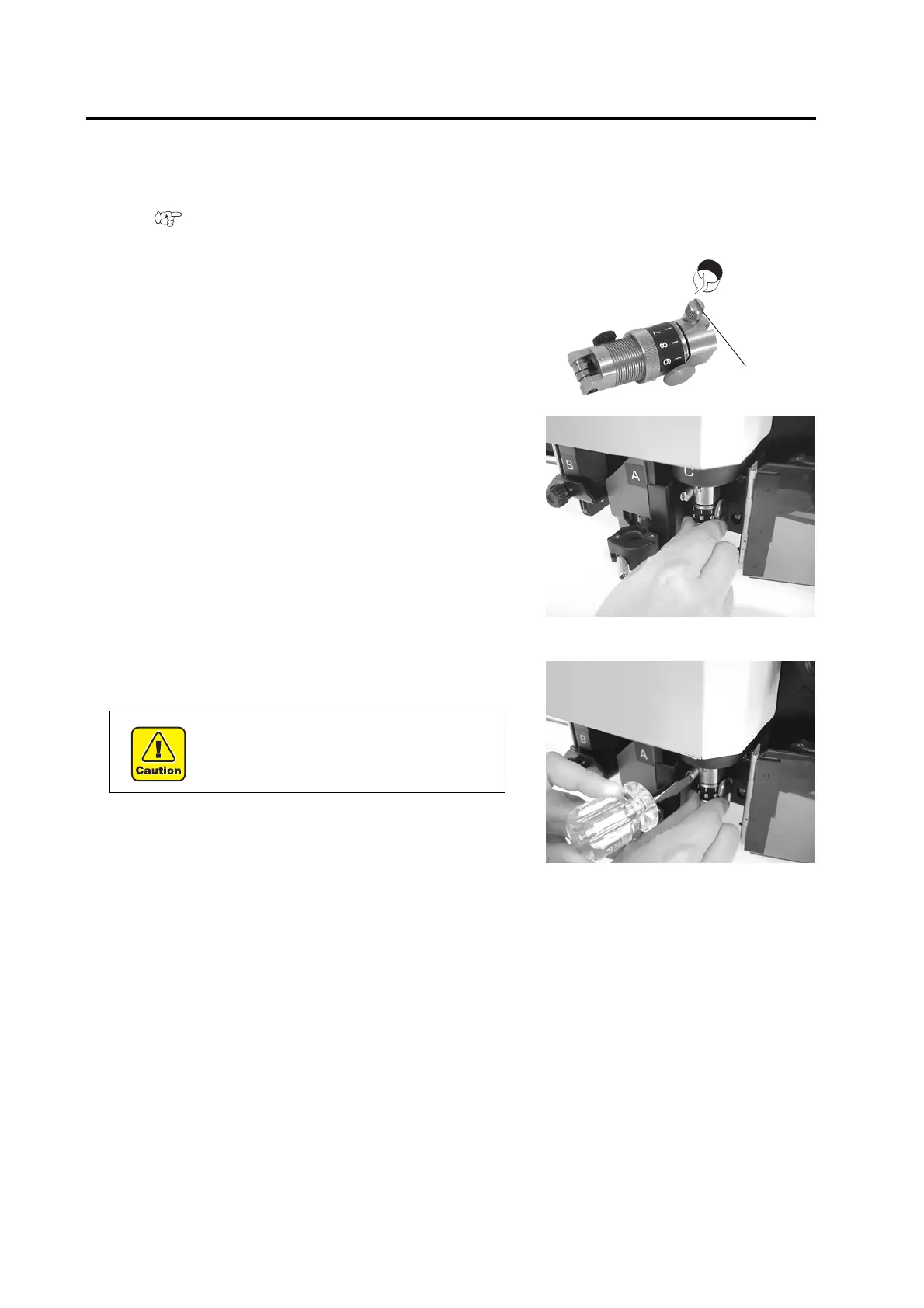

Attaching the tangential cutter
If the head is in the lower position and a tangential cutter cannot be installed, lift the head. (“Adjusting the height of
the head ” P. 2-19)
1. Loosen the stopper screw in the tangential cutter.
Turn the stopper screw counterclockwise to loosen it.
2. Insert the pin of unit C into the tangential cutter
while fitting the pin in the groove on the cutter.
3. Tighten the stopper screw with the screwdriver sup-
plied with the device as an accessory.
• Securely fix the cutter holder.
If it is not securely fixed, normal product
quality cannot be achieved.
