MIMAKI CF2 Series - Operation Panel

CONFIGURATION AND FUNCTION
1-9

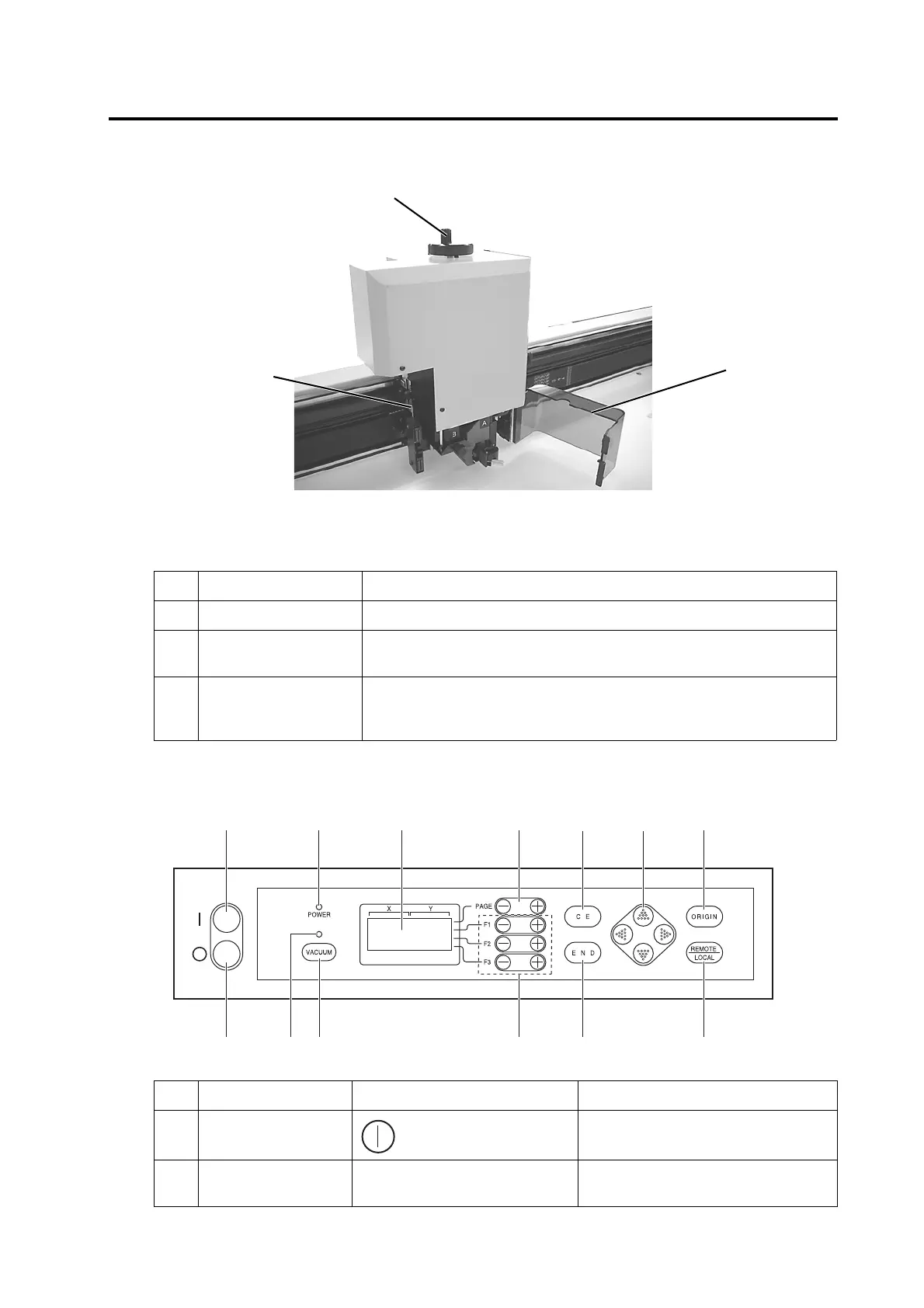

Left-hand side face
Operation panel
Name Function
1 Height adjusting knob Used to adjust the height of the head.
2 Height adjusting bar Used to adjust the height of the head in accordance with the thickness of a work to
be used.
3 Head safety cover Protects the operator from the blades. If this cover is opened while the head is
operating, the plotter stops and recovery is not possible. In this case, power the
device off and then back on.
Name Representation Function
1 POWER ON switch Used to turn ON the power to the device.
2 POWER lamp Lights up (in green) when the power to the
device is turned on.
1
2
3
1
2
3
456
7
8
910111213
