MIMAKI CF2 Series User Manual

Matching the functions of the device to the specifications of the computer
1-21
5. Enter the input values.
Press the key to enter the input key to enter the input val-
ues.
If you do not enter the input data, press the key.
Setting the response value with respect to the valid area [MODE SET]> [OH UNIT]
The response value that is to be transmitted to the CAD in response to a valid area coordinate output command for the
device is selected between the following.
Set values
INITIAL VALUE: The value of the max. valid cutting area of the device is transmitted to CAD.
SET VALUE: The value set in the “Setting the cutting area” on the LOCAL MENU. P. 2-36)
1. Press the key several times until the LCD indicates
page 3 of the LOCAL MENU.
2. Select the [MODE SET].
3. Press the key several times until the LCD indicates
page 4 of the [MODE SET].
4. Set the [OH UNIT] to one of the following.
Press the key to change the selected item alternately.
INITIAL VALUE, SET VALUE
5. Enter the input values.
Press the key to enter the input values.
If you do not enter the input data, press the key.

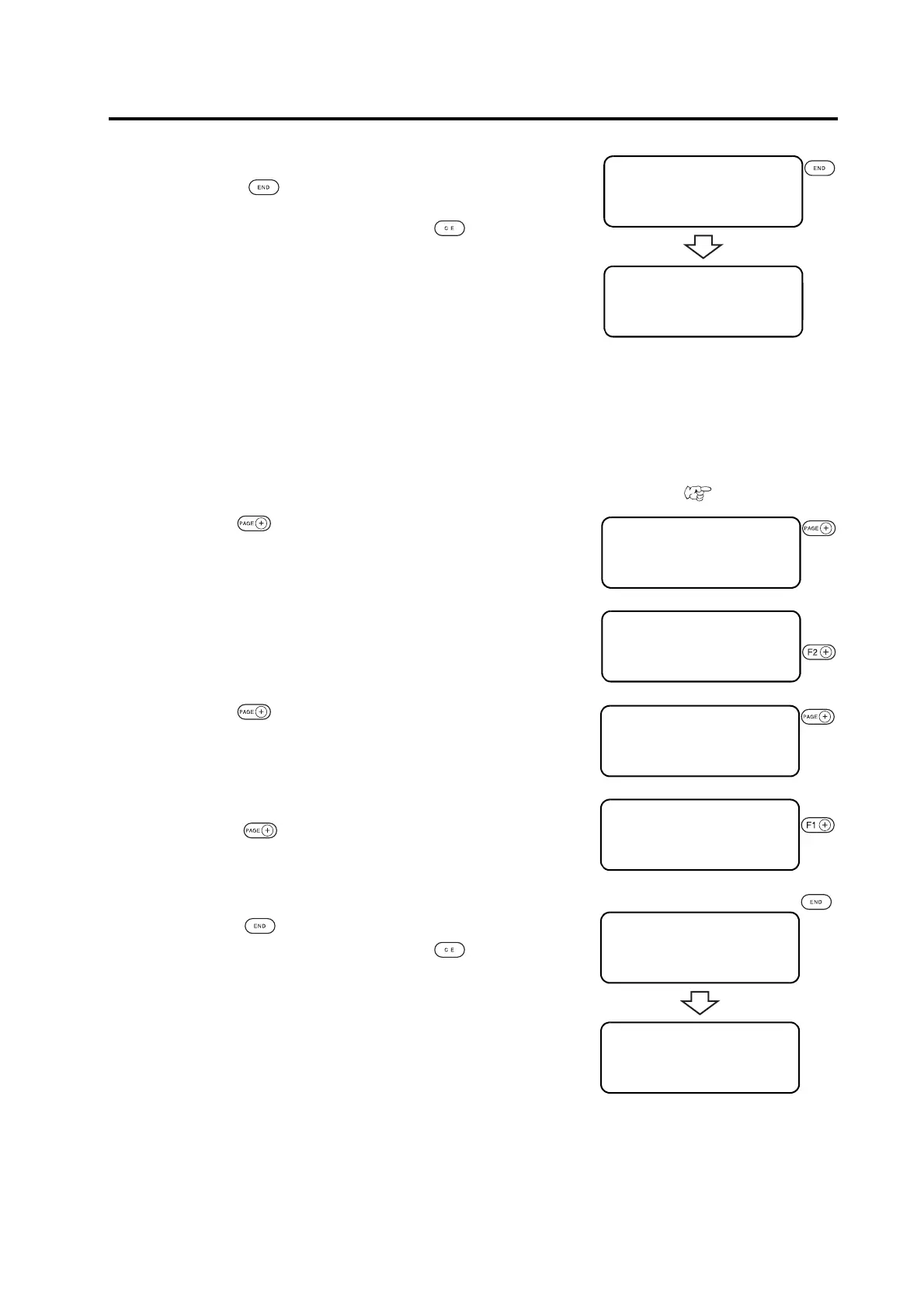

＜MODE SET＞ ３／６
ROTATE ∗ + ９ ０ ° ＞
COMMAND Ｍ Ｇ Ｌ - Ｉ Ｉ Ｃ ３ ＞
CMD SW VALID
［ LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
［LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
［ LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
＜MODE SET＞ １／６
Z STROKE *7ｍｍ ＞
MULTI–PASS ――― ＞
バキューム ＊オー ト オ フ＞
＜MODE SET＞ ４／６
OH UNIT ∗ INIT val ＞
ORIGIN ∗ CENTER ＞
Ｇ Ｄ Ｐ ∗ 0.025 mm ＞
＜MODE SET＞ ４／６
OH UNIT SET val ＞
ORIGIN ∗ CENTER ＞
Ｇ Ｄ Ｐ ∗ 0.025 mm ＞
［LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
