MIMAKI CF2 Series User Manual

2-8

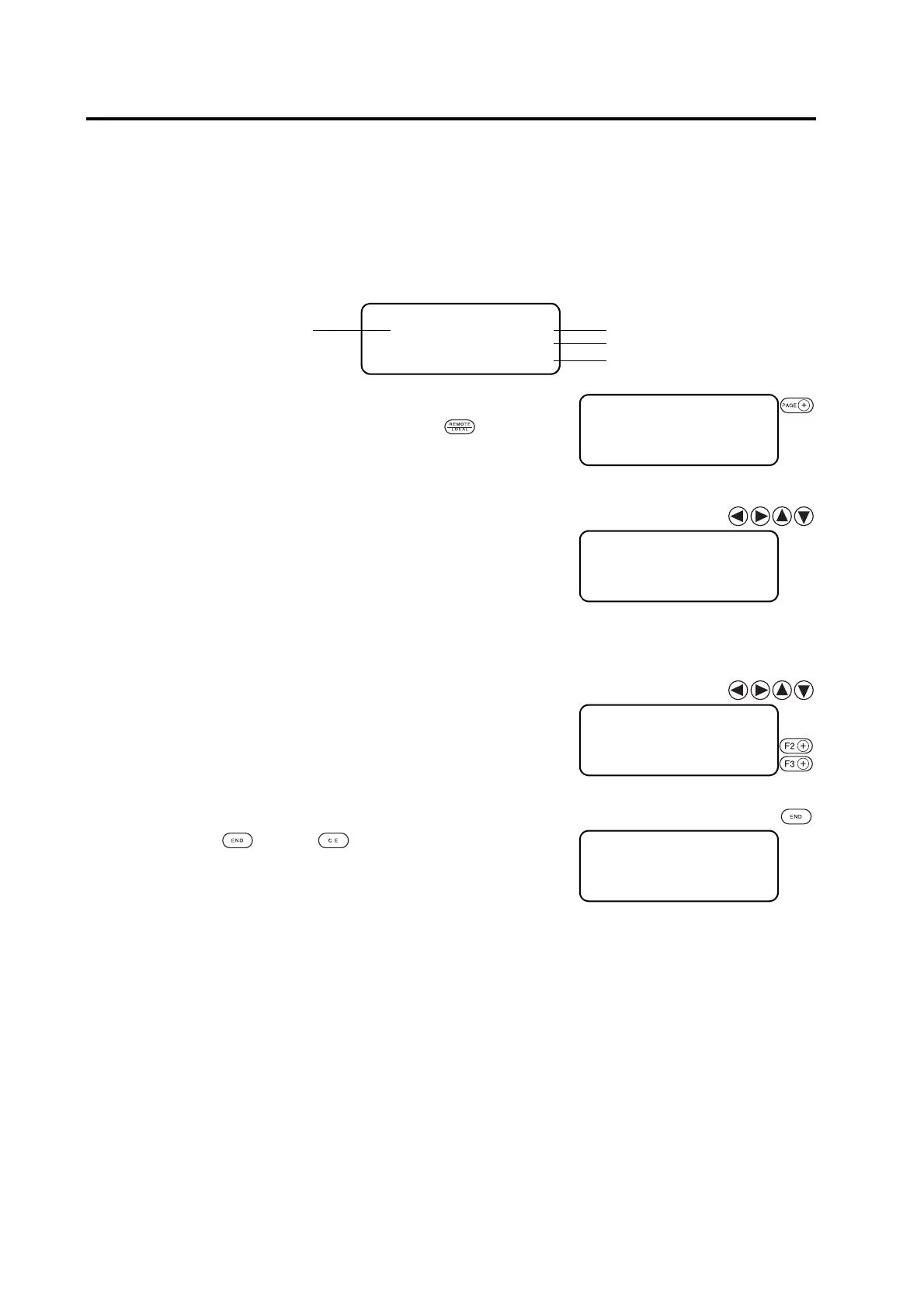

Moving the head by the jog keys
Follow this procedure when attaching a tool or executing test cut or sample cut.
Press a jog key to select the jog mode, and the following two functions can be carried out to move the head to a
desired position with accuracy.
• Moving speed of the head (high-speed, medium-speed, low-speed)
• Moving the tool up/down
Coordinates as from the command origin are indicated on the coordinate indicating portion of the screen.
1. Invoke the LOCAL menu on the screen.
If the device is in the REMOTE mode, press the key to select
the LOCAL mode.
You may open any page of the menu from among pages 1 to 4.
2. Press one of the jog keys once.
The device enters the travel mode.
Coordinates of the tip of tool that is currently specified are dis-
played.
3. Move the head by the jog keys.
Coordinates of the tip of tool that is currently specified are dis-
played.
Change the moving speed or move up/ down the tip of tool when
necessary.
4. Exit from the travel mode.
Press the key or the key.
This restores the procedure 1 on the screen.
< MOVE > [ｍｍ]
３ ８ ２． ６ ５ ６ ５． ０
SPEED FAST ＞
PEN UP ＞
X coordinate
Y coordinate
Moving speed of the head
Up/down of the tool
［[LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
< MOVE > [ mm ]
０ ０． ０ ０ ０ ０． ０ ０
SPEED FAST ＞
PEN UP ＞
< MOVE > [ｍｍ]
３８２． ６２ ５６５． ５５
SPEED FAST ＞
PEN UP ＞
［[LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
