MIMAKI CF2 Series User Manual

7-3

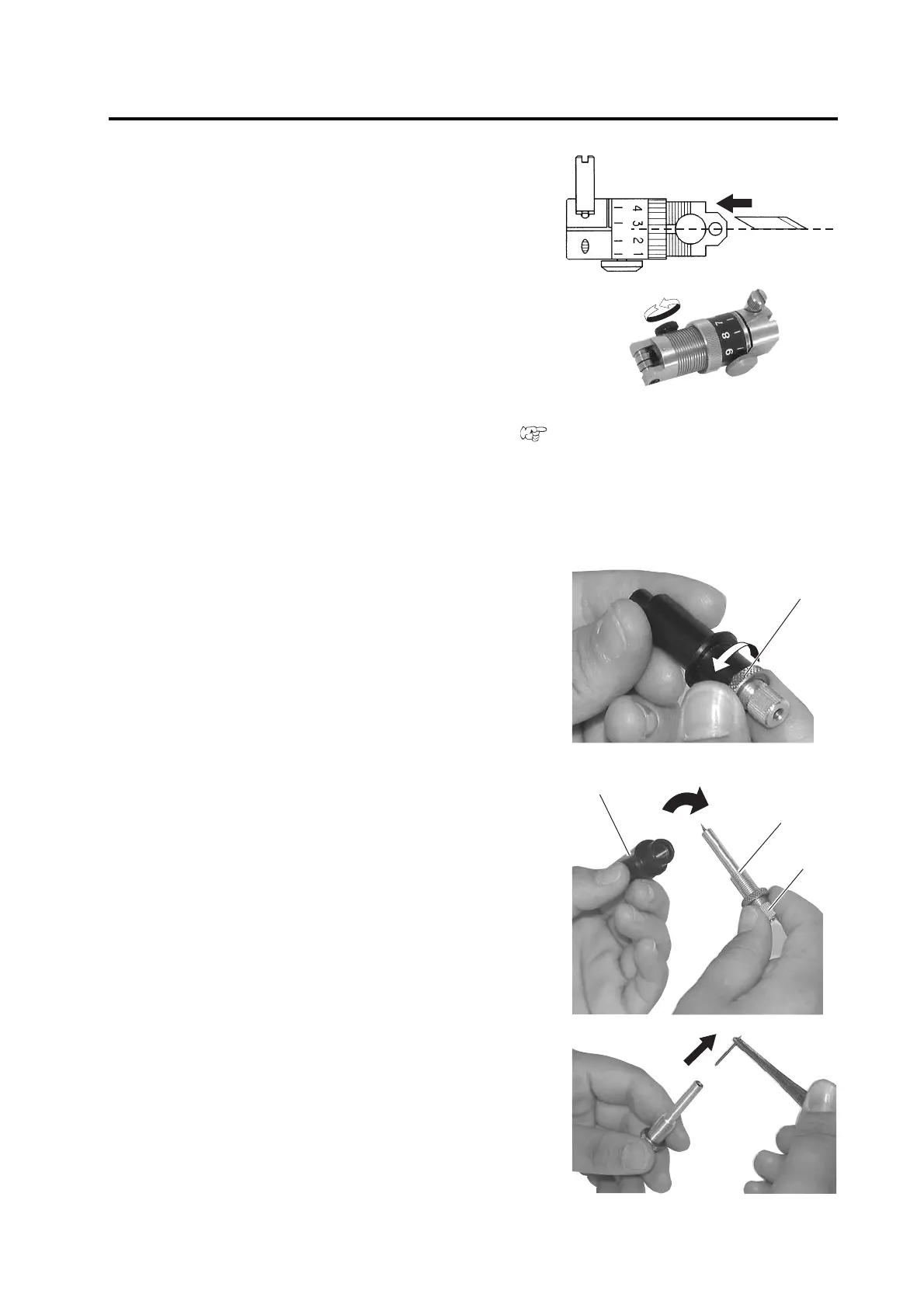

Insert the blade tip as illustrated in the sketch on the right.
3. Tighten the cutter stopper.
Turn the cutter stopper clockwise to tighten it.
4. Adjsut the projecting amount of the blade tip.
Refer to the explanation given in the “Adjusting the blade.” ( P. 2-11)
Swivel cutter blade
The method to replace a swivel blade is described below.
1. Loosen the locknut.
Turn the locknut counterclockwise to loosen it.
2. Turning the adjusting knob counterclockwise, draw
out the holder B from the holder A.
3. Replace the blade tip with a new one using a pair of
tweezers.
Locknut
Holder A
Holder B
Adjusting knob
