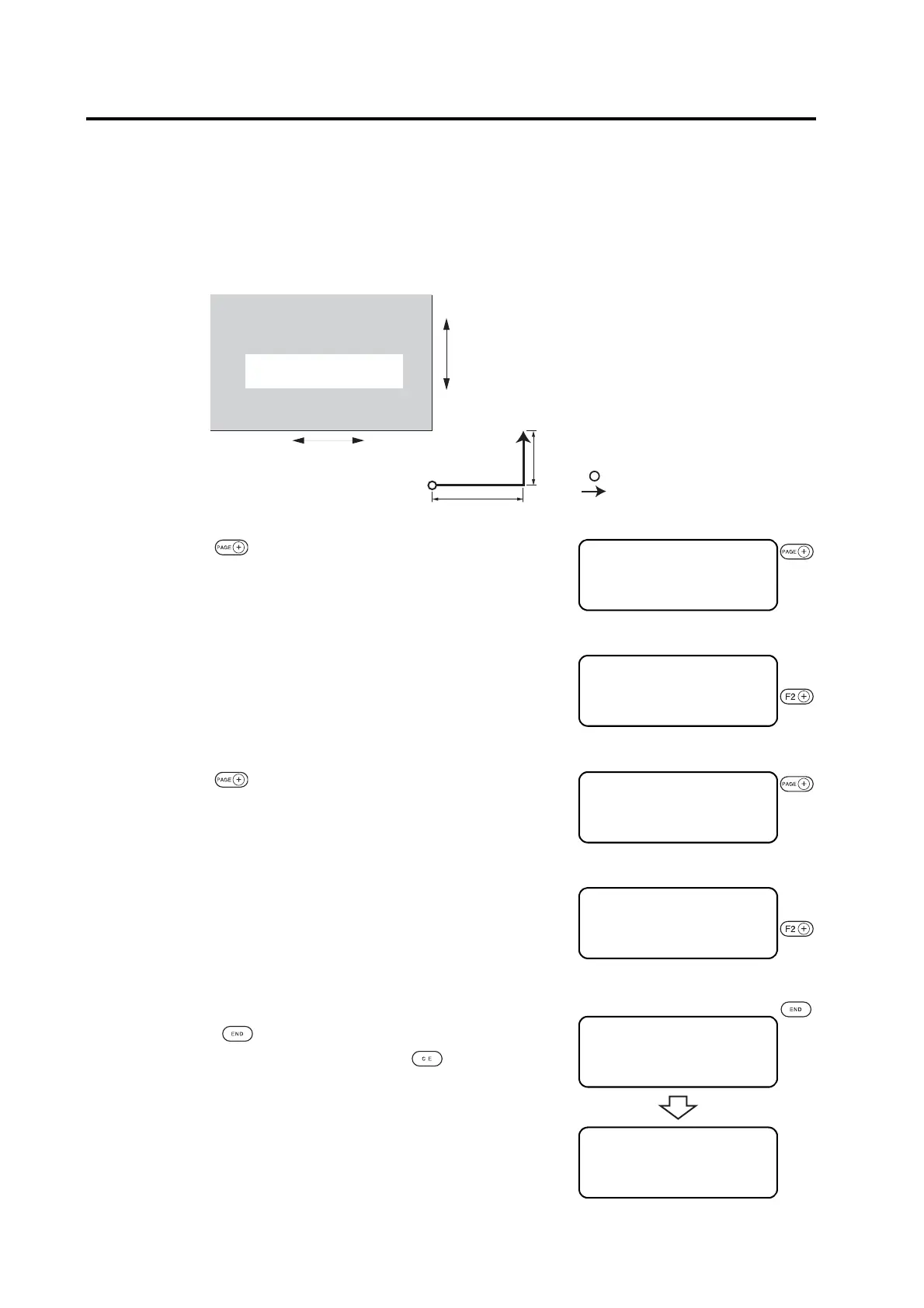

SETTING THE DUMMY CUT OPERATION OF THE SWIVEL BLADE [MODE SET] > [DUMMY CUT]
In the case where the swivel cutter is selected for the tool, a cutting operation is performed outside the effective cut-
ting area so as to orient the blade tip of the swivel cutter to the advancing direction.
Set values
on: Dummy cut is not performed.
off: Dummy cut is executed.
The illustration below gives the position at which dummy cut is performed and the size of dummy cut pattern.
1. Press the key several times until the LCD indicates
page 3 of the LOCAL MENU.
2. Select the [MODE SET].
3. Press the key several times until the LCD indicates
page 2 of the [MODE SET].
4. Select one of the following as a setting for the [DUMMY
CUT].
off, on
5. Enter the input values.
Press the key to enter the inputvalues.
If you do not enter the input data, press the key.
:Pointfromwhichcuttingstarts
:Directionofcutting
Maximum effective
cutting area
X-axis
Y-a xis
5mm
3mm
［LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
［LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
< MODE SET > １ ／ ６
Z STROKE ＊ ７ ｍｍ ＞
MULTI–PASS ――― ＞
RESERVE
< MODE SET > ２ ／ ６
AUTO VIEW ∗ 1 s ＞
DUMMY CUT ∗ ON ＞
ONE STROKE ∗ OFF ＞
< MODE SET > ２ ／ ６
AUTO VIEW ∗ 1 s ＞
DUMMY CUT ∗ ON ＞
ONE STROKE ∗ OFF ＞
［LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
