SETTING THE ORIGIN (ORIGIN FOR PLOTTING)

The origin is the reference point that is used for plotting, cutting and creasing.

The plotting position can be moved by changing the location of the origin.

Coordinate of the origin are always (0,0). If the head is moved using the jog keys, the coordinates of the head as from

the origin are indicated on the LCD.

Normally, the origin is established at the lower left of the max. effective cutting area.

When executing the sample cut function, each piece of data is cut (crease, plotted) near the origin.

1. Invoke the LOCAL menu on the screen.

If the device is in the REMOTE mode, press the key to select

the LOCAL mode.

You may open any page of the menu from among pages 1 to 4.

2. Move the head using the jog keys to the point at which

the origin is to be set.

Coordinates of the tip of the tool currently selected are shown on the

screen.

Increase/decrease the speed and lift/lower the tip of the tool when

necessary.

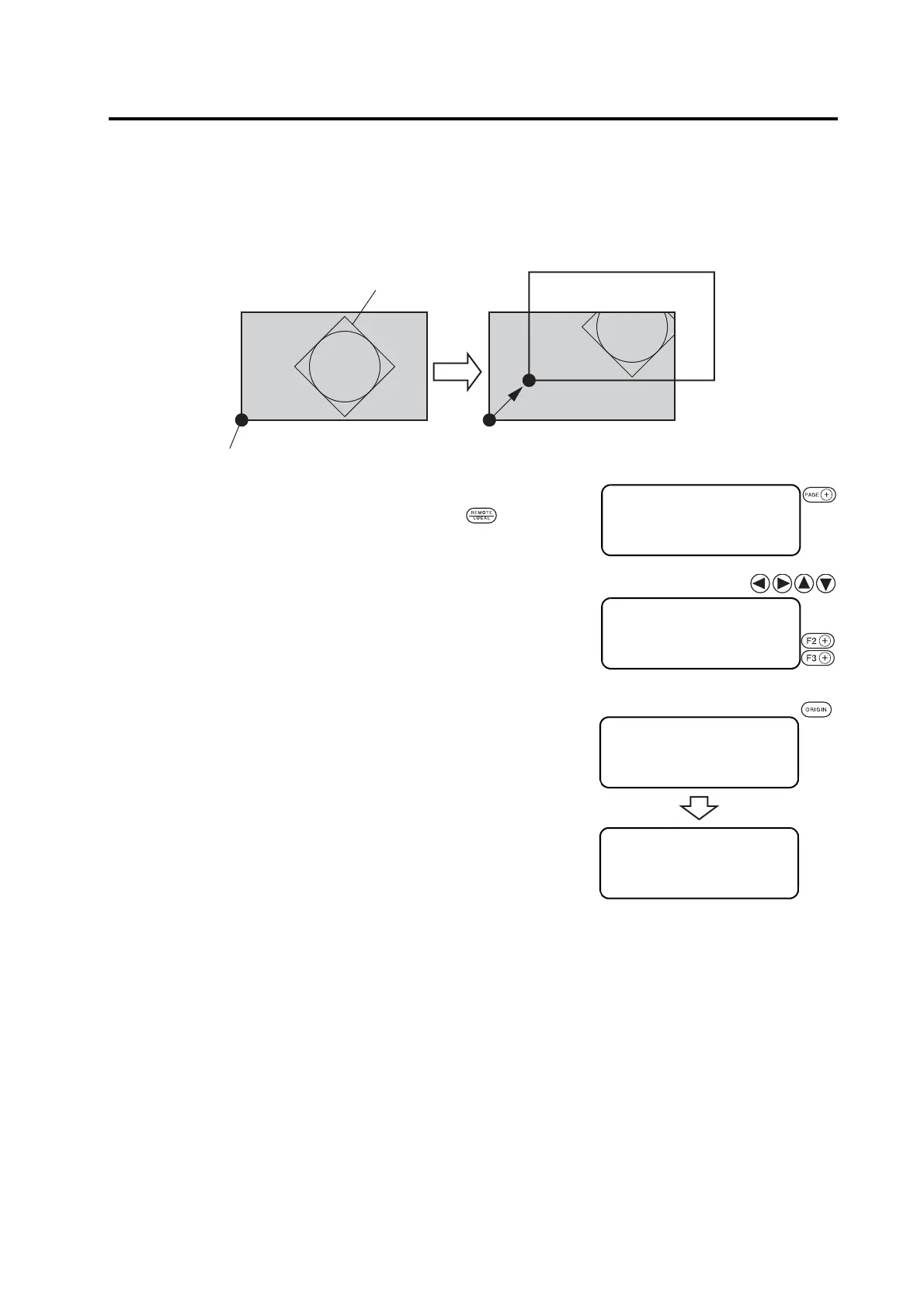

3. Set an origin to the desired point.

Data

Origin (origin for plotting)

Max. effective cutting area

［LOCAL］１／４

TOOL SELECT ――― ＞

CONDITION ――― ＞

TEST CUT ――― ＞

< MOVE > [ｍｍ]

　　３８２．６５６５．０

SPEED FAST ＞

PEN UP ＞
