MIMAKI CF2 Series - The Area Where Register Marks and Designs Can be Arranged

PRECAUTIONS IN PREPARING DATA WITH REGISTER MARK
5-5

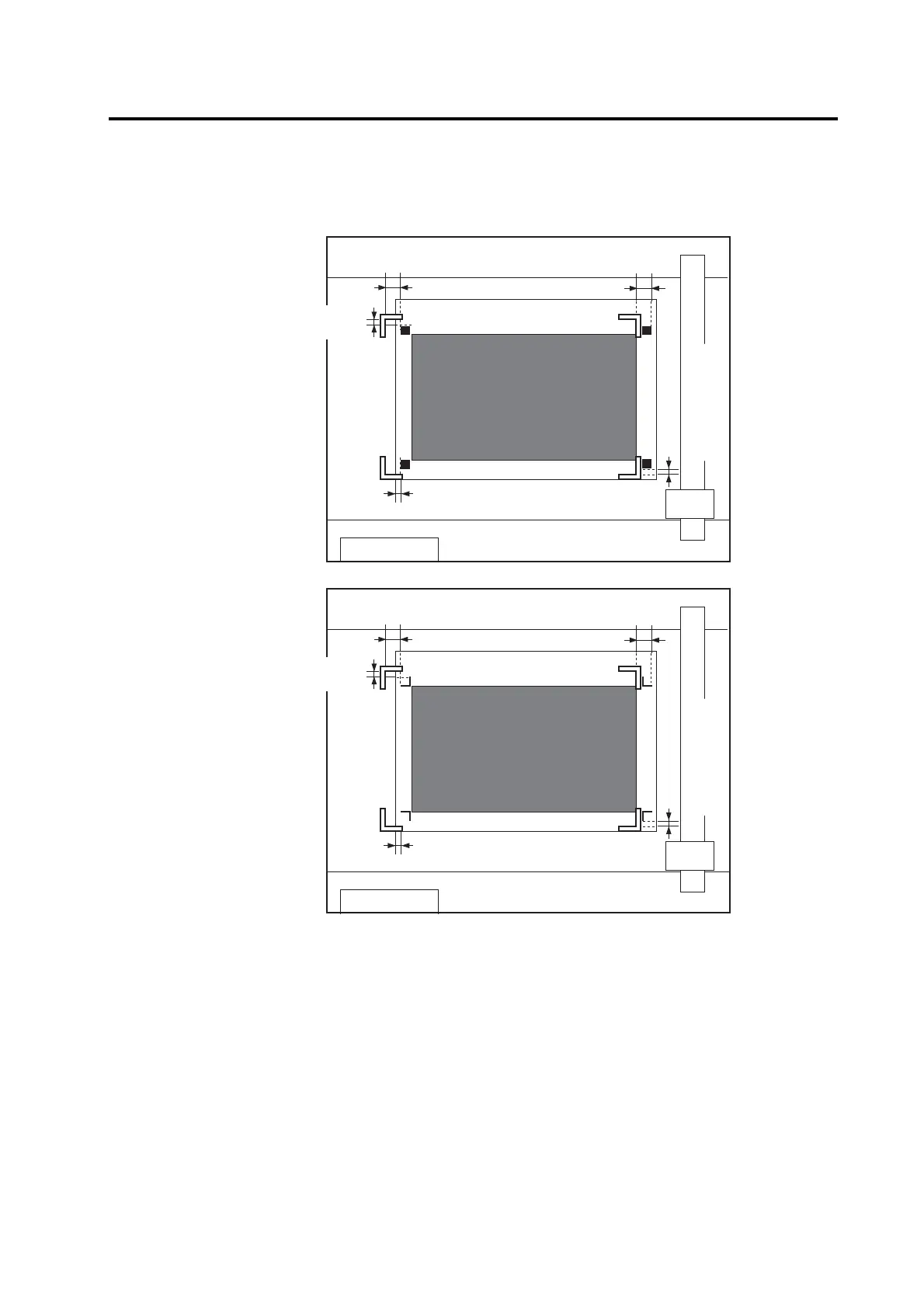

The area where register marks and designs can be arranged
The TP1 starting position must be 10mm or more away from the work left edge, and 30 mm or more away from the
Available cutting area.
TP1
TP2
Over30mmneededfrom
plottingpermittedarea
Within20mmneededfrom
plottingpermittedarea
Over10mmneededfrom
plottingpermittedarea
Over10mmneededfrom plottingpermittedarea Over10mmneededfrom plottingpermittedarea
Theareawhereplotting
ispermitted
Over10mmneededfrommedialeftedge
TP1
TP2
Over30mmneededfrom
plottingpermittedarea
Within20mmneededfrom
plottingpermittedarea
Over10mmneededfrom
plottingpermittedarea
Over10mmneededfrommedialeftedge
Over10mmneededfrom plottingpermittedarea Over10mmneededfrom plottingpermittedarea
Theareawhereplotting
ispermitted
