MIMAKI CF2 Series User Manual

1-8

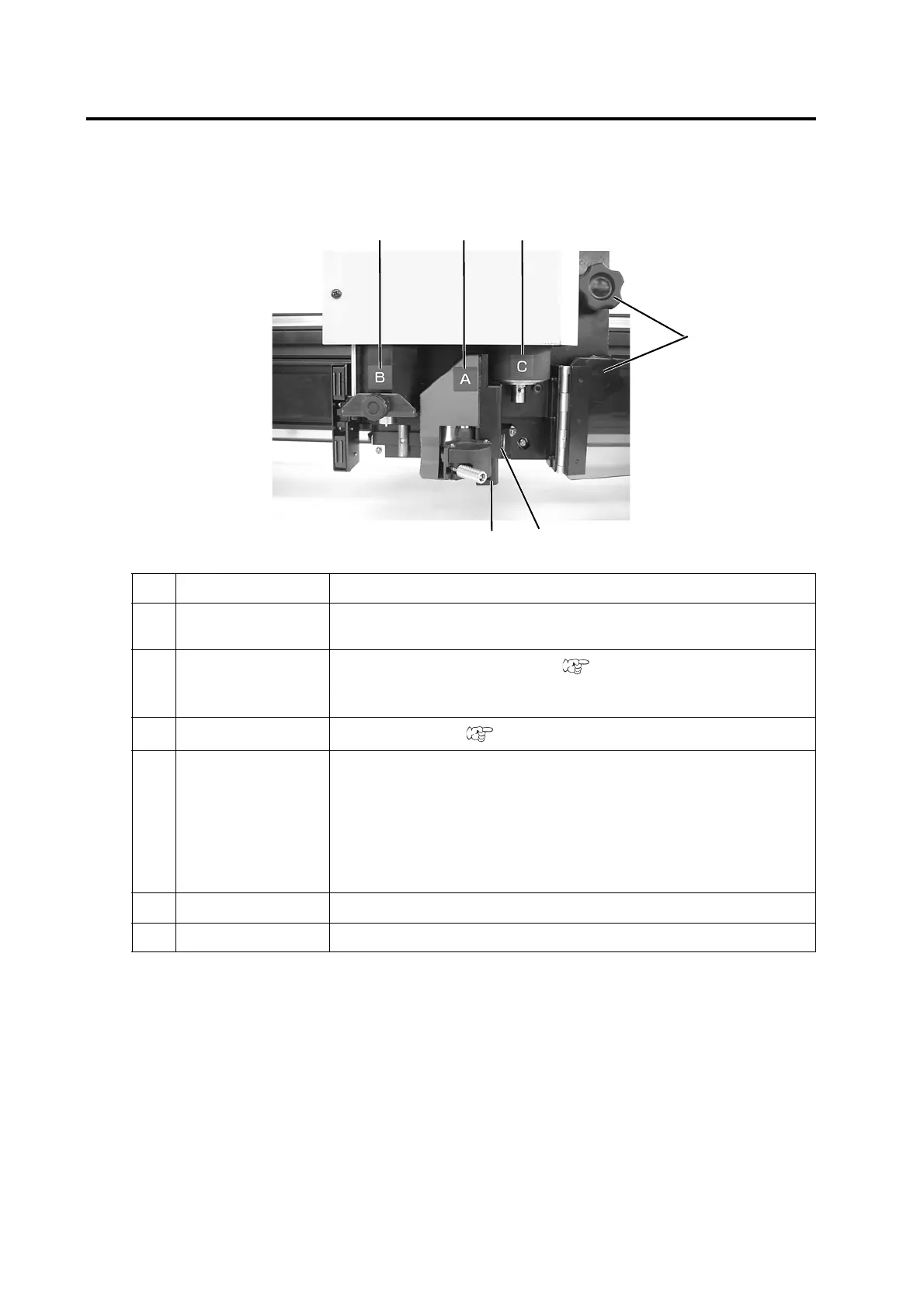

Head
Front face
Name Function
1 Head securing screw Used to fix the head on the Y bar. Loosen it when adjusting the height of the head or
removing the head.
2 Unit C
Attach a creasing roller or cutter holder P. 7-2
In the case of the RC head model, a cutting pressure of 1 kg to 5 kg is output.
In the case of the RT head model, a cutting pressure of 0.3 kg to 1.5 kg is output.
3 Unit A
A pen or swivel cutter P. 7-20 is attached to the head C.
4 Unit B Attach a reciprocal cutter holder.
RC head
• SPA-0113 (cutter holder 2N)
• SPA-0114 (cutter holder 07)
RT head
• SPA-0113 (cutter holder 2N)
• SPA-0099 (cutter holder 06)
Note: No holder may be provided depending on the model
5 Mark sensor Used to detect the register mark. (Mark sensor equipped model only)
6 Light pointer Light up in red when matching the position for register mark detection.
4
32
1
5
6
