2-12
Cutter holder 2N (for unit B)
Cutter holder 2N is a tangential cutter used for the unit B.
The unit B (reciprocal head) is used for non-reciprocal operation.( P. 2-23)Works of up to 2 mm thick can be cut.
The adjustment method is the same as that described above for cutter holders 4N and 10N. Please refer to that section.

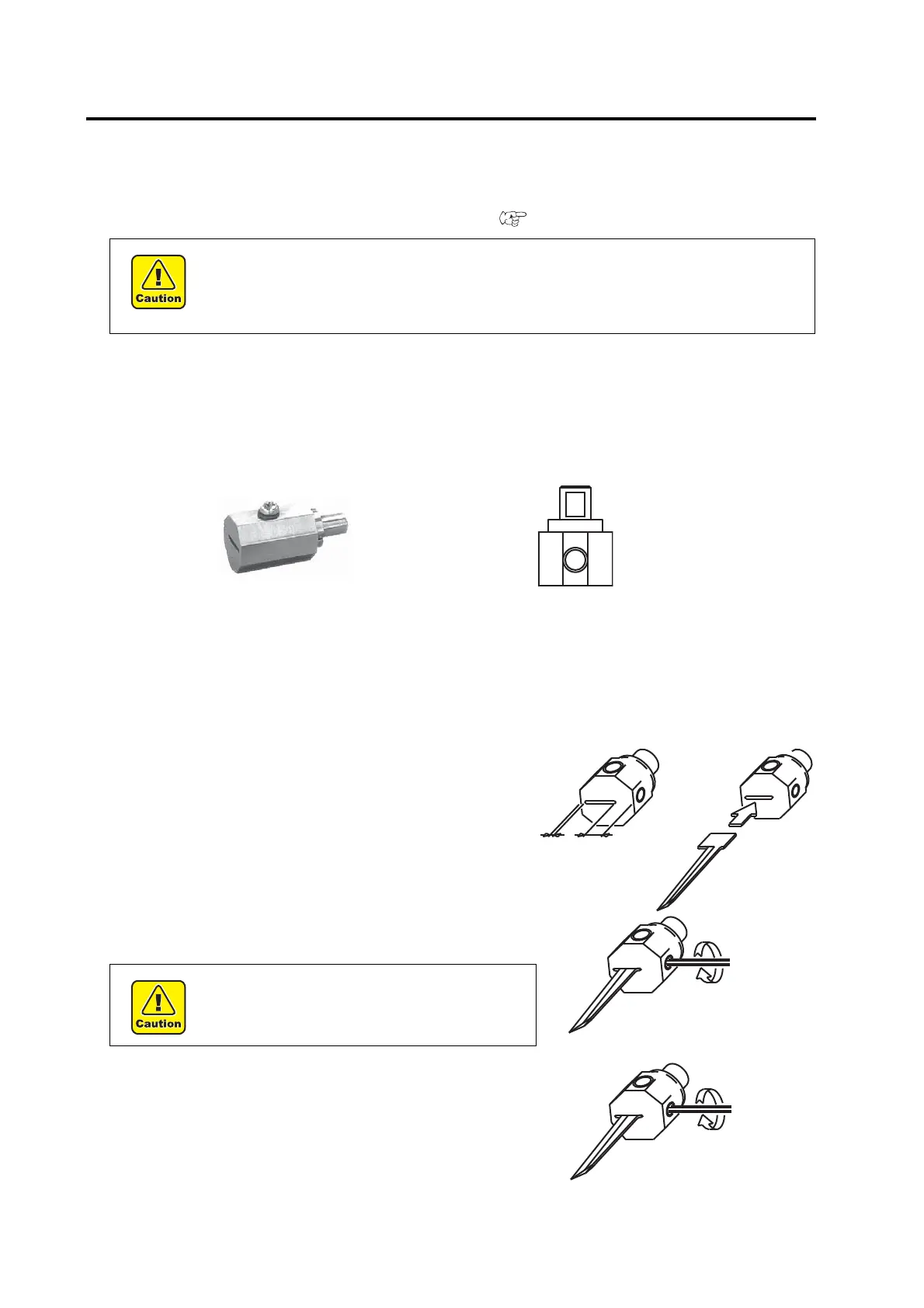

Reciprocal cutter holder (for unit B)
The reciprocal cutter holder is a cutter used for the unit B.
The reciprocal cutter holder comes in two types, according to the type of application.
The procedure for attaching the cutter holder 06 blade is described below.
1. Push in the blade all the way into the cutter holder.
Use the supplied pin set to be safe.
Pay attention to the blade orientation.
2. Using the supplied hex wrench (1.5mm), fix the
blade by tightening the fixing screw.
3. Using the supplied hex wrench (2.0mm), fix the blade by
tightening the fixing screw.
• The carbide blades (SPB-0045, 0046) and high-speed steel blades (SPB-0043,0044) are the
tools that can be used.
• When using a cutter holder 2N, be sure to set the “VIBRATION” of cut condition to “OFF”.
If “VIBRATION” is set to 1 to 5, cutter holder or this machine may be damaged.
• The amount of blade protrusion cannot be
adjusted.
For RC head unit B
Name: Cutter holder 07
Applicable blade: Carbide blade 17 (SPB-0065)
20-mm blade (SPB-0055)
For RT head unit B
Name: Cutter holder 06
Applicable blade: Carbide blade 2° (SPB-0064)
To Next Page
