ADJUSTING THE BLADE AND THE PEN
2-13

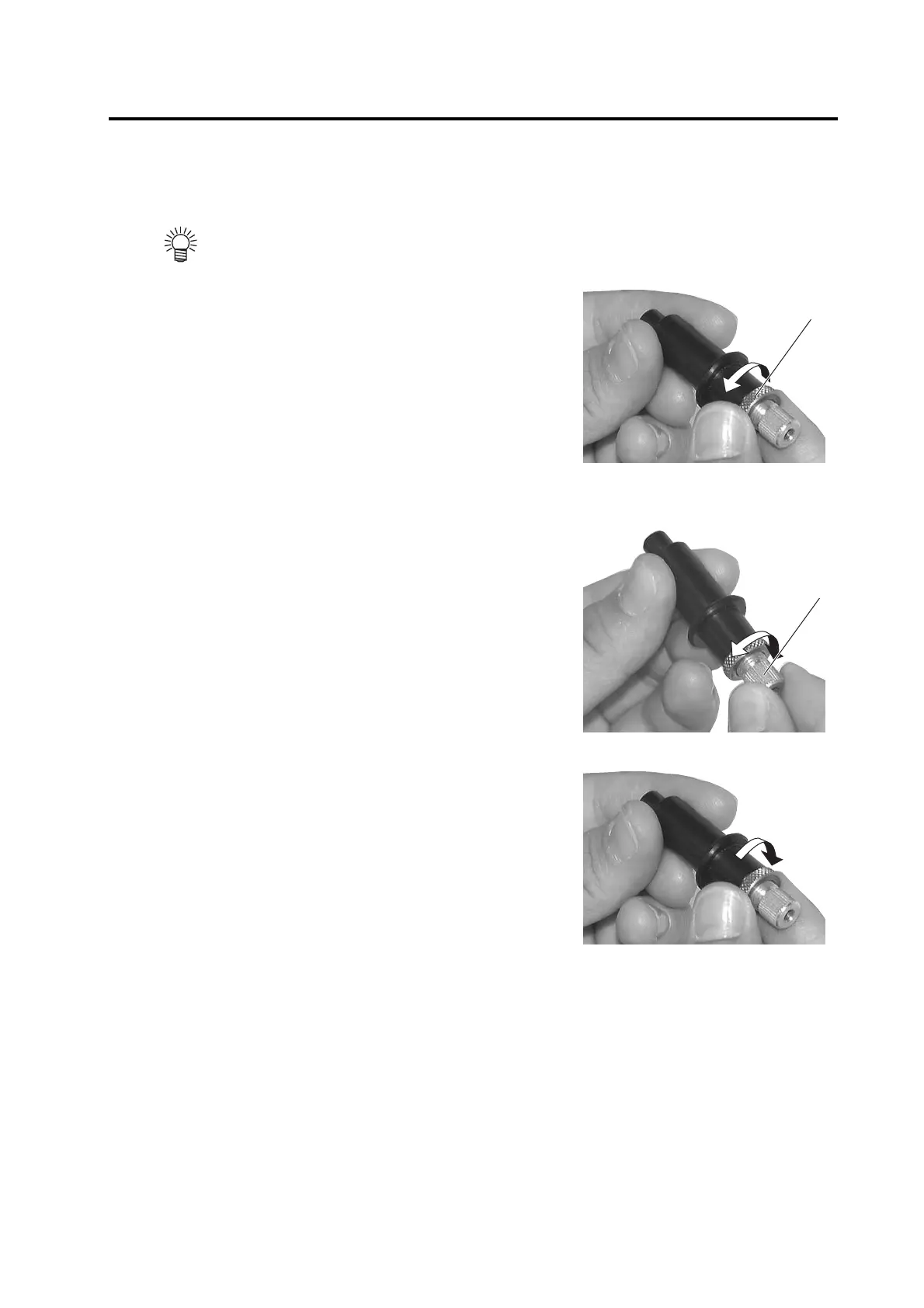

Swivel cutter
Follow the procedure described below when projecting the blade tip of the swivel cutter.
1. Loosen the locknut.
Loosen the locknut counterclockwise to loosen it.
2. Turning the adjusting knob, adjust the projecting
amount of the blade tip.
The blade tip goes inside the holder when the adjustment knob is
turned clockwise.
Projecting amount of the blade tip to be used as a guide:
Thickness of work + Thickness of base sheet/2
3. Taking care not to allow the adjusting knob to turn,
tighten the locknut.
Turn the locknut clockwise to tighten it
• Special blades for the optional swivel cutters are prepared in accordance with works. Please
contact your local dealer or MIMAKI office for details.
To Next Page
