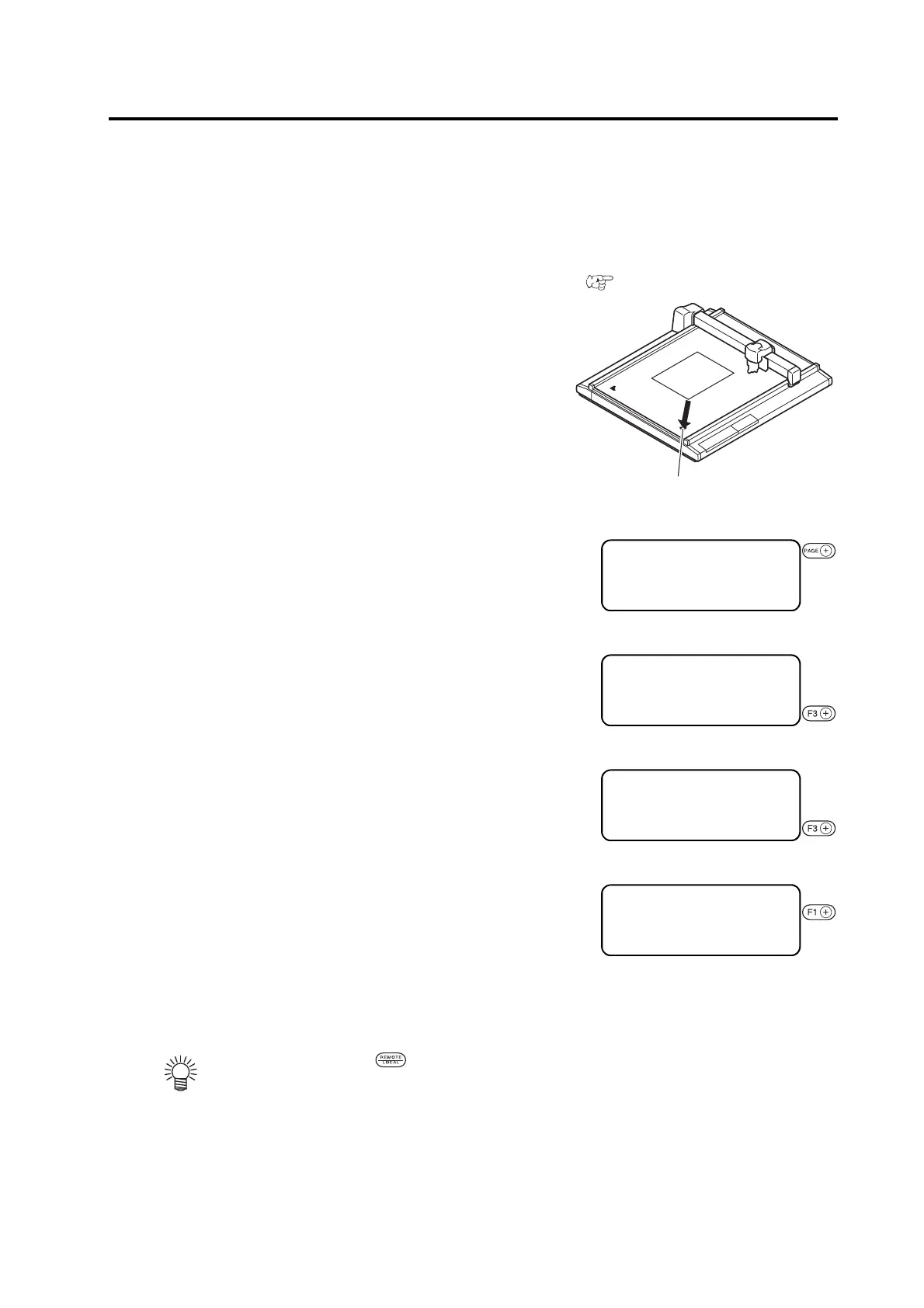

DUMP TEST [SELF TEST]
6-7
Execution of the parameter dump
Prepare a pen and a sheet of A3 size or larger paper.
If the size of paper is smaller than A3 or smaller, the device will plot a pattern beyond the paper.
When this setting is selected, the tool will be automatically changed to a pen. Be sure to install a pen to the head A in
prior.
1. Select a pen for the tool using the tool selecting function. ( P. 2-22)
2. Place a sheet of A3 or larger paper in landscape orien-
tation on the device while aligning the lower left cor-
ner of the paper to the origin marker label.
Be sure to align the lower left corner of the paper to the origin
marker label adhered to the lower left of the cutting panel.
3. Invoke the 3rd page of the LOCAL menu on the screen.
4. Select the [SELF TEST].
5. Invoke the fifth page of the self-test screen on the LCD.
6. Select the [PARAMETER DUMP].
7. Execute the [PARAMETER DUMP].
The head travels to the upper left of the paper to start plotting the parameters.
To abort, press the key to temporarily interrupt the operation, then execute the data clear func-
tion.
Origin marker label
[LOCAL]
TOOL SELECT ―――
CONDITION ―――
TEST CUT ―――
[LOCAL]
INTERFACE ―――
MODE SET ―――
SELF TEST ―――
< SELF SET >
PATTN CUT 1 ―――
PATTN CUT 2 ―――
DATA DUMP ――
< SELF SET >
PARAMTR DUMP ―――
