TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT]
3-9
Adjustment of the offset
Offset amount of the cut pattern as from the plotted pattern is adjusted in terms of the X- and Y-aes.

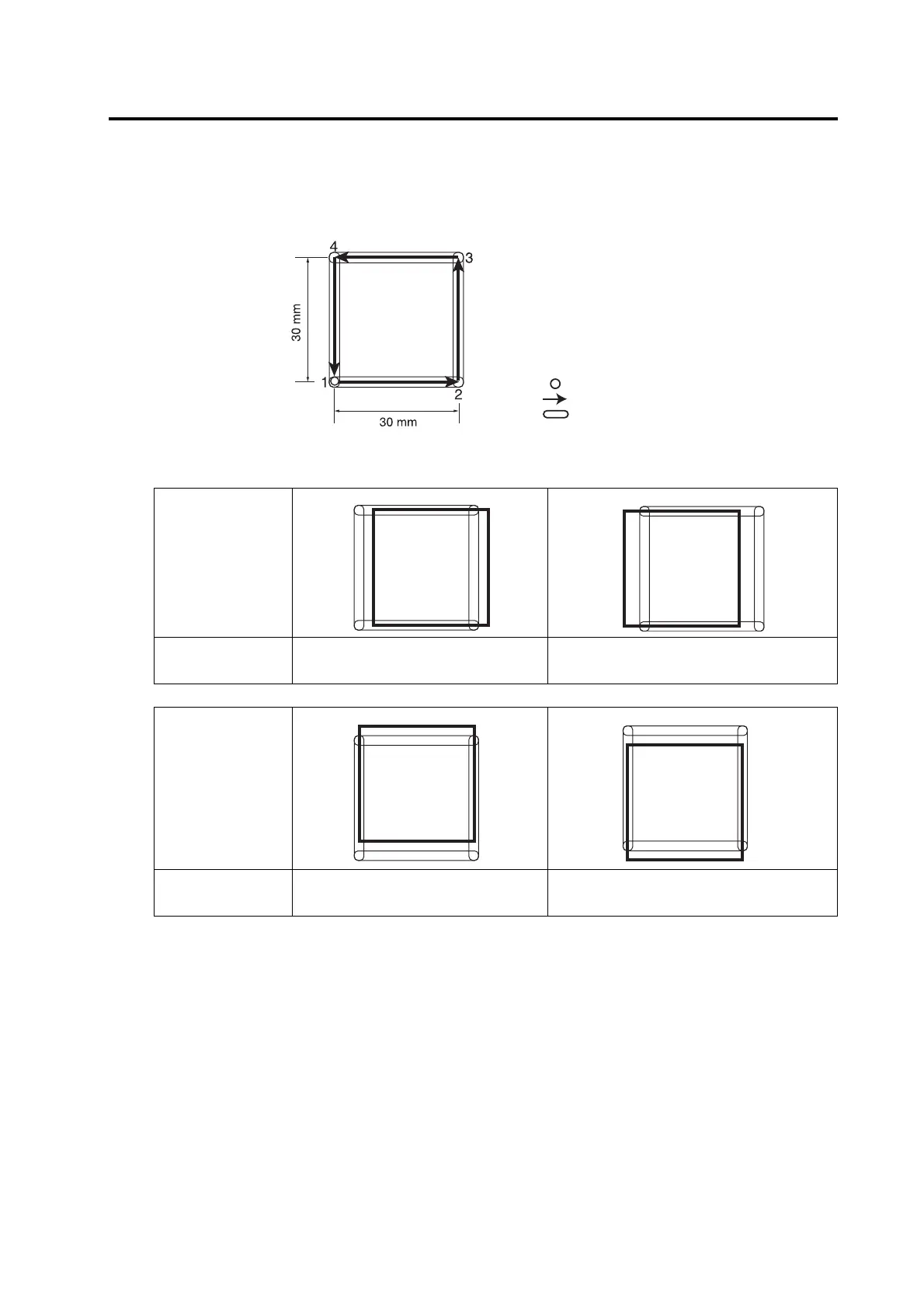

One pattern is used for adjustment. The illustration below indicates the size of the patterns and the cutting order.
How to adjust:
Follow the adjusting procedure given below.
Sample pattern
How to adjust
If the cutter deviates to the right, increase
the X value for the cutter.
If the cutter deviates to the left, decrease the X
value for the cutter.
Sample pattern
How to adjust
If the cutter deviates upward, increase the
Y value for the cutter.
If the cutter deviates downward, decrease the Y
value for the cutter.
:Pointfromwhichcuttingstarts
:Directionofcutting
:Pen
