ATTACHING THE TOOLS
2-15

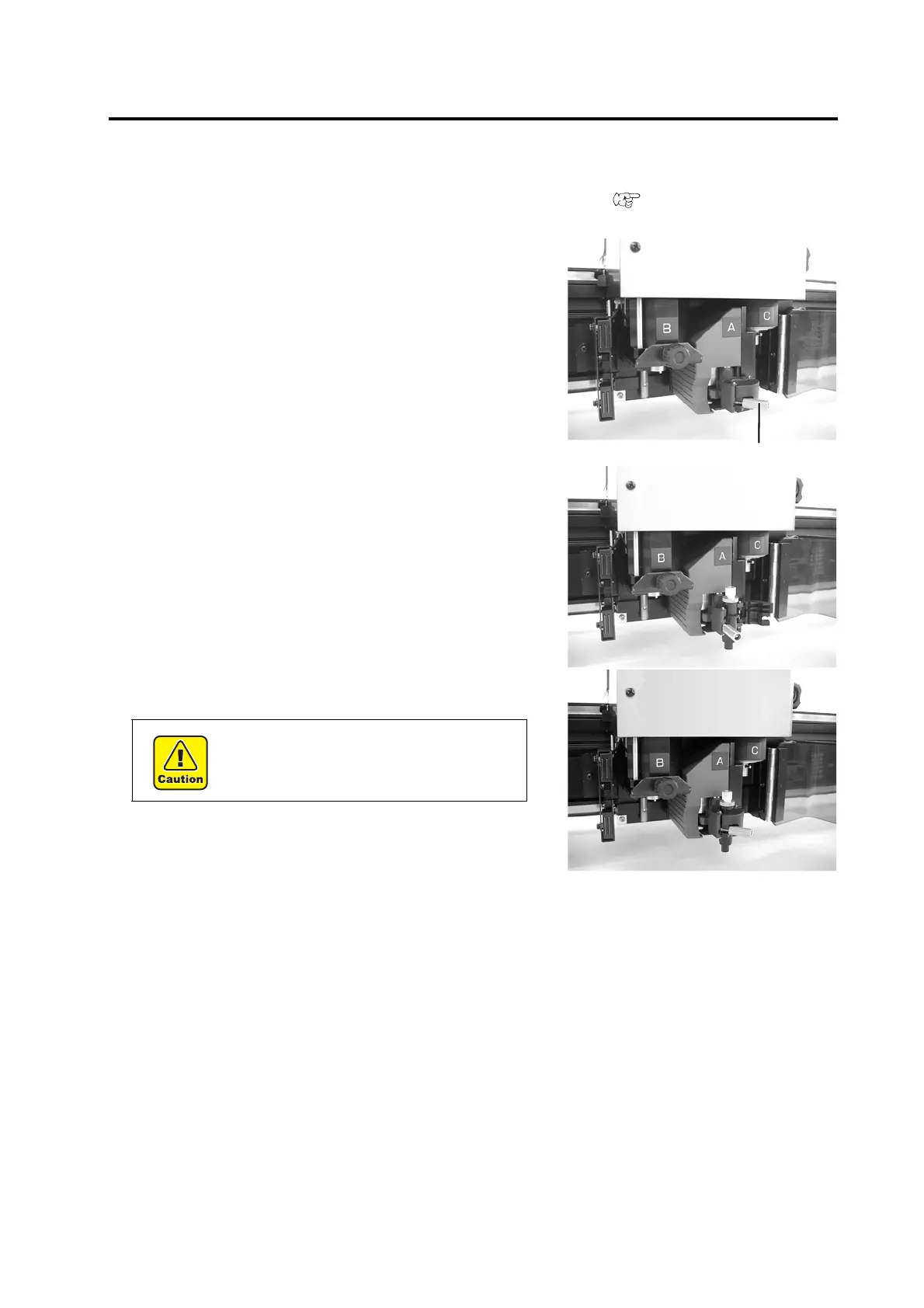

Attaching the pen and the swivel blade
If the head is in the lower position and a tool cannot be installed, lift the head. （ P. 2-19）
1. Loosen the screw in head unit A.
Turn the screw A counterclockwise to loosen it.
Open the holder right and left.
2. Insert the eccentric cutter or plotter pen in unit unit
A.
Fit the collar of the pen or the swivel cutter in the groove in the
holder.
3. Tighten the screw in head unit A.
Close the holders and turn the screw clockwise.
• Securely fix the cutter holder.If the screw
is securely tightened, normal product
quality cannot be obtained.
