MIMAKI CF2 Series - Size of the Register Mark

5-4

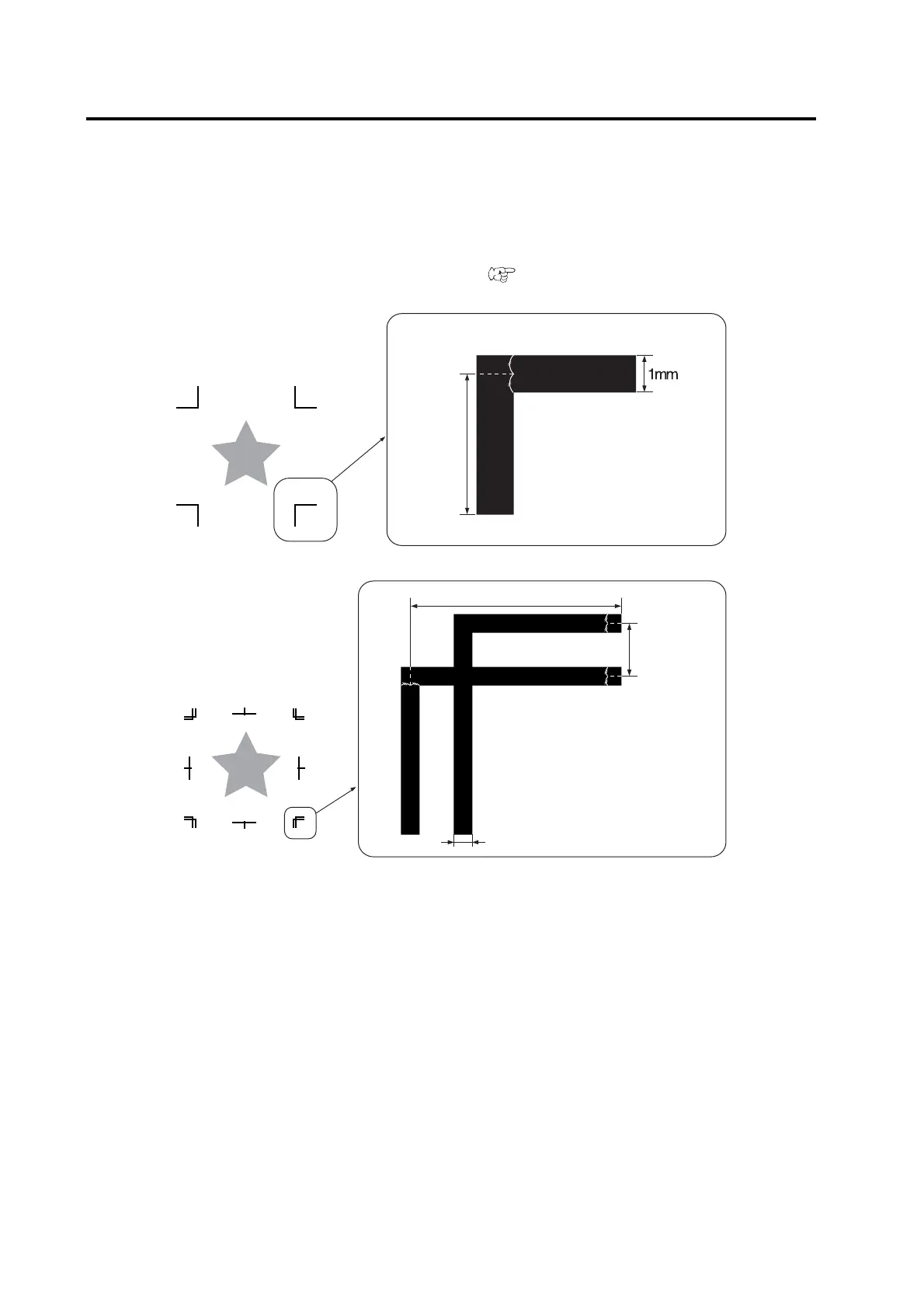

Size of the register mark
Each side of the single register mark must be 5 - 30mm.
Each side of the double register mark must be 10 - 30mm.
The line width of mark shall be equal to or more than 0.2 mm and equal to or less than 0.5 mm.
Refer to [The size of, and the distance between, register marks]( P. 5-8)for the relationship between the data and
the length of one sided of a register mark.
Single
Double
5to30mm
10to30mm
3to10mm
0.2to0.5mm
