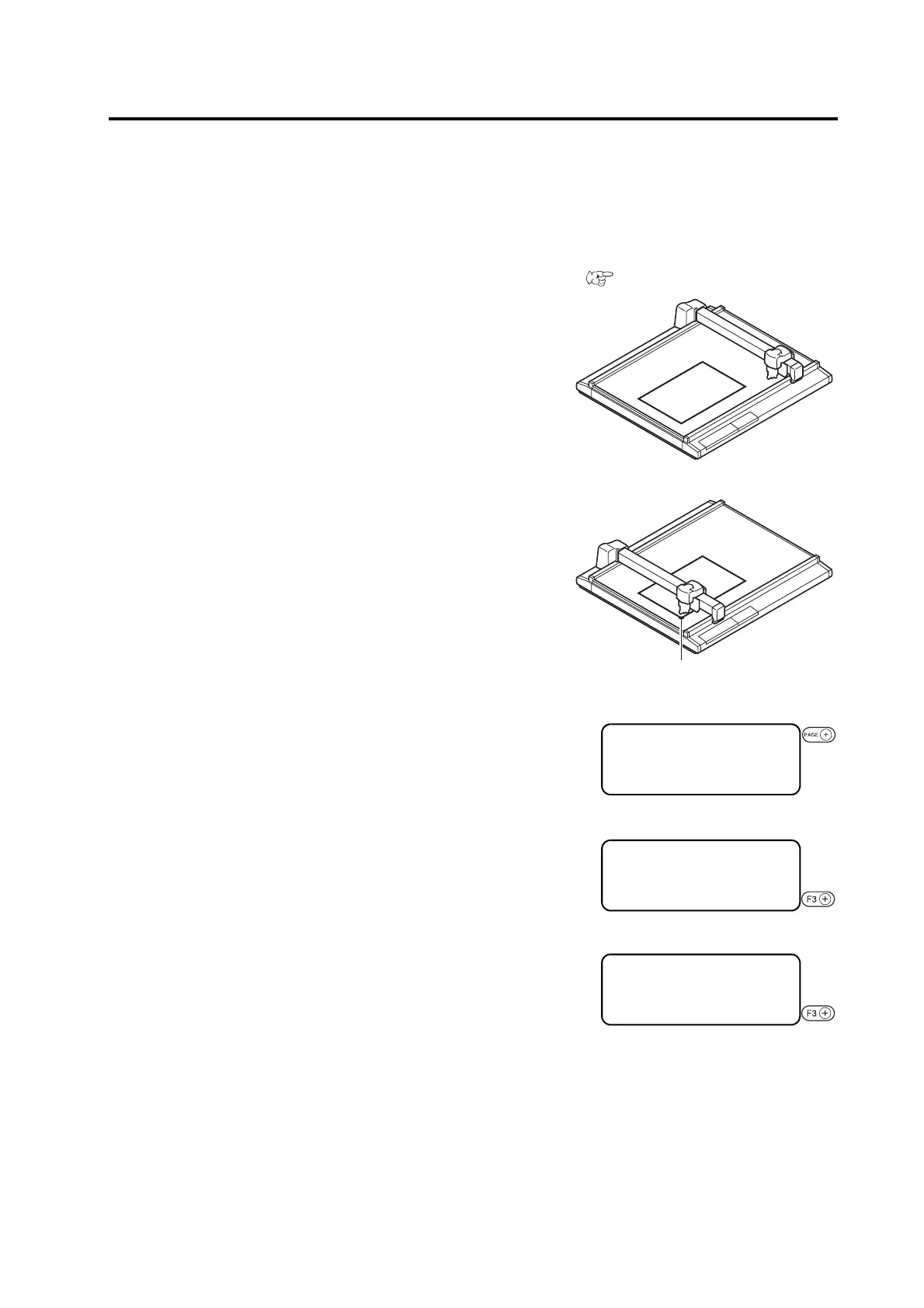

DUMP TEST [SELF TEST]
Executing the data dump
Prepare a pen and a sheet of A3 size or larger paper.If the size of paper is smaller than A3 or smaller, the device will
plot a pattern beyond the paper.
When this setting is selected, the tool will be automatically changed to a pen. Be sure to install a pen to the head A in
prior.
1. Select a pen for the tool using the tool selecting function.( P. 2-22)
2. Place a sheet of A3 or larger paper in landscape orien-
tation on the device.
3. Establish an origin at the left corner of the paper.
4. Invoke the 3rd page of the LOCAL menu on the screen.
5. Select the [SELF TEST].
6. Select the [DATA DUMP].
Origin
[LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
[LOCAL］ ３ ／ ４
INTERFACE ――― ＞
MODE SET ――― ＞
SELF TEST ――― ＞
< SELF SET > １ ／ ５
PATTN CUT 1 ――― ＞
PATTN CUT 2 ――― ＞
DATA DUMP ――― ＞
