1-10

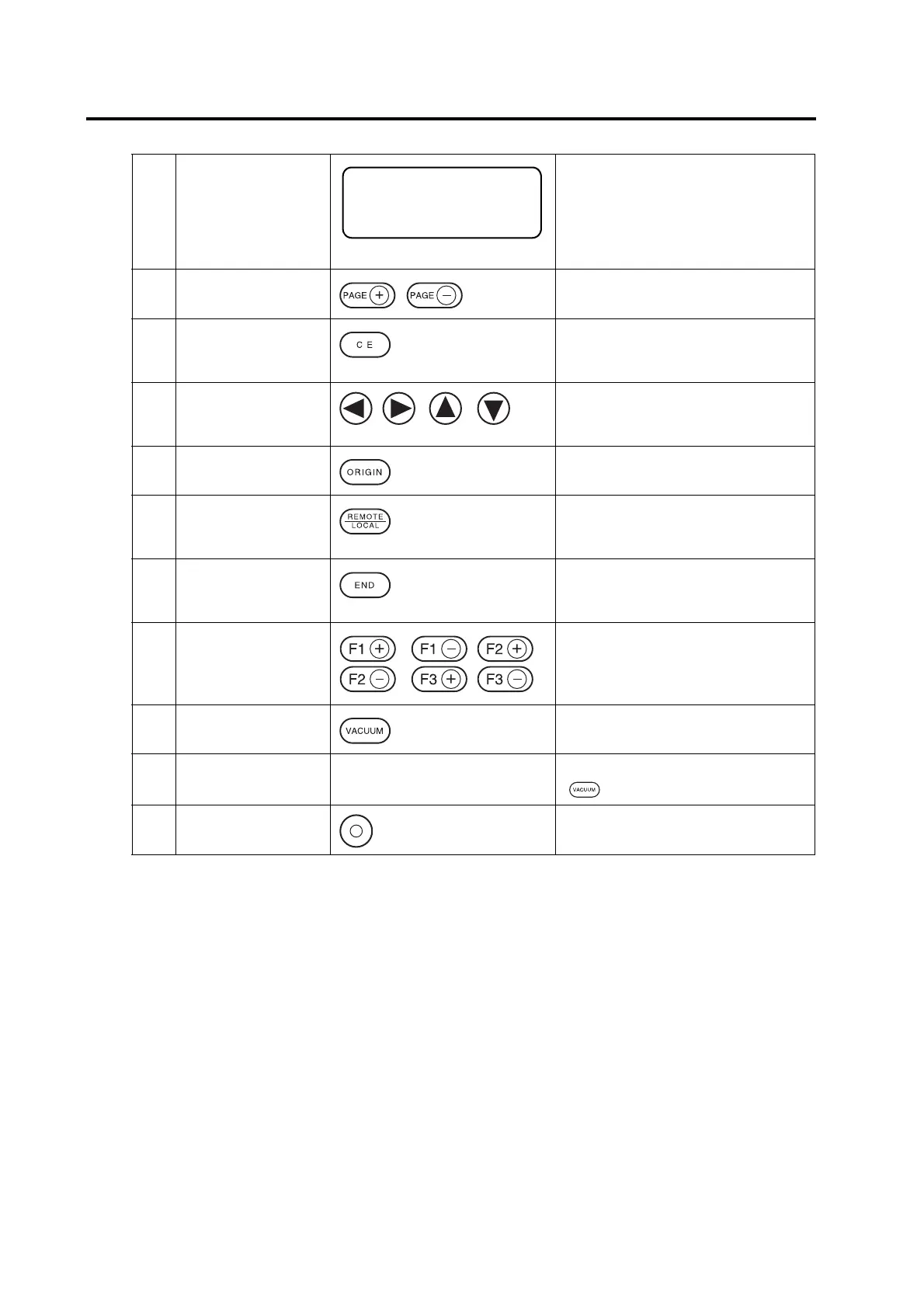

3 LCD LCD indicates states of the device and
specified menus on its 16-column and 4-
line cells.
In the case where an indication on LCD is
referred to in the text, it is shown with
bracketed as [TOOL SELECT].
4 PAGE key Used to advance or return the page on the
LCD.
5 CE key Used to cancel the performance (data clear,
copy, etc.) or return to the previous hierar-
chy without entering an input value.
6 JOG key Used to scroll the head in the direction of
the arrow while local menus (see pages P.
2-2) are displayed.
7 ORIGIN key Used to set a plotting origin (ORIGIN) at
the top of the cutting area of the device.
8 REMOTE/LOCAL key Used to change over the operation mode of
the device between the remote and the
local modes.
9 END key Used to enter an input value.
When local menu (1/4 to 4/4 page) is dis-
played, move a head to the allow direction.
10 FUNCTION key Used to select a function from the local
menu and input a set value.
11 VACUUM key Used to turn on/off the blower for pneu-
matically picking a work.
12 VACUUM lamp Lights up (in green) when pressing the
key to actuate the blower.
13 POWER OFF switch Used to turn of the power to the device.
［LOCAL］ １ ／ ４
TOOL SELECT ――― ＞
CONDITION ――― ＞
TEST CUT ――― ＞
To Next Page
